Description

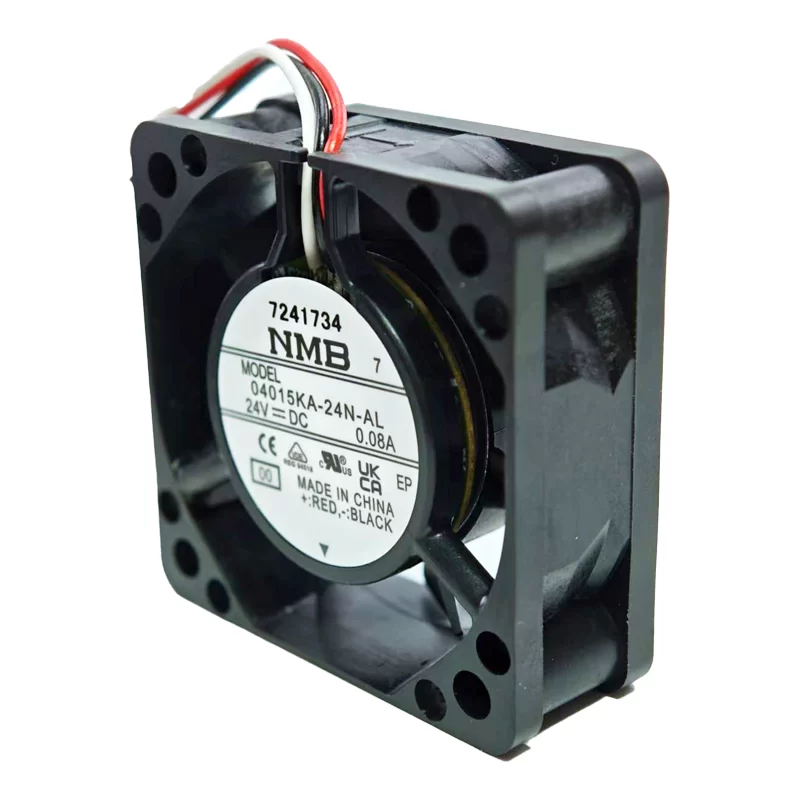

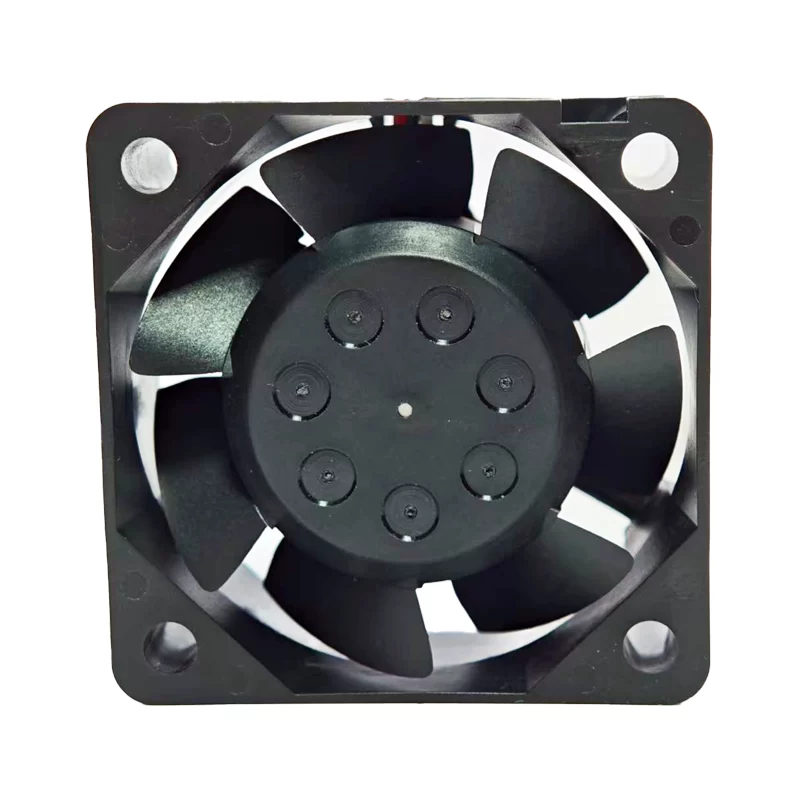

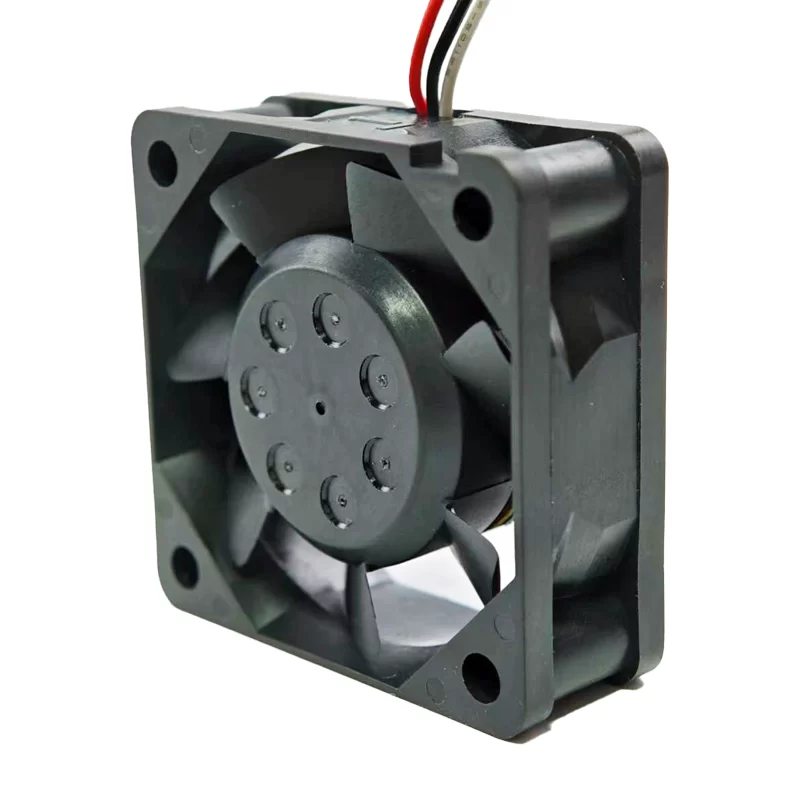

The NMB 04015KA-24N-AL is a high-performance 24V DC axial fan, measuring 40mm x 40mm x 15mm, manufactured by NMB Technologies Corporation. This fan is engineered for powerful and effective cooling in compact electronic systems that demand substantial airflow and static pressure. Featuring durable ball bearings, it boasts an exceptionally long operational lifespan of 100,000 hours at 25°C. Drawing 0.08A of current, it consumes 1.92W of power. This fan operates at a high speed of 8500 RPM, delivering 9.0 CFM of airflow and generating 0.30 inches of H2O static pressure, with a moderate 36 dBA noise level. Equipped with 3-wire leads that include a locked rotor sensor for monitoring, the NMB 04015KA-24N-AL is an excellent choice for cooling components in servers, networking equipment, industrial controls, and other high-density electronic enclosures that require robust and reliable thermal management in a compact form factor.
NMB brand new original authentic 04015KA-24N-AL 24V 0.08A 4015 inverter fan
Model: 04015KA-24N-AL
Manufacturer: NMB Technologies Corporation
Type: DC Axial Fan
Dimensions: 40mm x 40mm x 15mm
Nominal Voltage: 24V DC
Operating Voltage Range: 22V to 25.2V DC
Current: 0.08A
Power Consumption: 1.92W
Speed: 8500 RPM
Airflow: 9.0 CFM
Static Pressure: 0.30 In H2O
Noise Level: 36 dBA
Bearing Type: Ball Bearing
Life Expectancy: 100,000 Hours (at 25°C, L10)
Termination: 3-wire leads
Frame Material: Plastic
Impeller Material: Plastic
Features: Brushless DC motor, polarity protected, Locked Rotor Sensor.
