Description

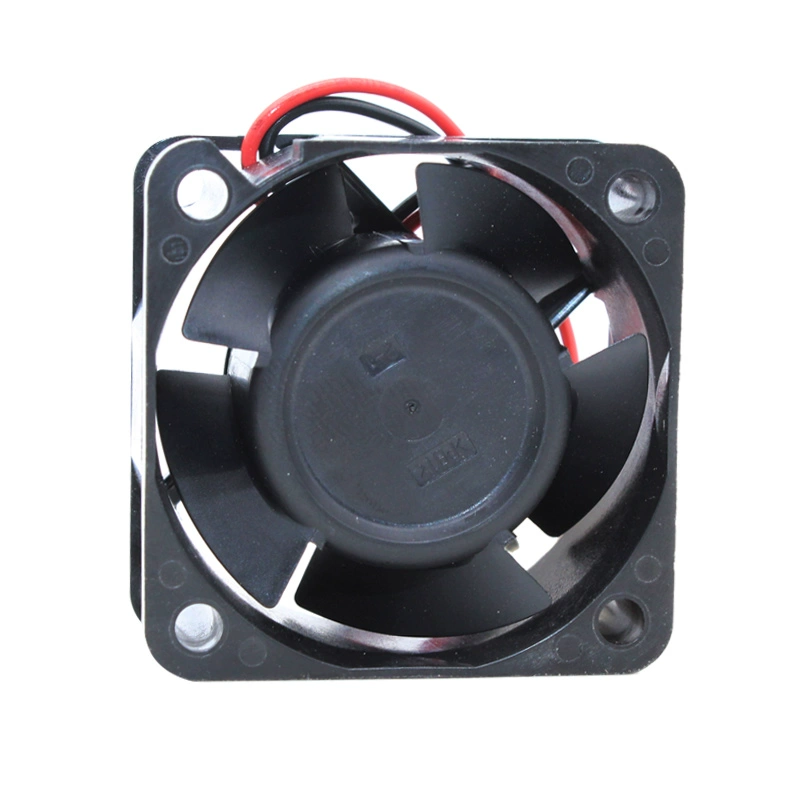

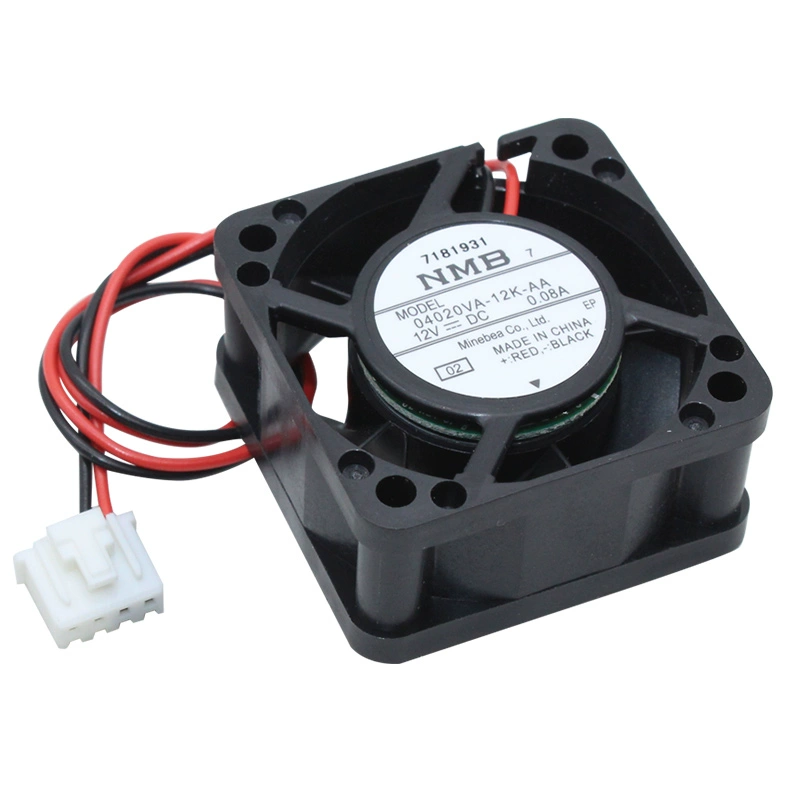

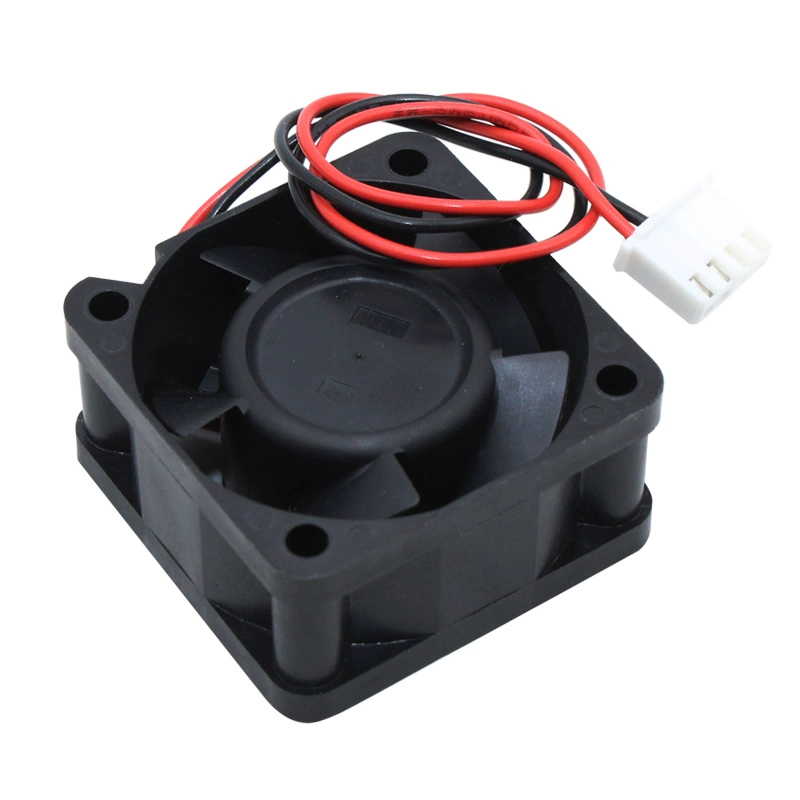

The NMB 04020VA-12K-AA-02 is a compact 12V DC axial cooling fan from NMB Technologies Corporation, measuring 40mm x 40mm x 20mm. Operating at a rated current of 0.08A (0.96W), this fan is designed for efficient cooling in various electronic devices. It achieves a speed of 7000 RPM, delivering 8.4 CFM of airflow and a static pressure of 0.23 inch-H2O, while maintaining a moderate noise level of 30.0 dBA. Equipped with durable ball bearings, it ensures a long operational life of 40,000 hours at 60°C. The fan utilizes 2-wire leads, providing PWM speed control for precise airflow management, along with auto-restart and polarity protection, making it a suitable choice for applications where reliable cooling in a small form factor is essential.
Model Number: 04020VA-12K-AA-02
Manufacturer: NMB Technologies Corporation
Type: DC Axial Cooling Fan
Dimensions: 40mm x 40mm x 20mm
Rated Voltage: 12V DC
Rated Current: 0.08A
Rated Power: 0.96W
Speed: 7000 RPM
Airflow: 8.4 CFM / 0.24 m³/min
Static Pressure: 0.23 inch-H2O / 57.3 Pa
Noise Level: 30.0 dBA
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 40,000 hours at 60°C (L10)
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
