Description

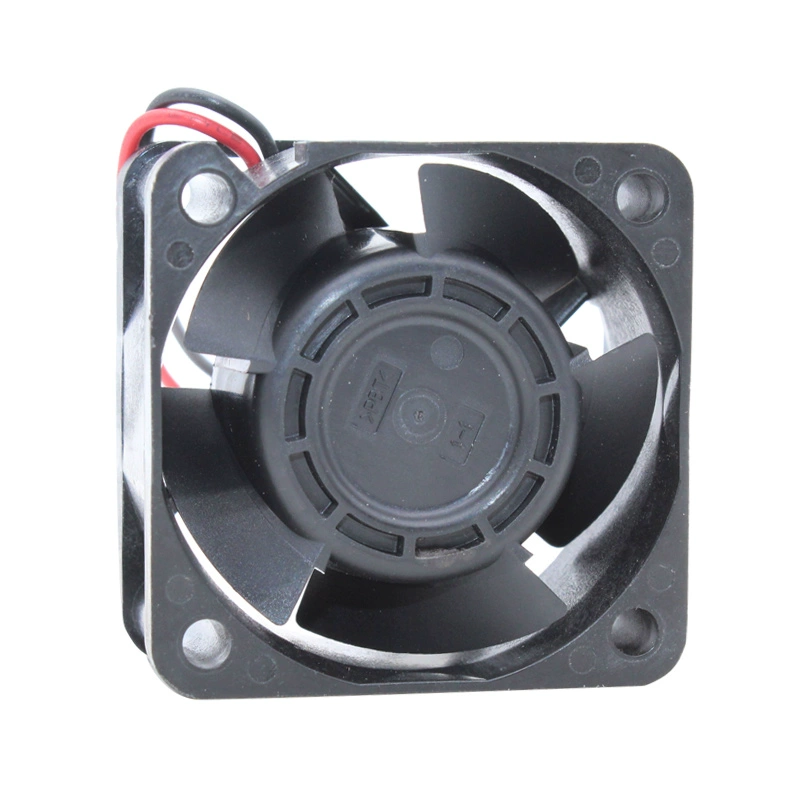

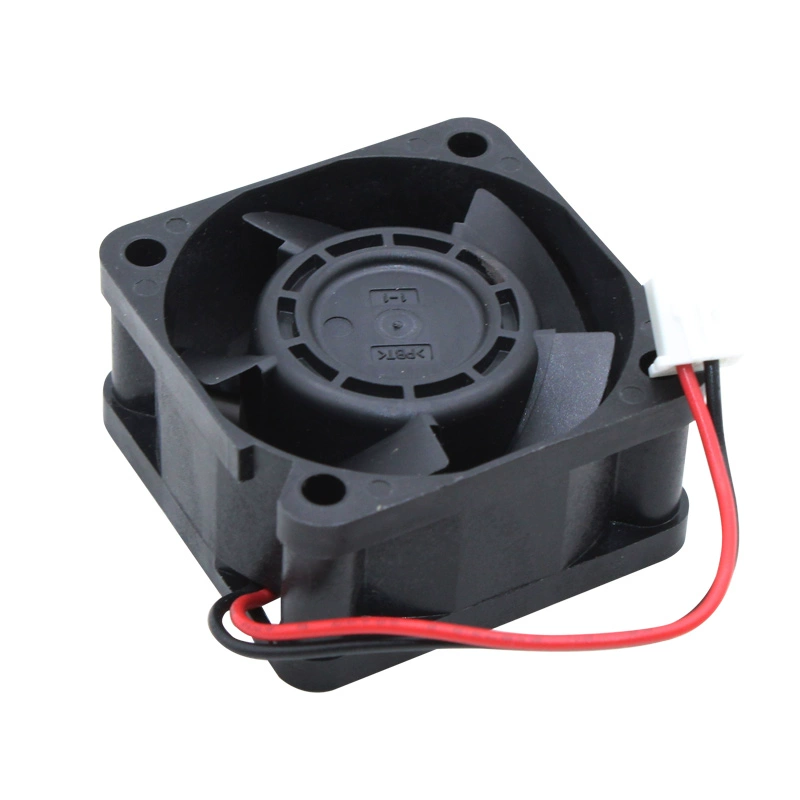

The NMB 04020VA-12M-BA-01 is a powerful 12V DC axial cooling fan measuring 40mm x 40mm x 20mm. Operating at a rated current of 0.11A (1.32W), this unit is engineered for effective thermal management in compact and high-density electronic equipment. It achieves a high rotational speed of 7000 RPM, delivering 10.0 CFM of airflow with a static pressure of 0.264 inch-H2O (65.7 Pa). Its noise output is 30.0 dBA. The fan is equipped with ball bearings for a long operational life of 70,000 hours at 40°C. Connectivity is via 2-wire leads. Integrated features include auto-restart and polarity protection, ensuring robust performance in critical cooling applications.
Model Number: 04020VA-12M-BA-01
Manufacturer: NMB Technologies Corporation
Type: DC Axial Cooling Fan
Dimensions: 40mm x 40mm x 20mm
Rated Voltage: 12V DC
Operating Voltage: 6.0V to 13.2V DC
Rated Current: 0.11A
Rated Power: 1.32W
Speed: 7000 RPM
Airflow: 10.0 CFM / 0.28 m³/min
Static Pressure: 0.264 inch-H2O / 65.7 Pa
Noise Level: 30.0 dBA
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 70,000 hours at 40°C
Operating Temperature: -10°C to 60°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Polarity Protection
