Description

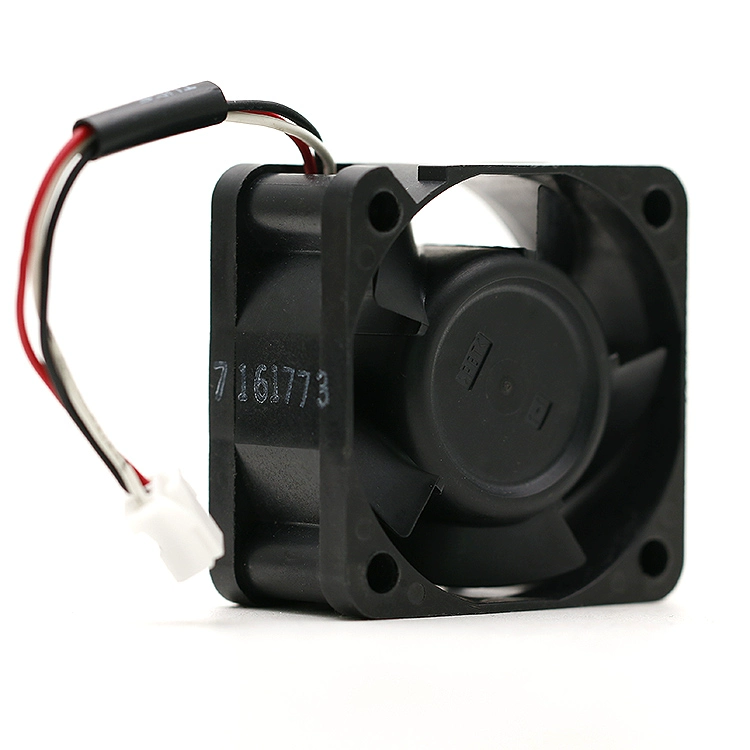

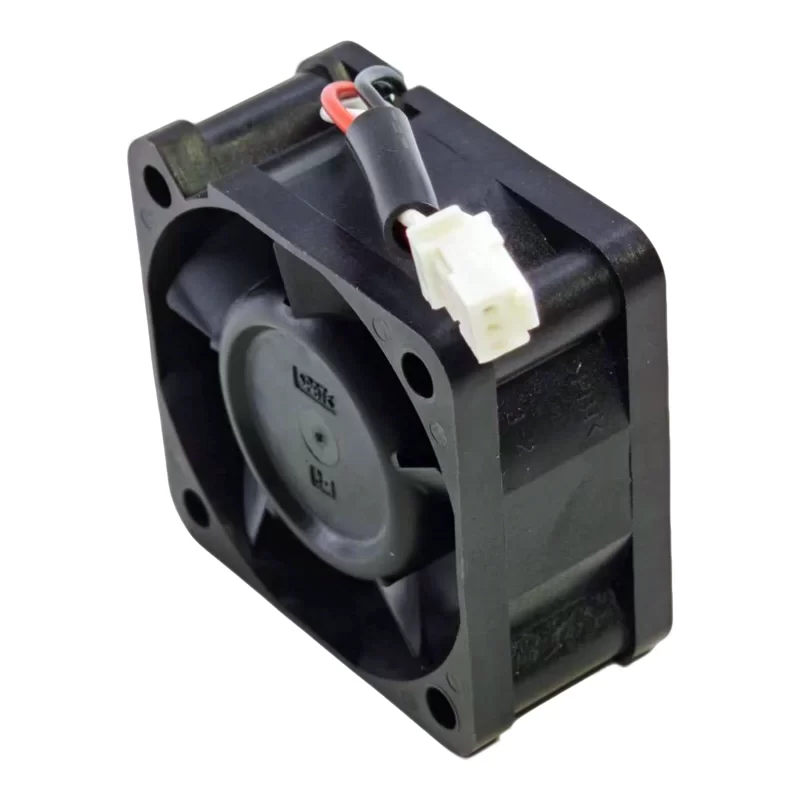

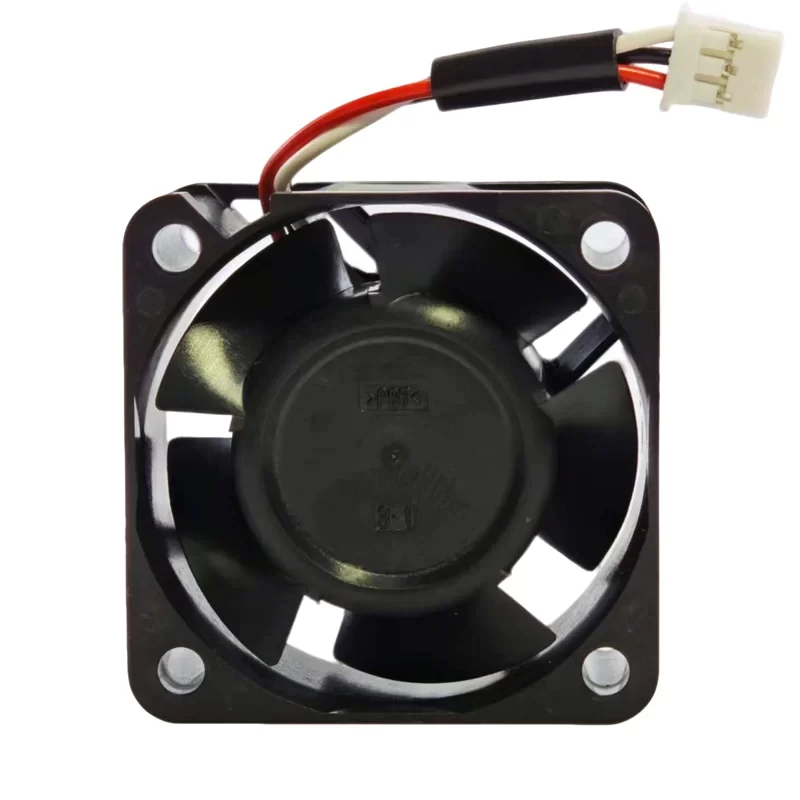

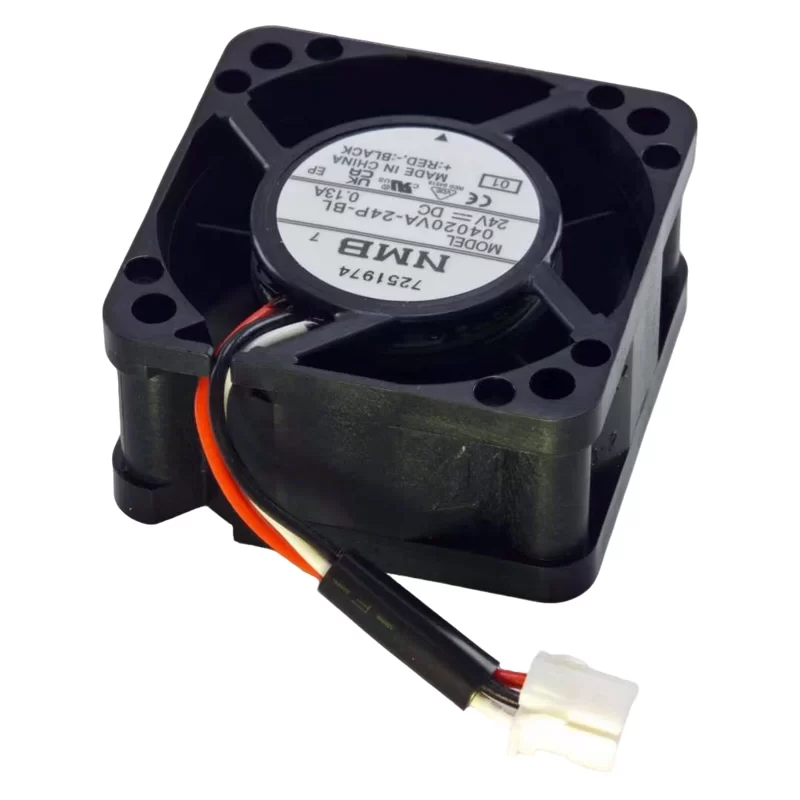

The NMB 04020VA-24P-BL-01 is a compact, high-speed 24V DC axial cooling fan. Measuring 40mm x 40mm x 20mm, this fan is designed for efficient cooling in densely packed electronic equipment, industrial controls, and other applications where space is limited but powerful airflow is critical. It operates at a rated voltage of 24V DC and draws a current of 0.13A, resulting in a power consumption of 3.12W. This allows it to achieve a high rotational speed of 9500 RPM, delivering an airflow of 11.3 CFM and a static pressure of 0.400 inch-H2O. Its noise level is 34.6 dBA. The fan features durable ball bearings for an extended operational lifespan of 50,000 hours at 25°C. It typically comes with a 3-pin connector for power and general fan status, and includes auto-restart and polarity protection.
NMB 04020VA-24P-BL-01 Fan Parameters
Model Number: 04020VA-24P-BL-01
Manufacturer: NMB Technologies Corporation
Series: VA Series
Type: DC Axial Cooling Fan
Dimensions: 40mm x 40mm x 20mm
Rated Voltage: 24V DC
Operating Voltage Range: 14V to 26.4V DC
Rated Current: 0.13A
Rated Power: 3.12W
Speed: 9500 RPM
Airflow: 11.3 CFM (0.32 m³/min)
Static Pressure: 0.400 inch-H2O (99.6 Pa)
Noise Level: 34.6 dBA
Connector: 3-Pin
Bearing Type: Ball Bearing
Life Expectancy: 50,000 hours at 25°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Polarity Protection
Operating Temperature: -10°C to +70°C
Weight: 40g
Approvals/Certifications: UL, CSA, CE, RoHS Compliant
