Description

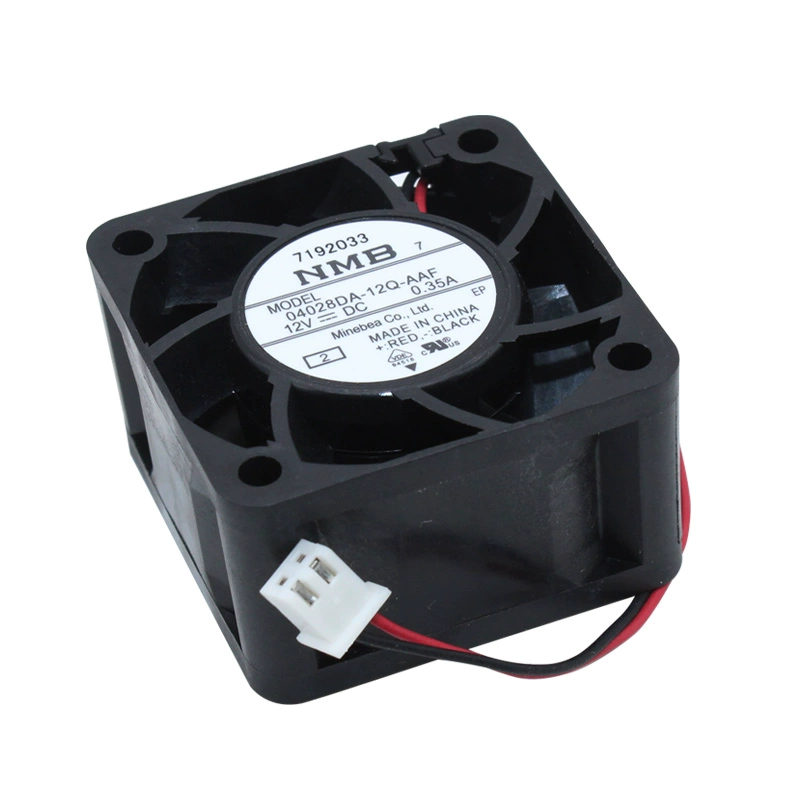

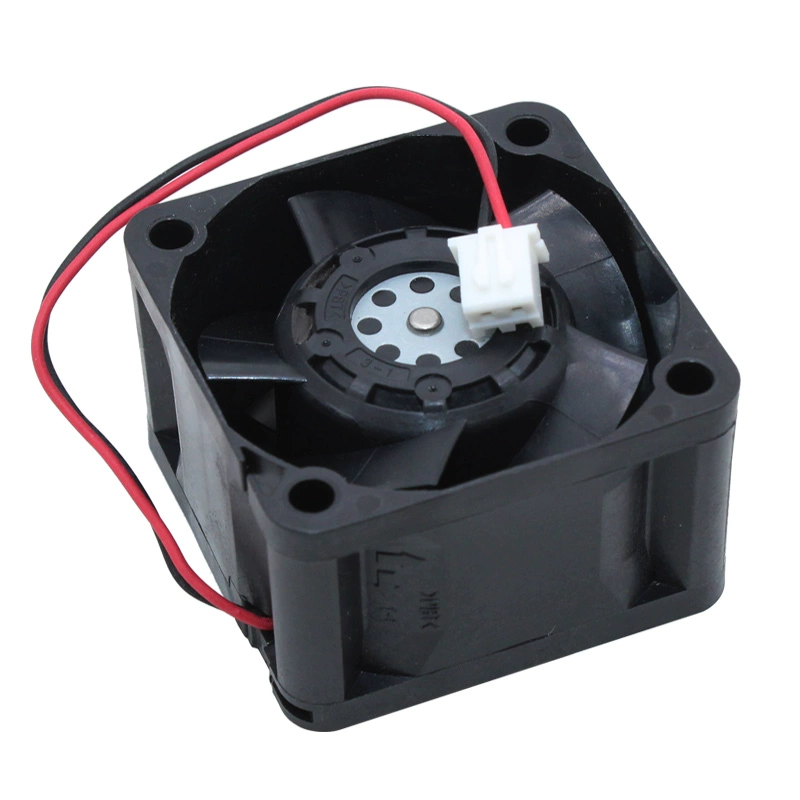

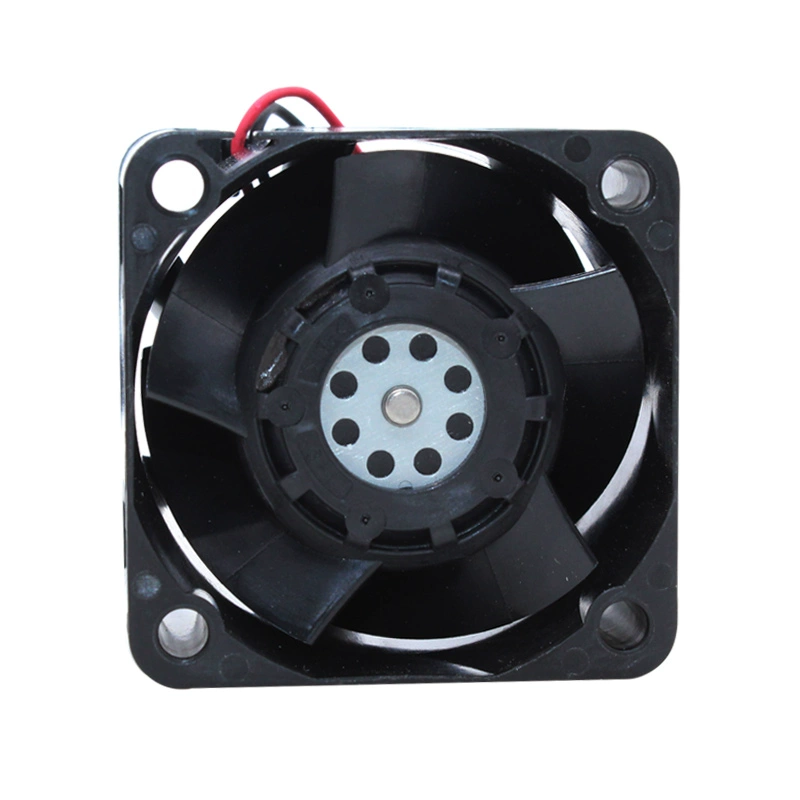

The NMB 04028DA-12Q-AAF-2, in its two-wire configuration and drawing 0.35A, is a very high-performance 12V DC axial cooling fan from NMB Technologies. It’s perfectly suited for demanding thermal management in compact, high-density electronic systems where space is at a premium. Measuring 40x40x28mm, this fan consumes 4.2W to achieve an impressive 18000 RPM, delivering a strong 20.1 CFM airflow and a significant 1.93 inch-H2O of static pressure to move air against considerable resistance. Equipped with durable ball bearings, it offers a substantial life expectancy of 70,000 hours at 40°C. With its straightforward two-wire connection, it simplifies integration while still providing essential features like auto restart and polarity protection for reliable operation, all at a noise level of 54.5 dBA.
Model Number: 04028DA-12Q-AAF-2
Manufacturer: NMB Technologies
Type: DC Axial Cooling Fan
Rated Voltage: 12V DC
Operating Voltage Range: 10.8V to 13.2V DC
Rated Current: 0.35A
Rated Power: 4.2W
Speed: 18000 RPM
Airflow: 20.1 CFM (Cubic Feet per Minute) / 0.57 m³/min
Static Pressure: 1.93 inch-H2O (approximately 480.8 Pa)
Noise Level: 54.5 dBA
Dimensions: 40mm (Length) x 40mm (Height) x 28mm (Depth/Thickness)
Connector: 2-Wire Leads (Red: +, Black: -)
Bearing Type: Ball Bearing
Life Expectancy: 70,000 hours at 40°C (L10)
Operating Temperature: -10°C to 70°C
Frame Material: Plastic (UL 94V-0 rated)
Impeller Material: Plastic (UL 94V-0 rated)
Features: Auto Restart, Polarity Protection
