Description

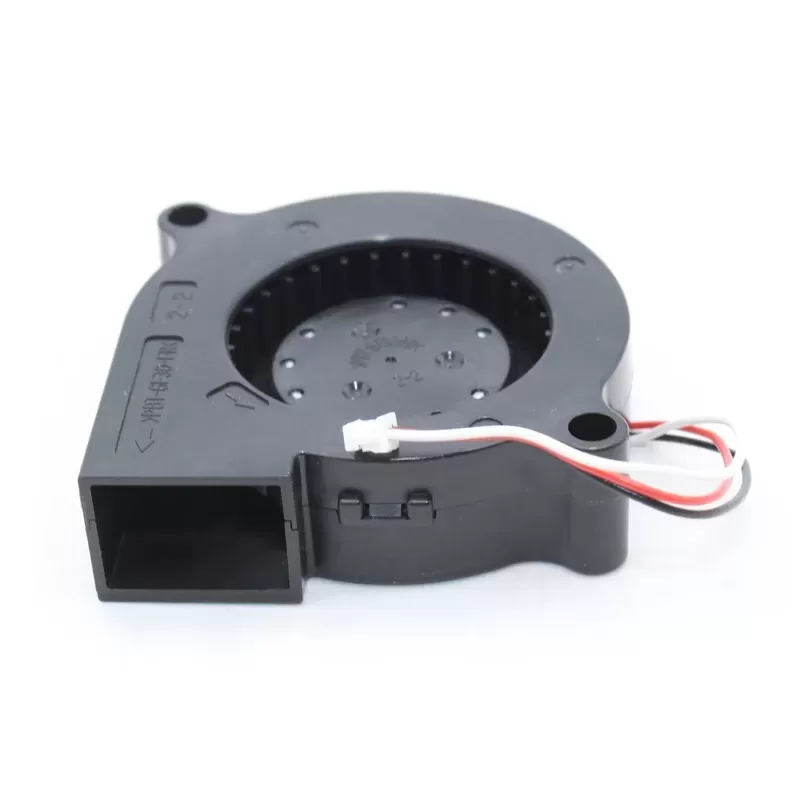

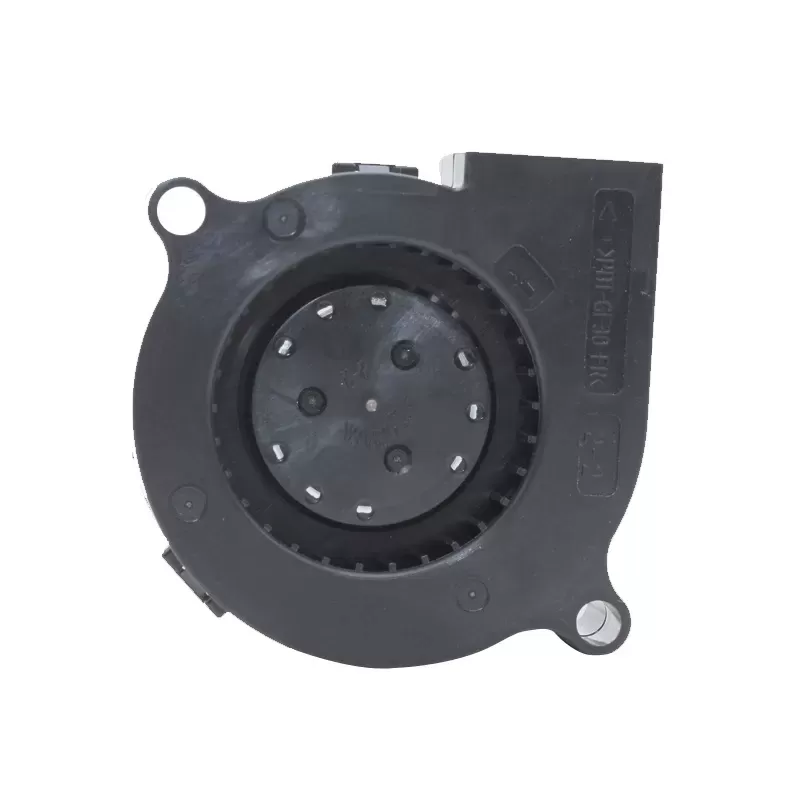

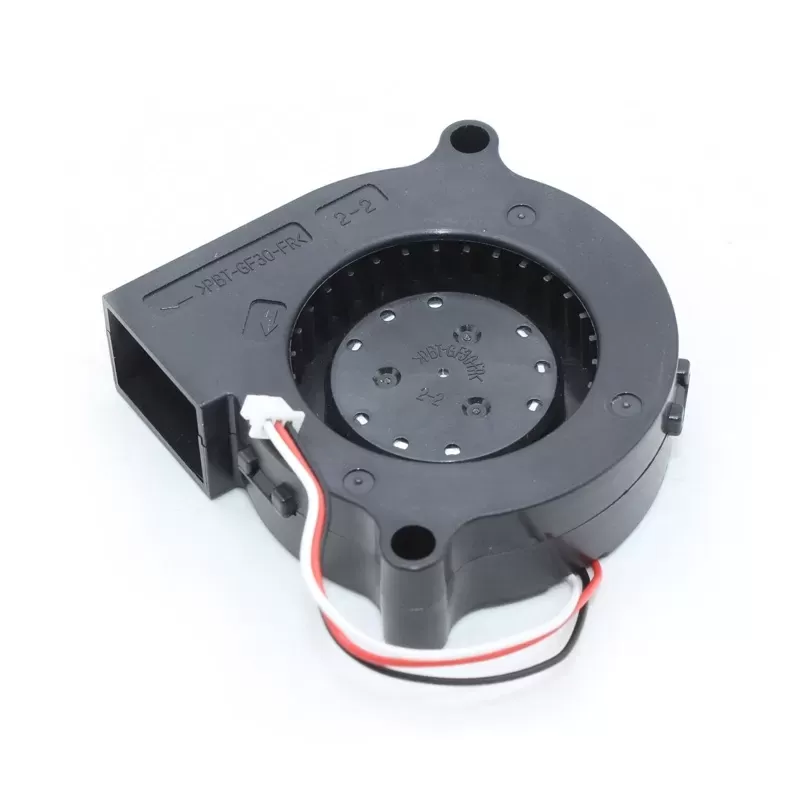

The NMB 05115GA-12L-AL-01 is a compact 12V DC centrifugal blower fan measuring 50mm x 50mm x 15mm. Operating at a rated current of 0.08A (0.96W), this blower is engineered for efficient spot cooling or airflow in confined spaces. It achieves a rotational speed of 3700 RPM, delivering approximately 3.6 CFM of airflow with a static pressure of 0.30 inch-H2O (74.7 Pa). Its noise output is 29.0 dBA, making it a relatively quiet option for a blower. The fan is equipped with ball bearings for a long operational life of 60,000 hours at 60°C. Connectivity is via 3-wire leads, which include a pulse sensor for speed monitoring. Integrated features also include auto-restart and polarity protection, ensuring reliable and controlled performance.
Model Number: 05115GA-12L-AL-01
Manufacturer: NMB Technologies Corporation
Type: DC Centrifugal Blower Fan
Dimensions: 50mm x 50mm x 15mm
Rated Voltage: 12V DC
Operating Voltage: 6.0V to 13.2V DC
Rated Current: 0.08A
Rated Power: 0.96W
Speed: 3700 RPM
Airflow: 3.6 CFM / 0.10 m³/min
Static Pressure: 0.30 inch-H2O / 74.7 Pa
Noise Level: 29.0 dBA
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 60,000 hours at 60°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Pulse Sensor, Auto Restart, Polarity Protection
