Description

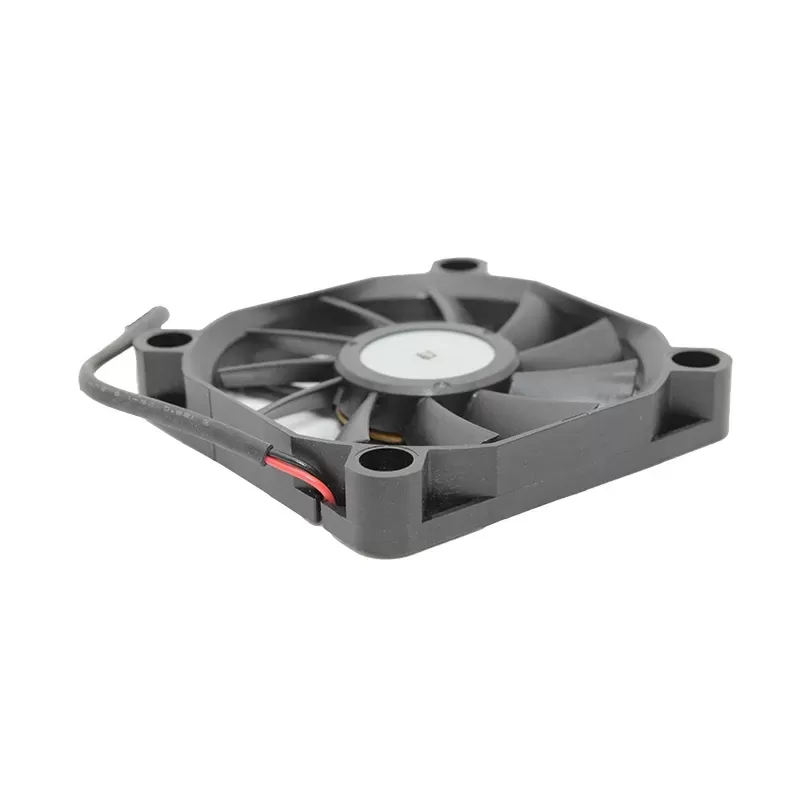

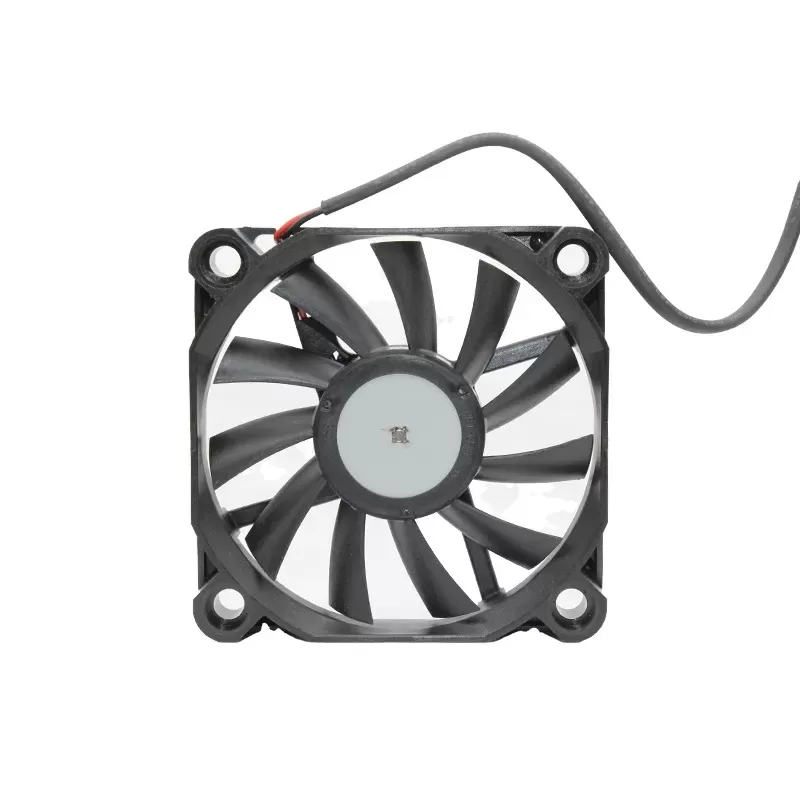

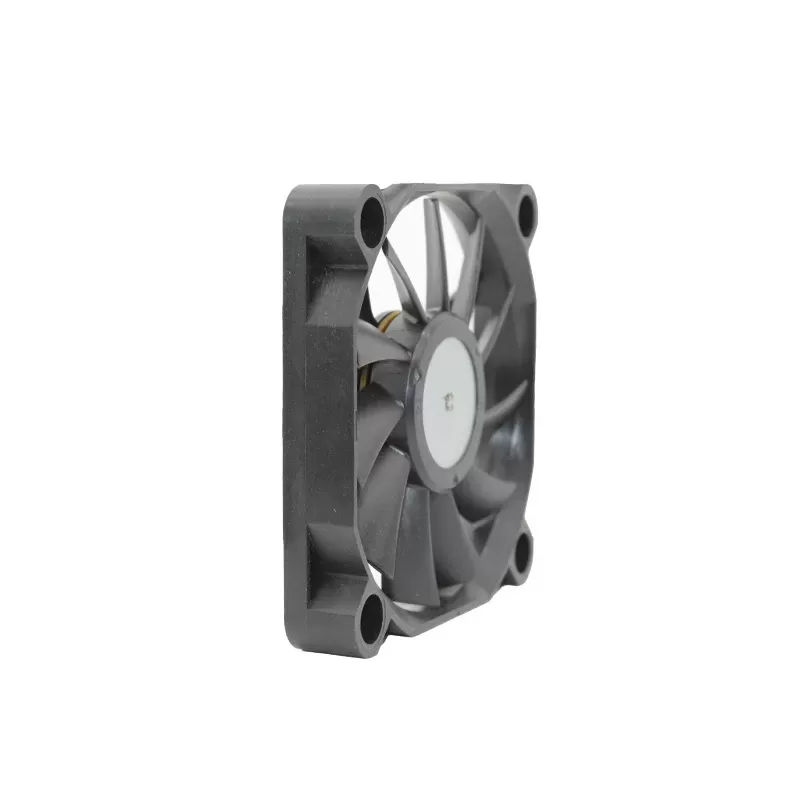

The NMB 06010KA-12L-BA-01 is a compact 12V DC axial cooling fan from NMB Technologies Corporation, measuring 60mm x 60mm x 10mm. Operating at a rated current of 0.13A (1.56W), this fan provides efficient cooling in confined spaces. It achieves a speed of 4000 RPM, delivering 15.0 CFM of airflow and a static pressure of 0.085 inch-H2O, while maintaining a low noise level of 31 dBA. Equipped with durable ball bearings, it ensures a long operational life of 70,000 hours at 25°C. Its 2-wire lead connector offers a straightforward power connection, making it a reliable solution for various electronic devices, small appliances, and other systems where quiet and effective cooling is essential.
Model Number: 06010KA-12L-BA-01
Manufacturer: NMB Technologies Corporation
Type: DC Axial Cooling Fan
Dimensions: 60mm x 60mm x 10mm
Rated Voltage: 12V DC
Rated Current: 0.13A
Rated Power: 1.56W
Speed: 4000 RPM
Airflow: 15.0 CFM / 0.42 m³/min
Static Pressure: 0.085 inch-H2O / 21.2 Pa
Noise Level: 31 dBA
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 70,000 hours at 25°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Polarity Protection
