Description

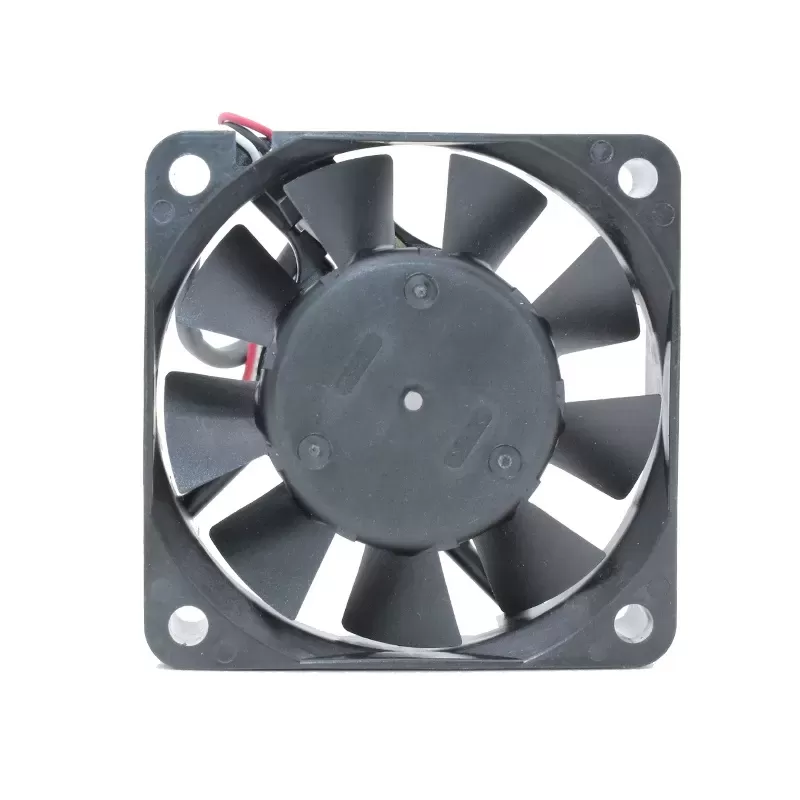

The NMB 06015KA-12M-AL-01 is a compact 12V DC axial cooling fan measuring 60mm x 60mm x 15mm. Operating at a rated current of 0.17A (2.04W), this fan is engineered for effective thermal management in space-constrained electronic equipment. It achieves a rotational speed of 3800 RPM, delivering 18.7 CFM of airflow with a static pressure of 0.13 inch-H2O (32.3 Pa). Its noise output is 29.0 dBA, offering a good balance between performance and quiet operation for its size. The fan is equipped with ball bearings for a long operational life of 60,000 hours at 60°C. Connectivity is via 3-wire leads, which include a pulse sensor for speed monitoring. Integrated features also include auto-restart and polarity protection, ensuring dependable performance.
Model Number: 06015KA-12M-AL-01
Manufacturer: NMB Technologies Corporation
Type: DC Axial Cooling Fan
Dimensions: 60mm x 60mm x 15mm
Rated Voltage: 12V DC
Operating Voltage: 6.0V to 13.2V DC
Rated Current: 0.17A
Rated Power: 2.04W
Speed: 3800 RPM
Airflow: 18.7 CFM / 0.53 m³/min
Static Pressure: 0.13 inch-H2O / 32.3 Pa
Noise Level: 29.0 dBA
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 60,000 hours at 60°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Pulse Sensor, Auto Restart, Polarity Protection
Old name: 2406KL-04W-B49
