Description

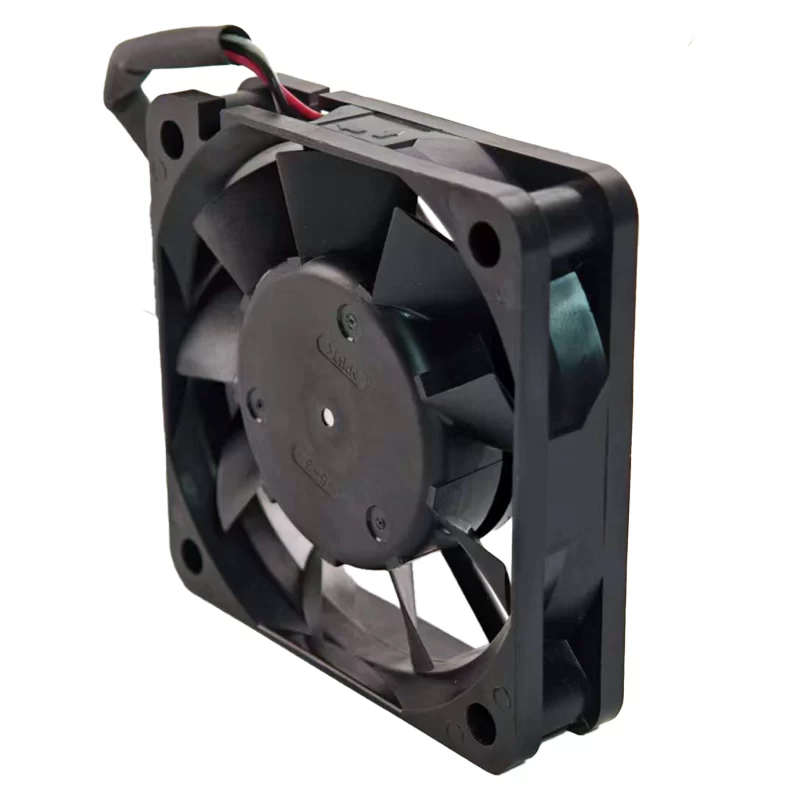

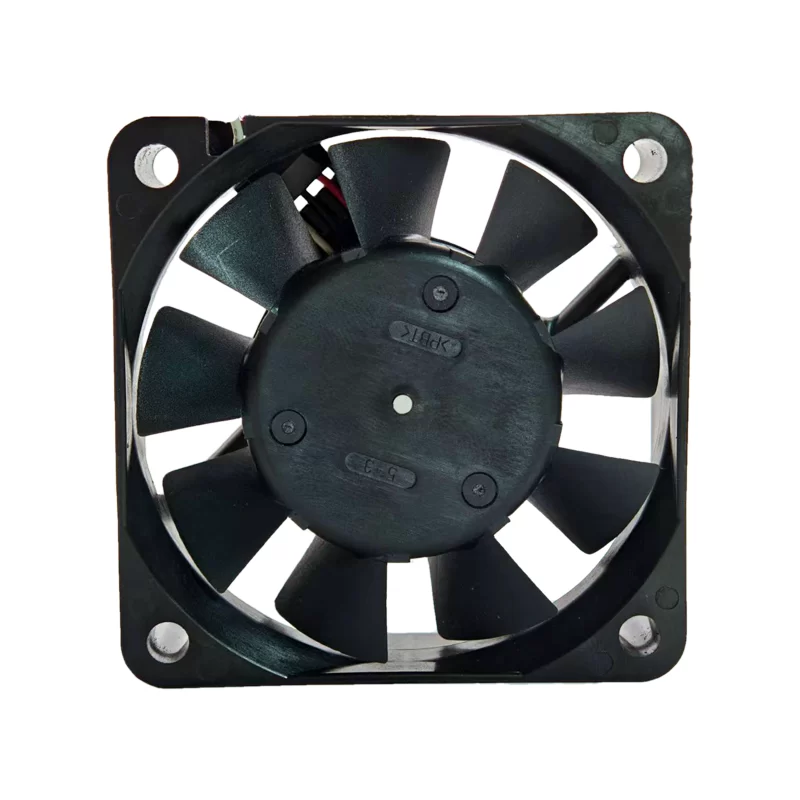

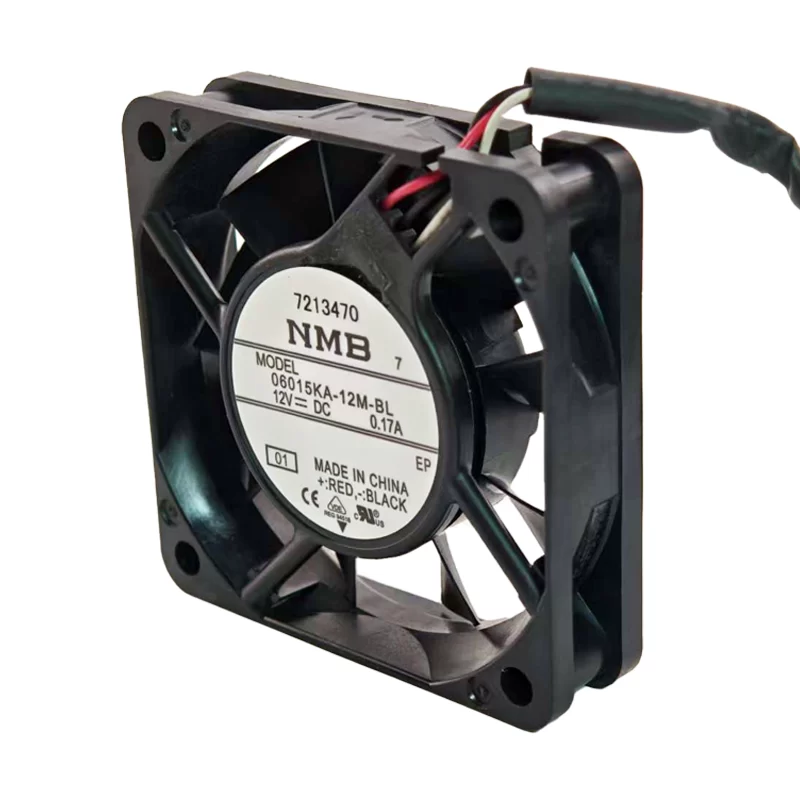

The NMB 06015KA-12M-BL-01 is a compact 60x60x15mm DC axial fan engineered for efficient cooling in space-constrained electronic applications. Operating on a 12V DC power supply, this fan precisely draws 0.17A of current, consuming 2.04W of power. Utilizing durable ball bearings, this model offers a long operational life and includes an auto-restart feature for enhanced reliability. Its robust design makes it suitable for various sensitive equipment requiring reliable thermal management.
06015KA-12M-BL-01 Fan Parameters
Model Number: 06015KA-12M-BL-01
Manufacturer: NMB Technologies Corporation
Type: DC Axial Fan
Dimensions: 60mm x 60mm x 15mm
Rated Voltage: 12 VDC
Operating Voltage Range: 9 VDC to 13.2 VDC
Rated Current: 0.17A
Rated Power: 2.04 W
Bearing Type: Ball Bearing
Frame Material: Plastic
Blade Material: Plastic
Wiring: 3 Wire Leads (with speed sensor/tachometer)
Weight: 38 g
Operating Temperature: -10°C to +70°C
Life Expectancy (L10): 60,000 hours at 40°C
Features: Auto Restart, Speed Sensor (Tachometer)
Application: Small electronics cooling, embedded systems, networking equipment, medical devices, general ventilation.
