Description

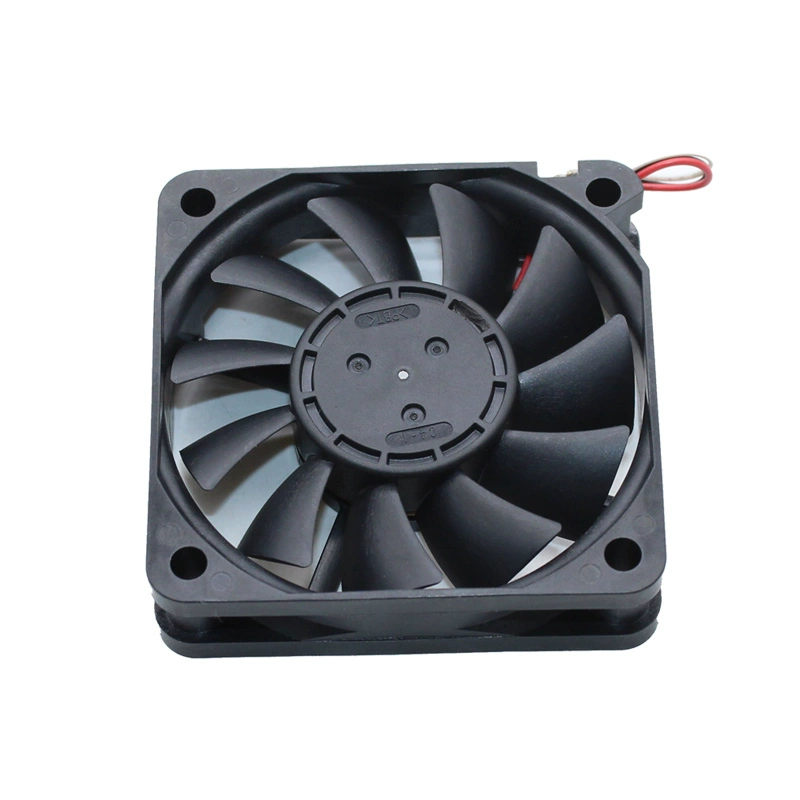

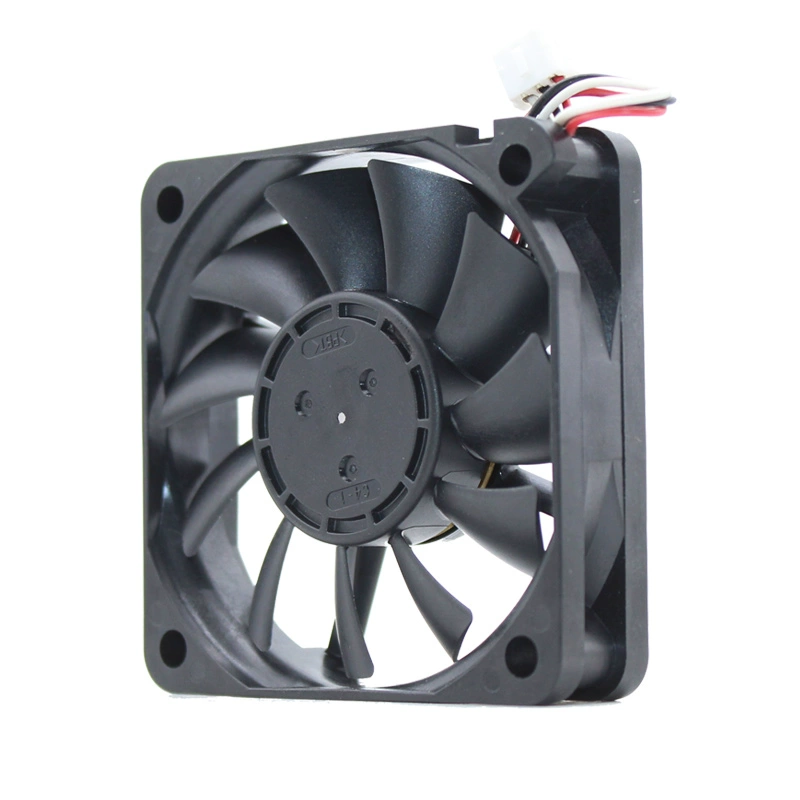

The Sunon 06015SS-24M-AL-05 is a quiet and efficient 24V DC axial cooling fan from Sunon, measuring 60mm x 60mm x 15mm. Operating at a rated current of 0.08A (1.92W), this fan provides effective cooling in various electronic devices and small enclosures. It achieves a speed of 3800 RPM, delivering 17.5 CFM of airflow and a static pressure of 0.12 inch-H2O, while maintaining a low noise level of 31.0 dBA. Equipped with Sunon’s reliable Vapo-Bearing system, it ensures a long operational life of 60,000 hours at 40°C. The fan utilizes 3-wire leads, providing a speed sensor for monitoring its operational status, along with auto-restart and polarity protection, making it a suitable choice for applications where quiet and consistent airflow is crucial.
Model Number: 06015SS-24M-AL-05
Manufacturer: Sunon
Type: DC Axial Cooling Fan
Dimensions: 60mm x 60mm x 15mm
Rated Voltage: 24V DC
Rated Current: 0.08A
Rated Power: 1.92W
Speed: 3800 RPM
Airflow: 17.5 CFM / 0.50 m³/min
Static Pressure: 0.12 inch-H2O / 29.9 Pa
Noise Level: 31.0 dBA
Connector: 3-Wire Leads
Bearing Type: Vapo-Bearing
Life Expectancy: 60,000 hours at 40°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Polarity Protection, Speed Sensor
