Description
Model Number: 06015SS-24N-AL
Manufacturer: NMB Technologies Corporation
Series: 06015SS Series
Fan Type: DC Brushless Axial Fan
Dimensions L x H x W: 60 mm x 60 mm x 15 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 10 VDC to 26.4 VDC
Rated Current: 0.13 A
Input Power: 3.12 W
Wiring: 3 Wire Leads
Bearing Type: Sleeve Bearing
Rotational Speed RPM: 4200 RPM to 4600 RPM
Maximum Airflow: 18.3 CFM to 22.6 CFM
Maximum Static Pressure: 0.16 in H2O to 0.20 in H2O
Noise Level: 34 dB
Frame Material: Plastic
Impeller Blade Material: Plastic
Protection Functions: Auto Restart, Polarity Protection, Locked Rotor Sensor
Operating Temperature Range: -20°C to +75°C
Expected Life L10: 40,000 Hours at 40°C
Mass: Approximately 37 g to 50 g

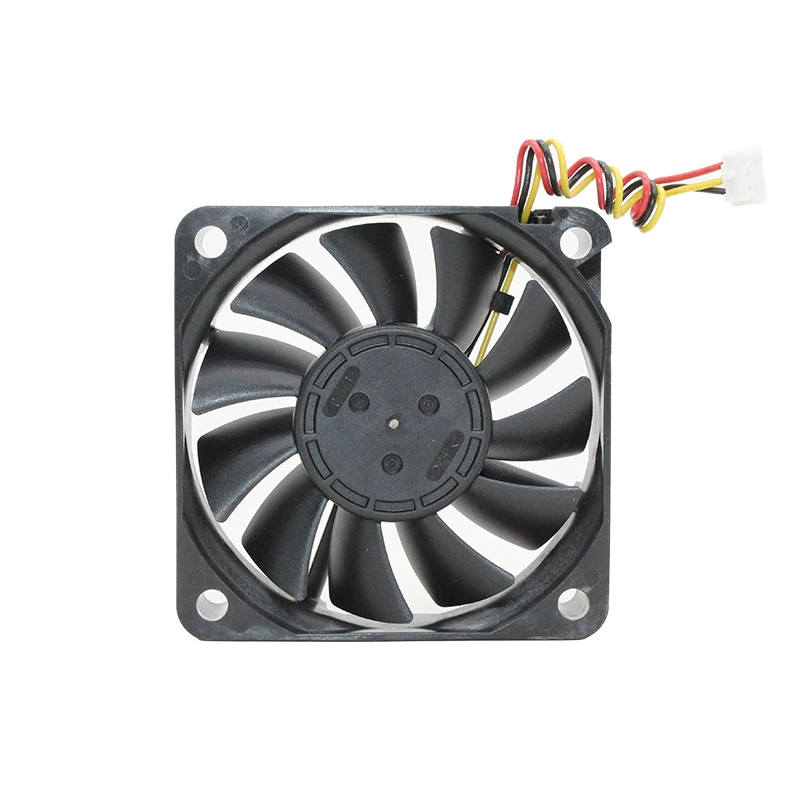

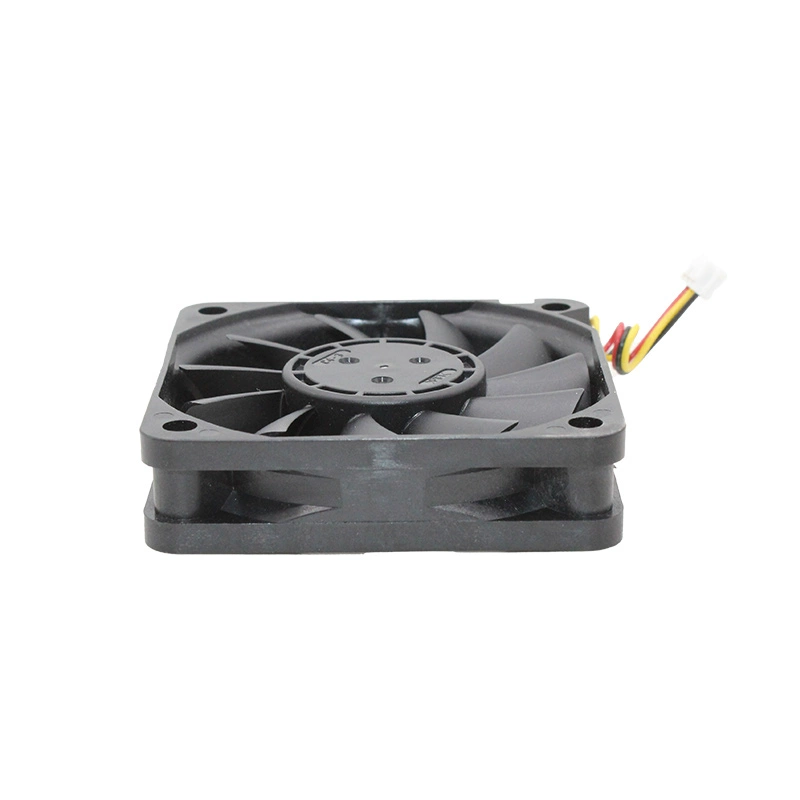

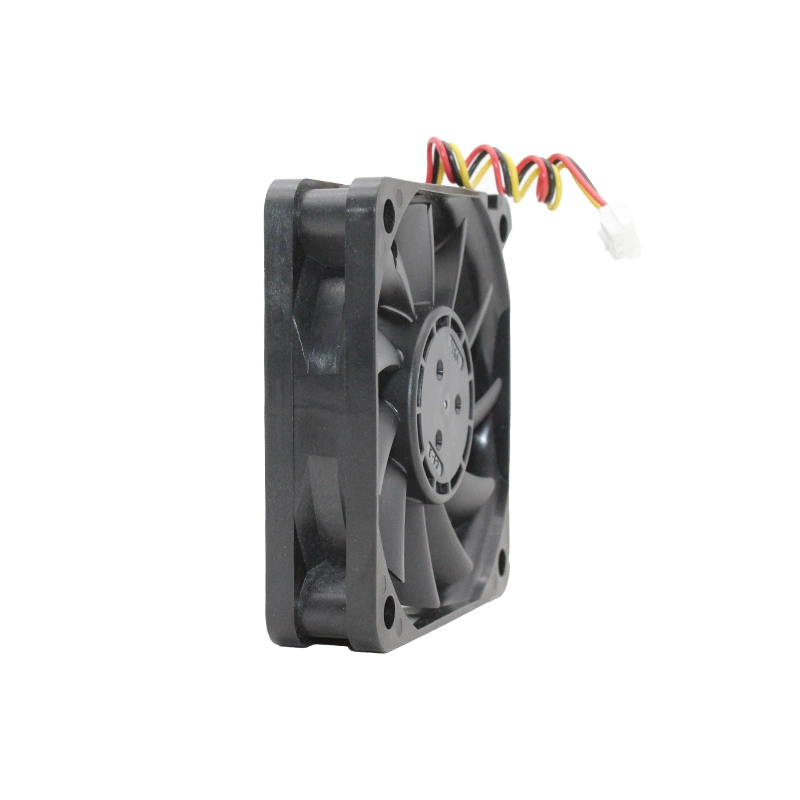

The NMB 06015SS-24N-AL is a compact and efficient 60x60x15mm DC axial fan from NMB’s SS Series, designed for effective cooling in various electronic systems. Operating on 24VDC, it consumes 3.12W of power with a current draw of 0.13A. This fan features a sleeve bearing, offering good acoustic performance at 34 dB and a decent lifespan of 40,000 hours at 40°C. It delivers airflow ranging from 18.3 CFM to 22.6 CFM at speeds between 4200 RPM and 4600 RPM, providing adequate static pressure for its size. The 3-wire configuration includes a locked rotor sensor for monitoring, and it also features auto restart and polarity protection for reliable operation. This fan is a suitable choice for cooling inverters, power supplies, and other compact electronic devices where a balance of performance, cost-effectiveness, and protection features is desired.
