Description

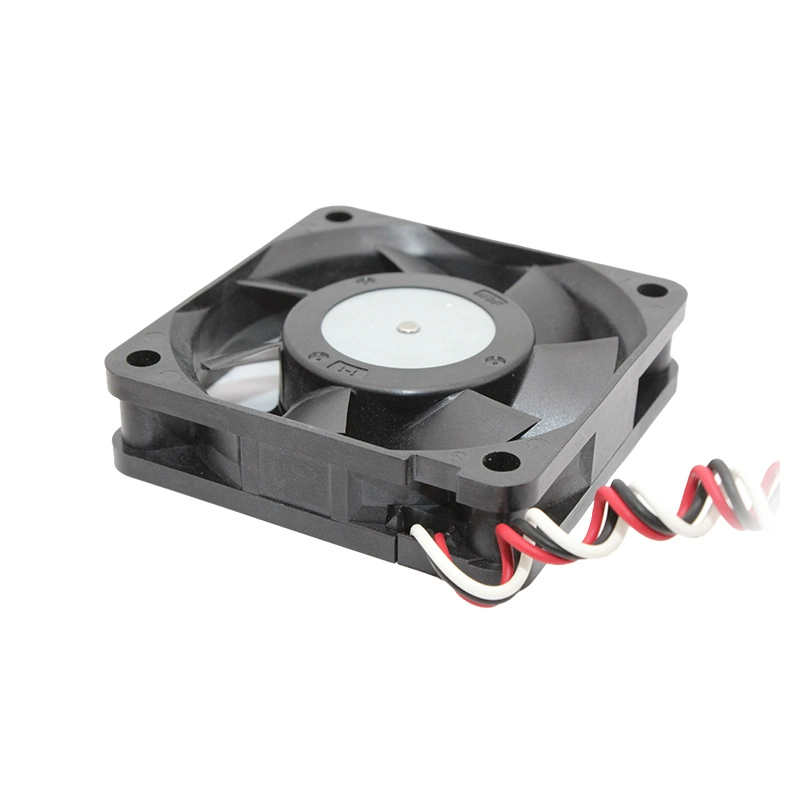

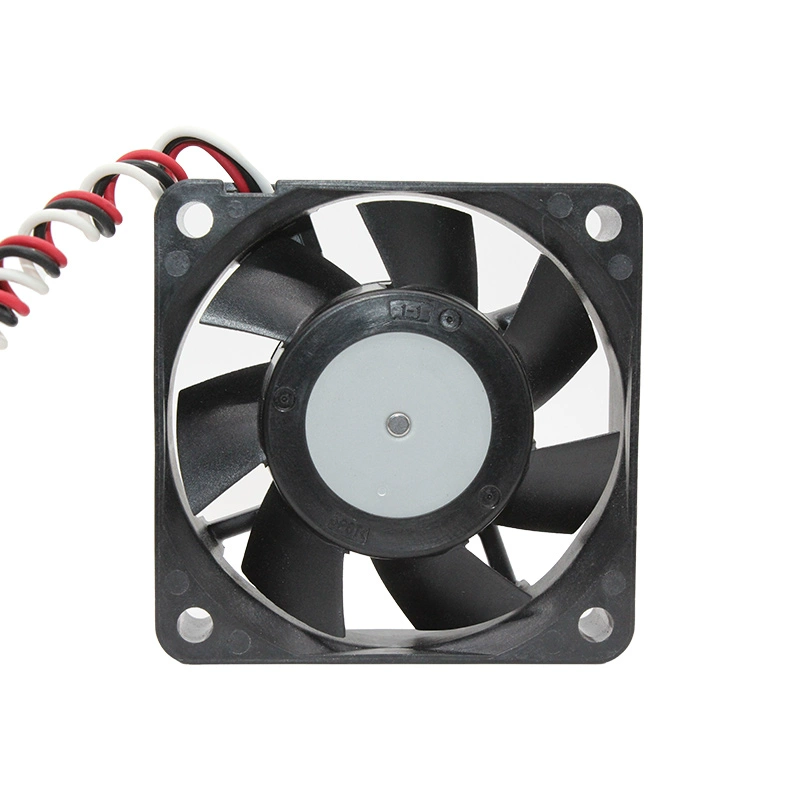

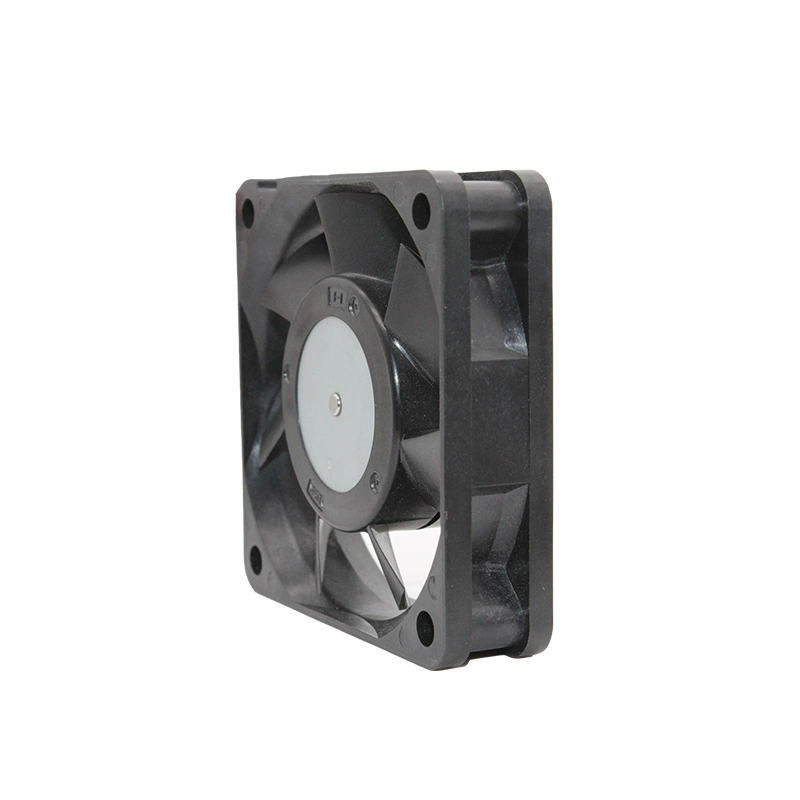

The NMB 06015VA-12P-BT-02 is a compact high-performance 12V DC axial cooling fan. Measuring 60mm x 60mm x 15mm, this fan is designed for efficient cooling in tight spaces within electronic devices, small appliances, and industrial equipment where effective heat dissipation is crucial. It operates at a rated voltage of 12V DC and draws a current of 0.19A, resulting in a power consumption of 2.28W. This allows it to achieve a rotational speed of 5500 RPM, delivering an airflow of 21.5 CFM and a static pressure of 0.28 inch-H2O. Its noise level is 33.0 dBA. The fan features durable ball bearings for an extended operational lifespan of 100,000 hours at 25°C. It commonly comes with 3-wire leads, including power, ground, and a tachometer output for speed monitoring.
Model Number: 06015VA-12P-BT-02
Manufacturer: NMB Technologies Corporation
Series: VA Series
Type: DC Axial Cooling Fan
Dimensions: 60mm x 60mm x 15mm
Rated Voltage: 12V DC
Operating Voltage Range: 7V to 13.8V DC
Rated Current: 0.19A
Rated Power: 2.28W
Speed: 5500 RPM
Airflow: 21.5 CFM (0.61 m³/min)
Static Pressure: 0.28 inch-H2O (70 Pa)
Noise Level: 33.0 dBA
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C
Frame Material: Plastic
Impeller (Blade) Material: Plastic
Features: Auto Restart, Polarity Protection, Tachometer Output
Operating Temperature: -10°C to +70°C
Weight: 48g
Approvals/Certifications: UL, CSA, TUV, CE, RoHS Compliant
