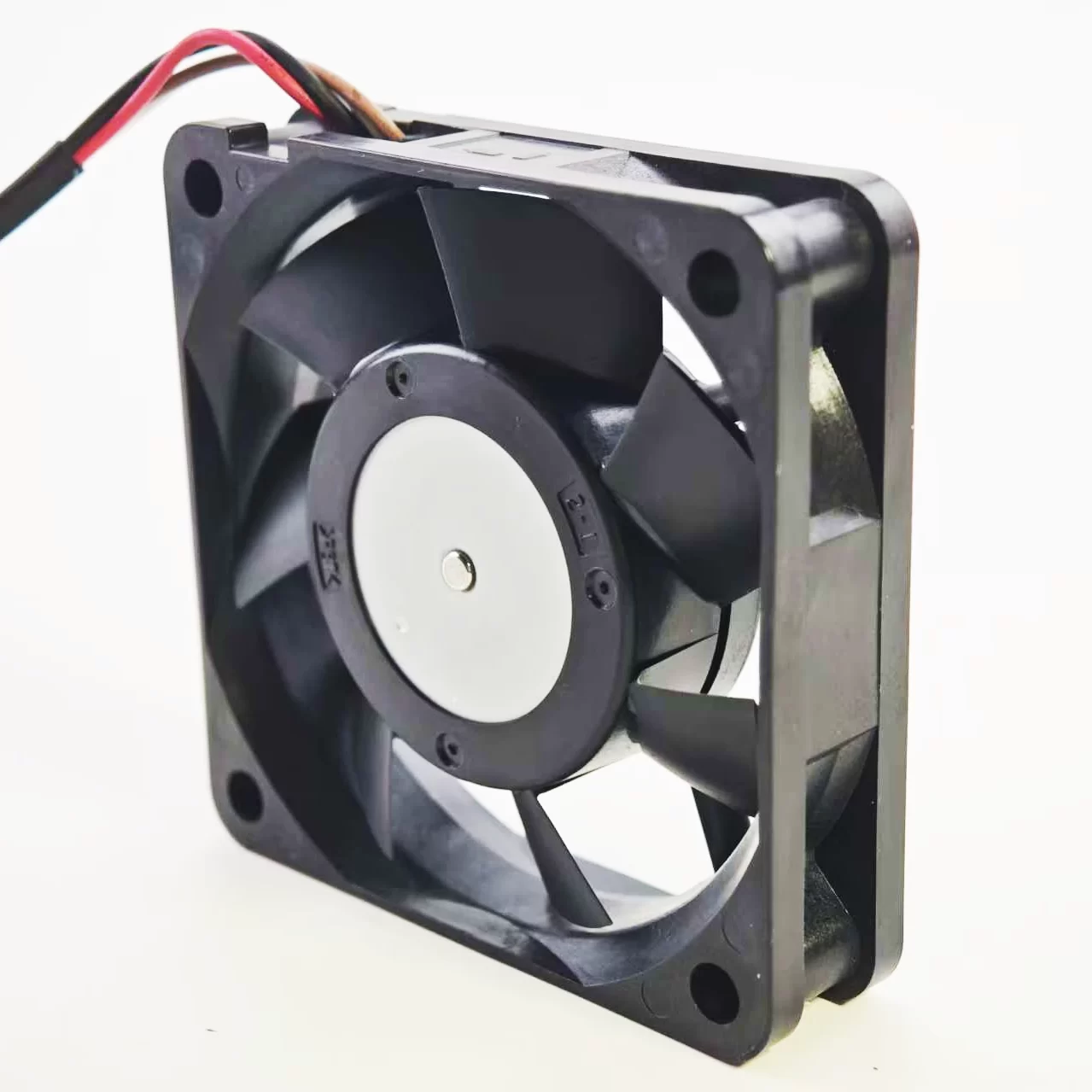

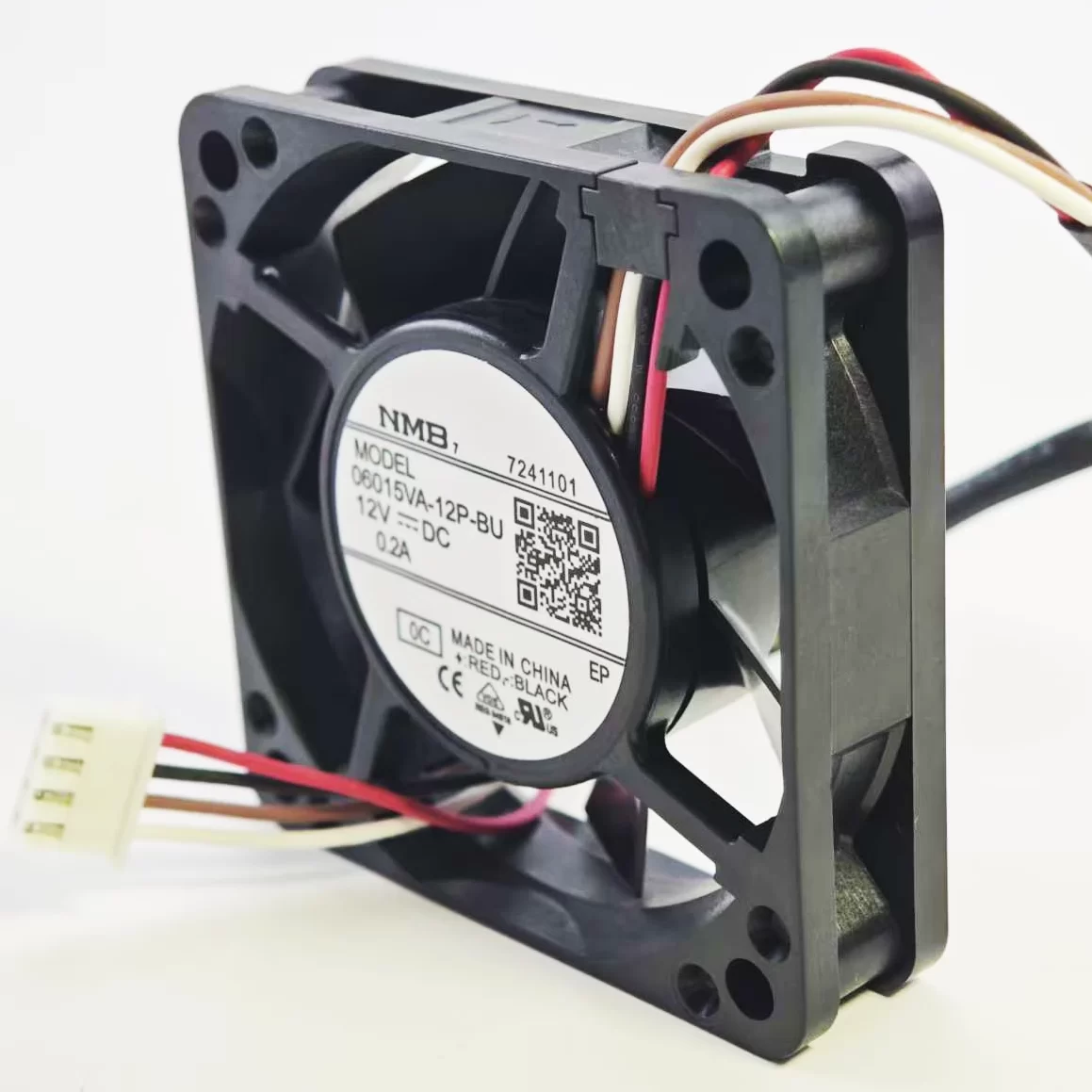

06015VA-12P-BU NMB 12V 0.2A 4-wire PWM cooling fan

$7.71

SKU: 06015VA-12P-BU
Tag:

Description

The Sunon 06015VA-12P-BU is a powerful and compact 12V DC axial fan, measuring 60x60x15mm. It features Sunon’s reliable Vapo Bearing system, ensuring a long operational lifespan. Drawing 0.2A of current, this fan is designed to deliver enhanced airflow and static pressure compared to lower current models, making it effective for heat dissipation in demanding compact spaces. With its 4-wire termination, it offers both PWM control for precise speed management and a pulse sensor (tachometer) for real-time RPM monitoring. This makes it an ideal choice for mini PCs, embedded systems, networking equipment, and other electronic devices requiring efficient, controllable, and dependable thermal management.

NMB brand new original 06015VA-12P-BU 12V 0.2A 4-wire PWM speed control fan cooling fan

Model: 06015VA-12P-BU
Manufacturer: Sunon
Type: DC Axial Fan
Dimensions: 60mm x 60mm x 15mm
Nominal Voltage: 12V DC
Current: 0.2A
Power Consumption: 2.4W
Bearing Type: Vapo Bearing
Life Expectancy: 60,000 to 70,000 hours at 40°C
Termination: 4-wire leads
Frame Material: Thermoplastic (PBT)
Blade Material: Thermoplastic (PBT)
Features: PWM Control, Pulse Sensor (Tachometer), Auto-Restart, Polarity Protection

06015VA-12P-BU NMB 12V 0.2A 4-wire PWM cooling fan
06015VA-12P-BU NMB 12V 0.2A 4-wire PWM cooling fan
06015VA-12P-BU NMB 12V 0.2A 4-wire PWM cooling fan
06015VA-12P-BU NMB 12V 0.2A 4-wire PWM cooling fan

Additional information

Weight 0.5 kg
