Description

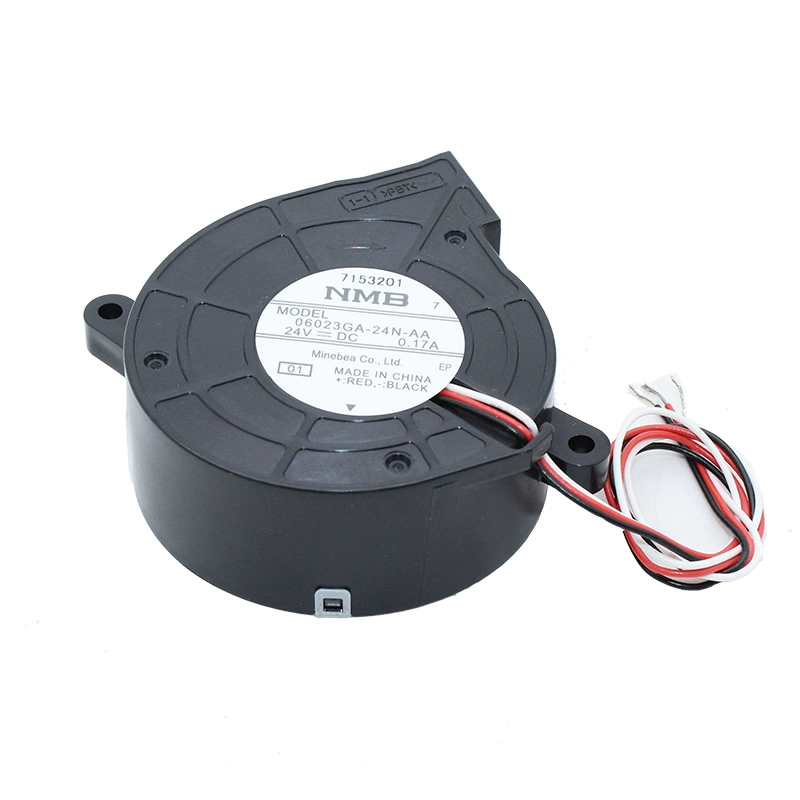

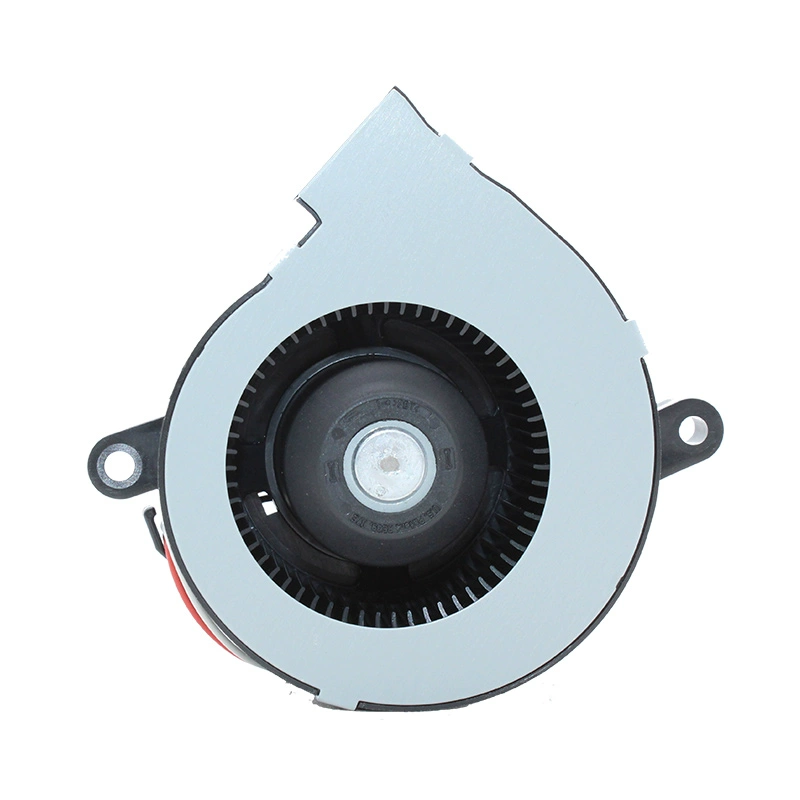

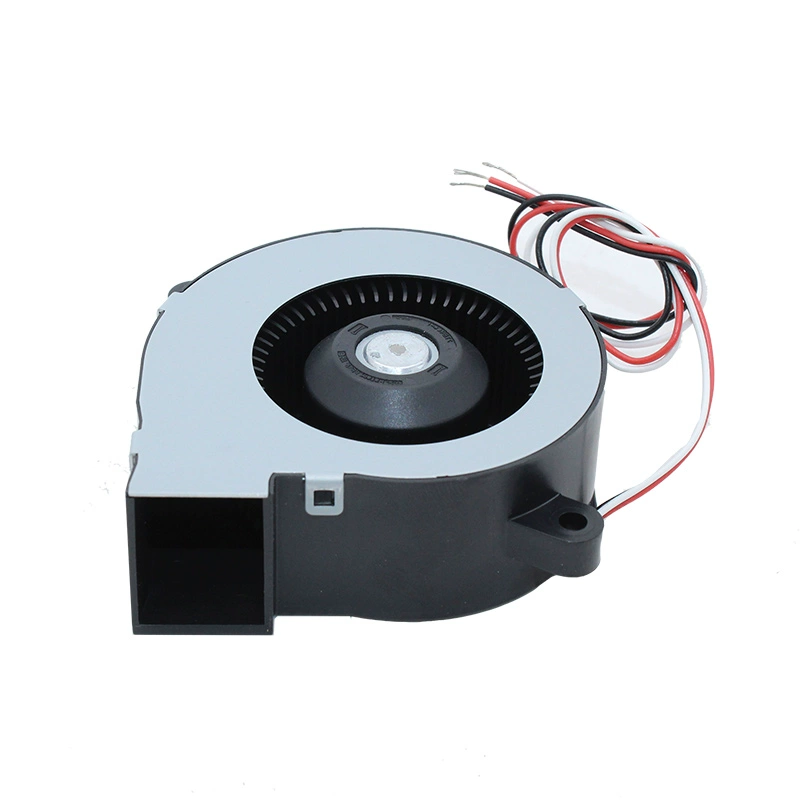

The NMB 06023GA-24N-AA-01 is a compact, high-performance 24V DC blower fan from NMB Technologies, measuring 60x60x23mm. This fan is specifically designed to provide concentrated airflow with high static pressure, making it ideal for directing air through confined spaces, ducts, or across components that require substantial resistance to flow. It operates at 0.17A (4.08W), achieving a speed of 5000 RPM. This results in an airflow of 8.5 CFM and a notable static pressure of 0.90 inch-H2O. Equipped with durable ball bearings, it offers a reliable life expectancy of 40,000 hours at 40°C. Its 3-wire configuration includes a tachometer output, enabling real-time monitoring of fan speed, which is crucial for precise thermal control in various electronic and industrial applications, operating at a noise level of 41.0 dBA.
Model Number: 06023GA-24N-AA-01
Manufacturer: NMB Technologies Corporation
Type: DC Blower Fan (Centrifugal Fan)
Rated Voltage: 24V DC
Operating Voltage Range: 13.0V to 27.6V DC
Rated Current: 0.17A
Rated Power: 4.08W
Speed: 5000 RPM
Airflow: 8.5 CFM / 0.24 m³/min
Static Pressure: 0.90 inch-H2O / 224 Pa
Noise Level: 41.0 dBA
Dimensions: 60mm x 60mm x 23mm
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 40,000 hours at 40°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Speed Sensor (Tachometer Output), Polarity Protection
