Description

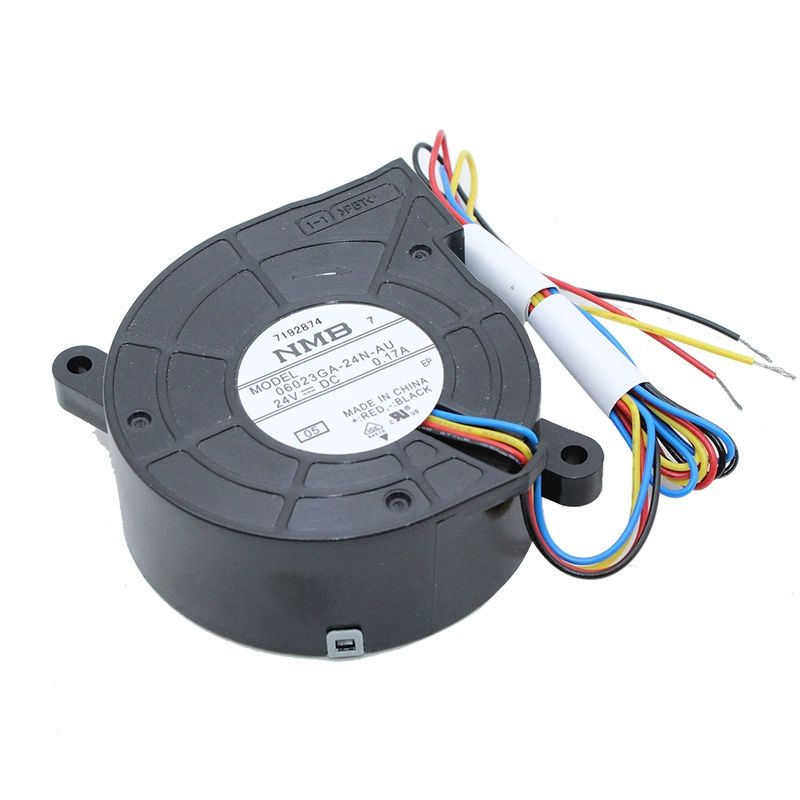

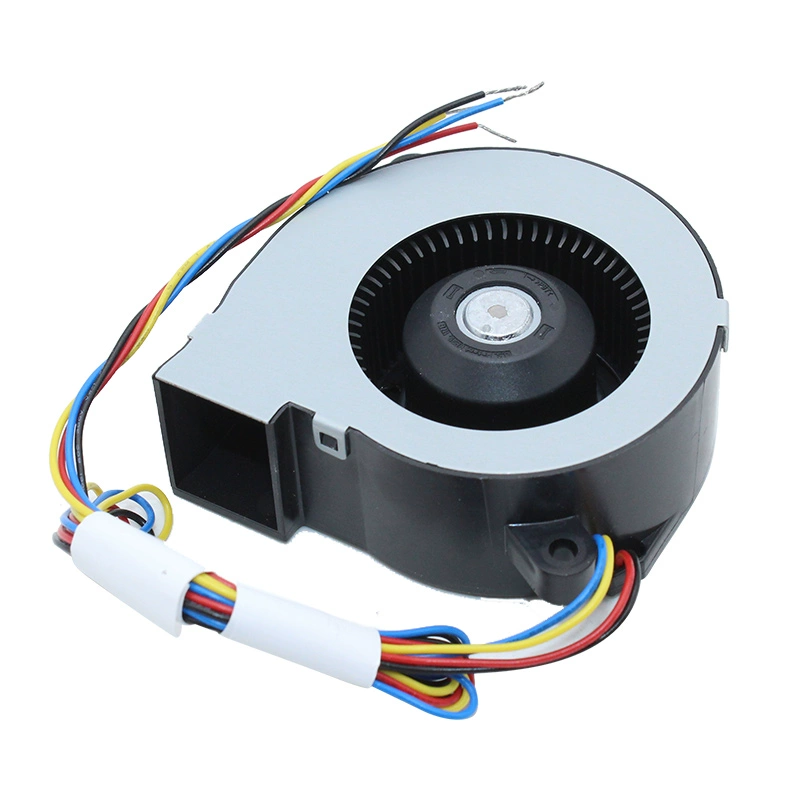

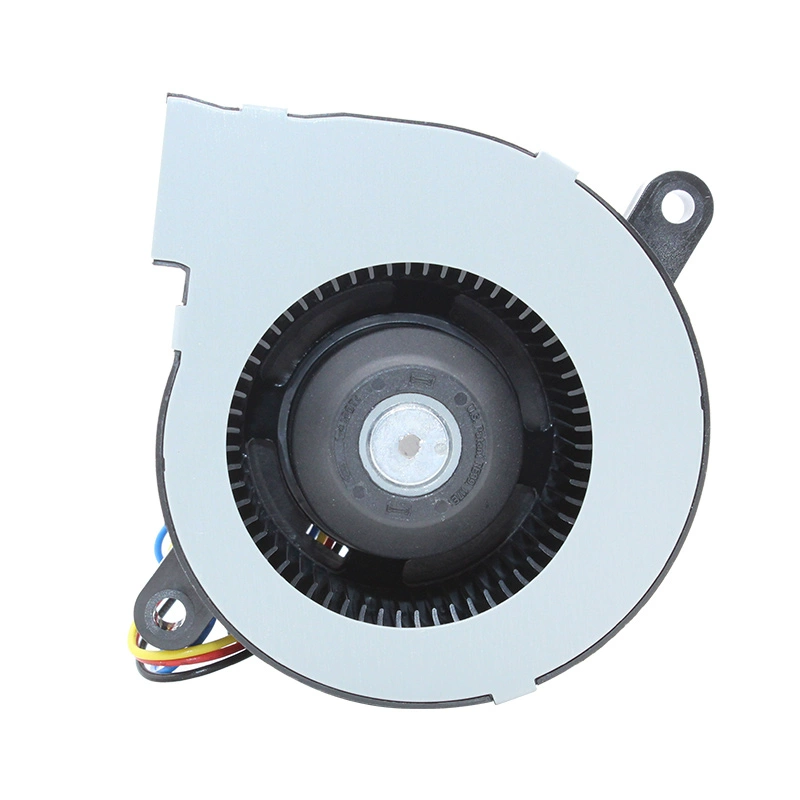

The NMB 06023GA-24N-AU-05 is a compact 24V DC centrifugal blower fan measuring 60mm x 60mm x 23mm. Operating at a rated current of 0.17A (4.08W), this blower is engineered for efficient spot cooling or airflow in confined spaces, such as projectors, small servers, or industrial control units. It achieves a rotational speed of 5000 RPM, delivering approximately 8.5 CFM of airflow with a static pressure of 0.803 inch-H2O (200 Pa). Its noise output is 41.0 dBA. The fan is equipped with ball bearings for a long operational life. Connectivity is typically via 4-wire leads, which include a pulse sensor for speed monitoring and a PWM input for precise speed control. Integrated features also include auto-restart and polarity protection, ensuring reliable and controlled performance.
Model Number: 06023GA-24N-AU-05
Manufacturer: NMB Technologies Corporation
Type: DC Centrifugal Blower Fan
Dimensions: 60mm x 60mm x 23mm
Rated Voltage: 24V DC
Operating Voltage: 14.4V to 26.4V DC
Rated Current: 0.17A
Rated Power: 4.08W
Speed: 5000 RPM
Airflow: 8.5 CFM / 0.24 m³/min
Static Pressure: 0.803 inch-H2O / 200 Pa
Noise Level: 41.0 dBA
Connector: 4-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 40,000 to 70,000 hours (at 60°C / 40°C respectively)
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: PWM Control, Pulse Sensor, Auto Restart, Polarity Protection
