Description

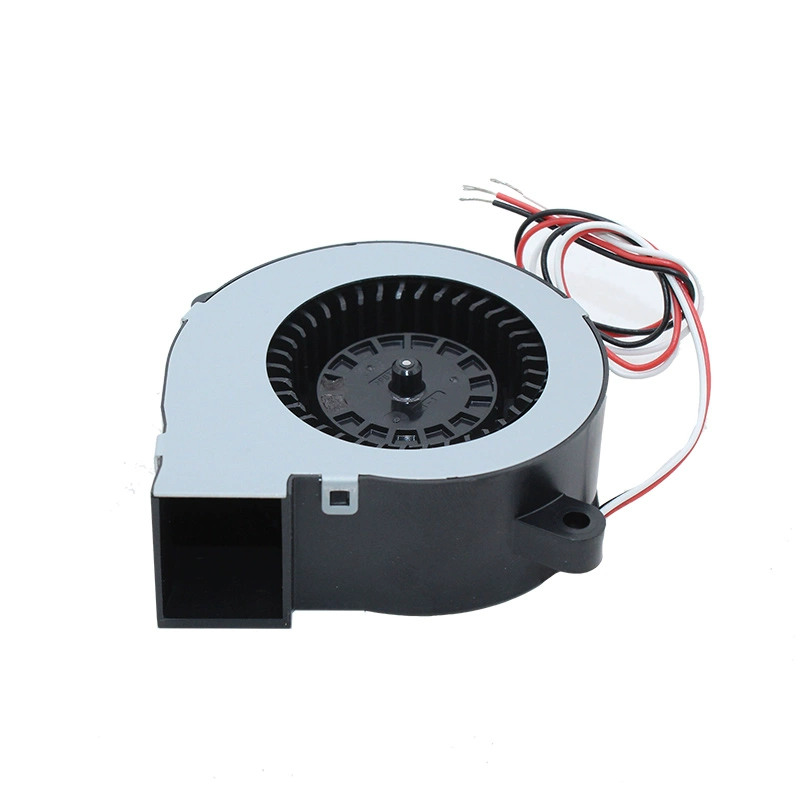

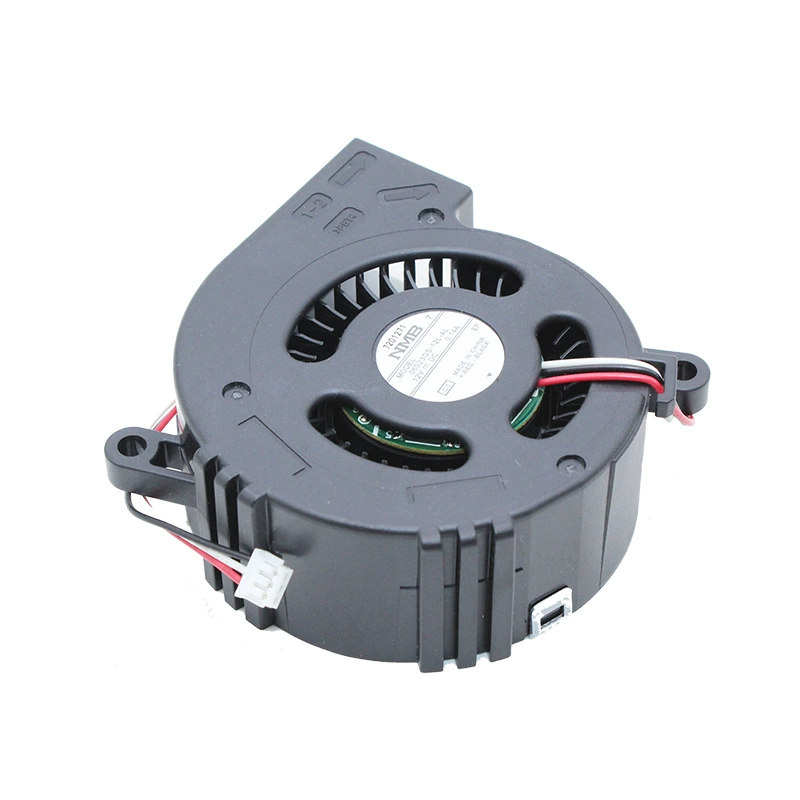

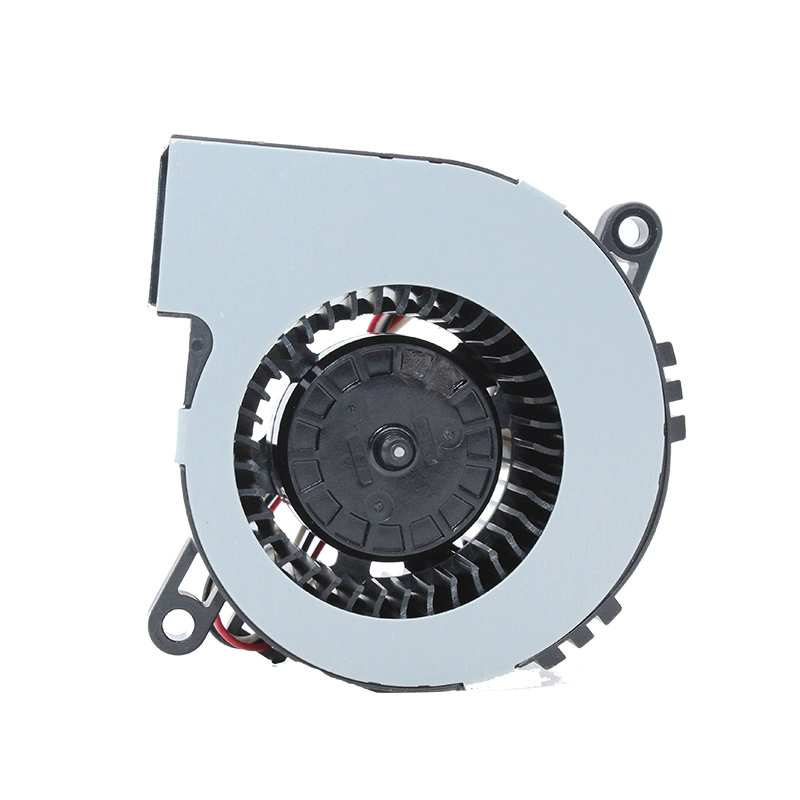

The NMB 06023GS-12L-AL-C1, now specified with a 0.14A current and three-wire leads, is an enhanced 12V DC blower fan from NMB Technologies. Measuring 60x60x23mm, this variant offers improved performance compared to its lower-current counterpart, making it suitable for applications requiring more focused airflow and static pressure. It consumes 1.68W to operate at 4700 RPM, delivering 8.80 CFM of airflow and a static pressure of 0.53 inch-H2O. Featuring durable ball bearings, it boasts a longer life expectancy of 50,000 hours at 60°C. Its 3-wire configuration includes a tachometer output, enabling real-time monitoring of fan speed, which is crucial for systems requiring precise thermal control. Operating at 36.0 dBA, it provides a balanced solution for efficient and monitored cooling.
Model Number: 06023GS-12L-AL-C1
Manufacturer: NMB Technologies Corporation
Type: DC Blower Fan (Centrifugal Fan)
Rated Voltage: 12V DC
Operating Voltage Range: 6.0V to 13.8V DC
Rated Current: 0.14A
Rated Power: 1.68W
Speed: 4700 RPM
Airflow: 8.80 CFM / 0.25 m³/min
Static Pressure: 0.53 inch-H2O / 132 Pa
Noise Level: 36.0 dBA
Dimensions: 60mm x 60mm x 23mm
Connector: 3-Wire Leads (Typically Red: +, Black: -, Yellow/White: Tachometer Output)
Bearing Type: Ball Bearing
Life Expectancy: 50,000 hours at 60°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Speed Sensor (Tachometer Output), Polarity Protection
