Description

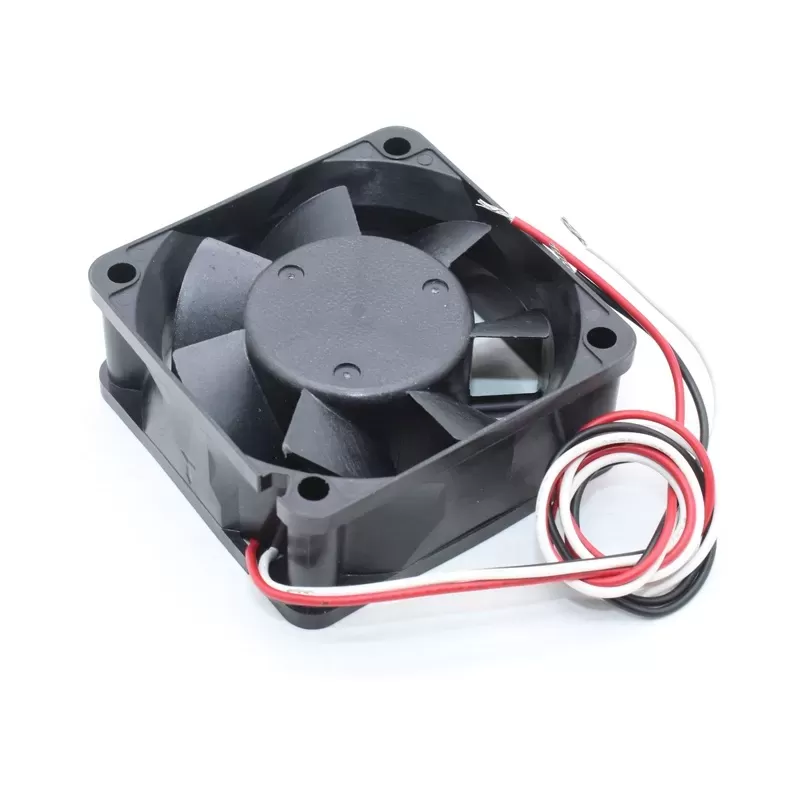

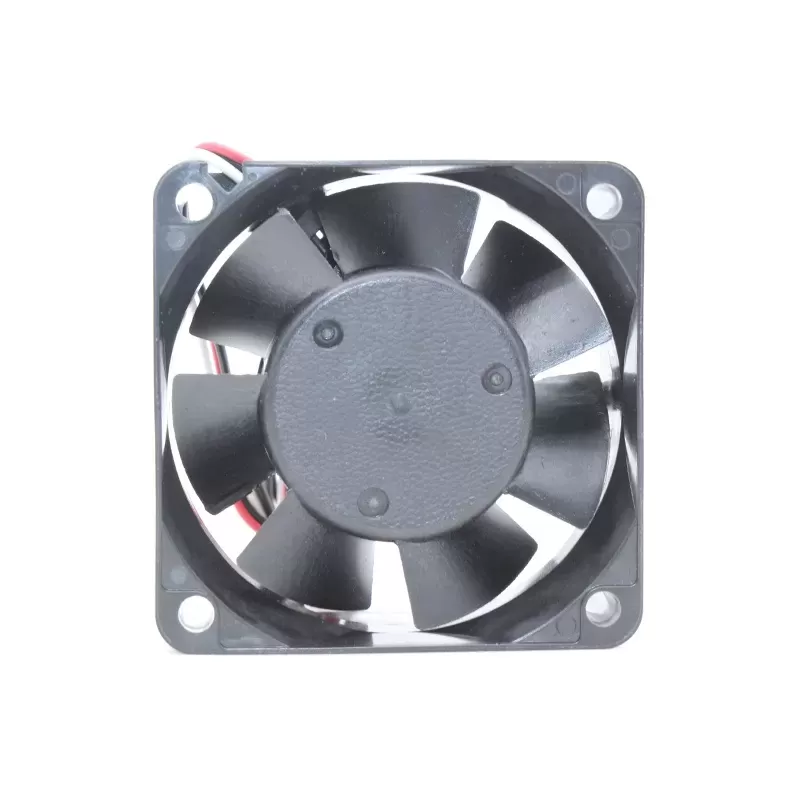

The NMB 06025MA-12P-CL-01 is a compact high-performance 12V DC axial cooling fan. Measuring 60mm x 60mm x 25mm, this fan is well-suited for cooling applications in computer cases, small servers, industrial controls, and other electronic assemblies where efficient and reliable airflow is required. It operates at a rated voltage of 12V DC and draws a current of 0.4A, resulting in a power consumption of 4.8W. This allows it to achieve a rotational speed of 5400 RPM, delivering an airflow of 43.0 CFM and a static pressure of 0.38 inch-H2O. Its noise level is 44.0 dBA. The fan features durable ball bearings for an extended operational lifespan of 100,000 hours at 25°C. It comes with 3-wire leads for power, ground, and a tachometer output for speed monitoring, along with auto-restart and polarity protection.
Model Number: 06025MA-12P-CL-01
Manufacturer: NMB Technologies Corporation (Minebea)
Series: MA Series
Type: DC Axial Cooling Fan
Dimensions: 60mm x 60mm x 25mm
Rated Voltage: 12V DC
Operating Voltage Range: 7V to 13.8V DC
Rated Current: 0.4A
Rated Power: 4.8W
Speed: 5400 RPM
Airflow: 43.0 CFM (1.22 m³/min)
Static Pressure: 0.38 inch-H2O (95 Pa)
Noise Level: 44.0 dBA
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C
Frame Material: Plastic
Impeller (Blade) Material: Plastic
Features: Auto Restart, Polarity Protection, Tachometer Output
Operating Temperature: -10°C to +70°C
Weight: 75g
Approvals/Certifications: UL, CSA, TUV, CE, RoHS Compliant
