Description

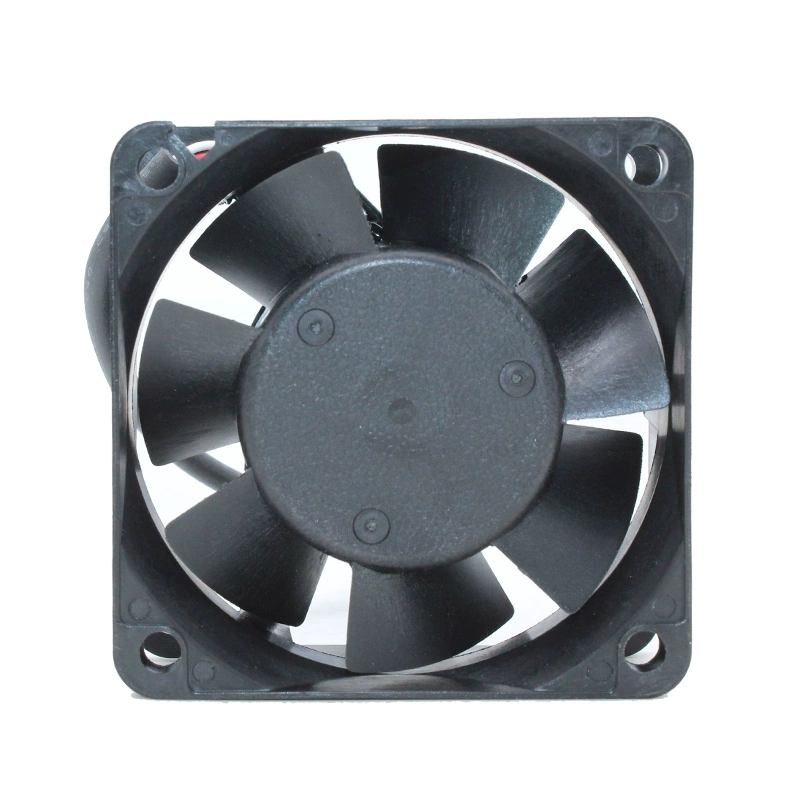

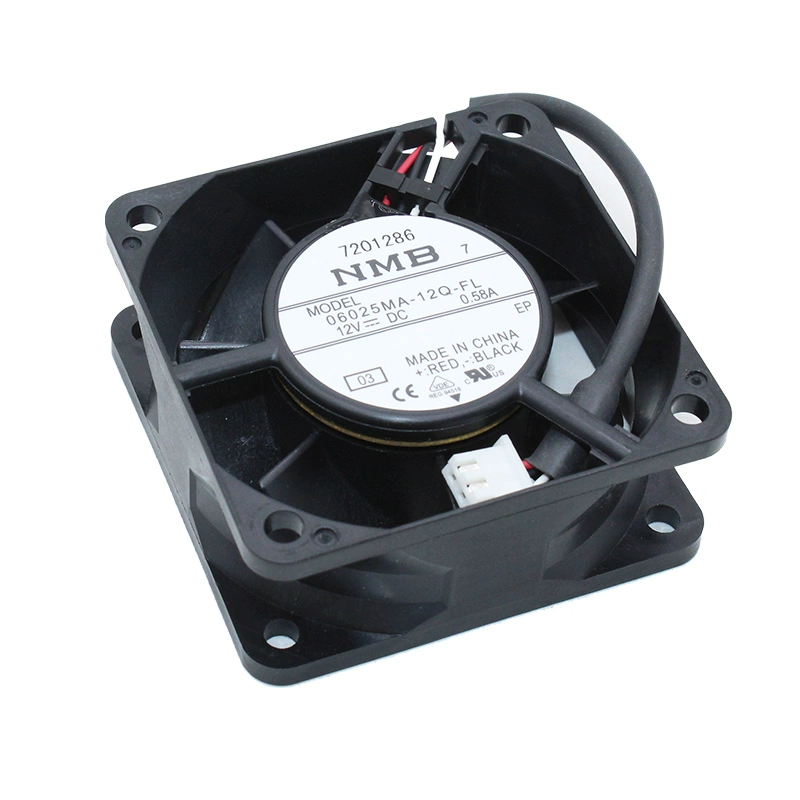

The NMB 06025MA-12Q-FL-03, now featuring a robust 0.58A current and an IP58 protection rating, is a powerful 12V DC axial cooling fan from NMB Technologies. Measuring 60x60x25mm, this variant is engineered for demanding environments where both high performance and resistance to dust and prolonged water immersion are critical. It consumes 6.96W to spin at an estimated 7800 RPM, delivering a strong 39.0 CFM airflow and an impressive 0.82 inch-H2O of static pressure. Equipped with durable ball bearings, it offers a reliable life expectancy of 60,000 hours at 40°C. Its 3-wire configuration includes a speed sensor, allowing for real-time monitoring of fan operation, making it an excellent choice for industrial, outdoor, or medical applications where controlled airflow and environmental resilience are paramount, all while operating at 47.0 dBA.
Model Number: 06025MA-12Q-FL-03
Manufacturer: NMB Technologies Corporation
Type: DC Axial Cooling Fan
Rated Voltage: 12V DC
Operating Voltage Range: 10.2V to 13.8V DC
Rated Current: 0.58A
Rated Power: 6.96W
Speed: 7800 RPM
Airflow: 39.0 CFM / 1.10 m³/min
Static Pressure: 0.82 inch-H2O / 203 Pa
Noise Level: 47.0 dBA
Dimensions: 60mm x 60mm x 25mm
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 60,000 hours at 40°C
Operating Temperature: -10°C to 70°C
Ingress Protection: IP58
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Speed Sensor, Polarity Protection
