Description

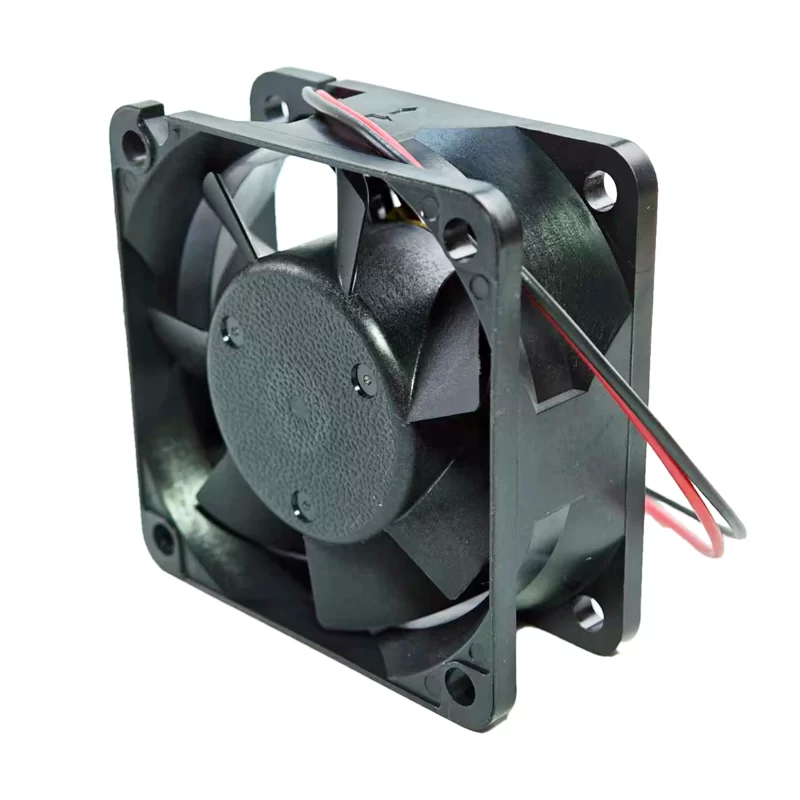

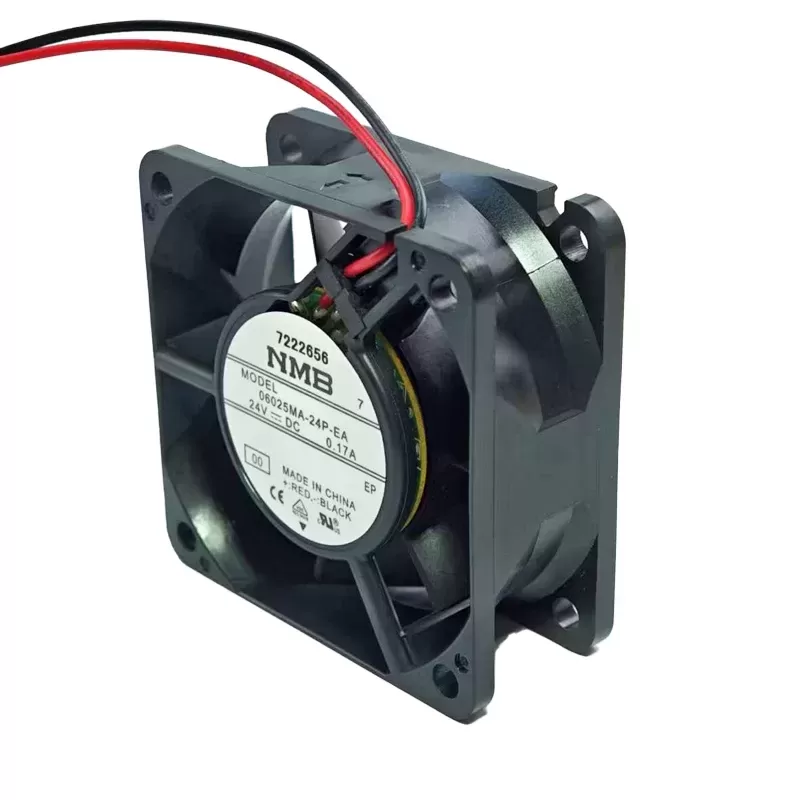

NMB new original 06025MA-24P-EA 24V 0.17A 6025 inverter fan
Model Number: 06025MA-24P-EA
Old number:2410ML-05W-B60
Manufacturer: NMB Technologies Corporation
Series: 06025MA
Fan Type: DC Brushless Axial Fan
Dimensions L x H x W: 60 mm x 60 mm x 25 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 10 VDC to 27.6 VDC
Rated Current: 0.09 A
Input Power: 2.2 W
Wiring: 3 Wire Leads
Bearing Type: Ball Bearing
Rotational Speed RPM: 4550 RPM
Maximum Airflow: 21.5 CFM or 0.61 m³/min
Maximum Static Pressure: 0.21 in H2O or 51.9 Pa
Noise Level: 33.5 dB
Frame Material: Plastic
Impeller Blade Material: Plastic
Protection Functions: Auto Restart, Polarity Protection, Tachometer Output
Operating Temperature Range: -10°C to +70°C
Expected Life L10: 100,000 Hours at 25°C
Mass: 65 g
The NMB 06025MA-24P-EA is a reliable 60x60x25mm DC axial fan from NMB Technologies, designed for efficient cooling in various electronic systems. Operating on 24VDC, it consumes 2.2W of power with a current draw of 0.09A. This fan features durable ball bearings for an exceptionally long operational life of 100,000 hours at 25°C. It delivers 21.5 CFM of airflow at 4550 RPM, providing adequate static pressure for its size, with a moderate noise level of 33.5 dB. The 3-wire configuration includes a tachometer output for real-time speed monitoring, along with auto restart and polarity protection, enhancing its reliability. This fan is a suitable choice for cooling smaller electronic enclosures, power supplies, industrial control equipment, and other devices where dependable airflow and monitoring capabilities are desired.
