Description

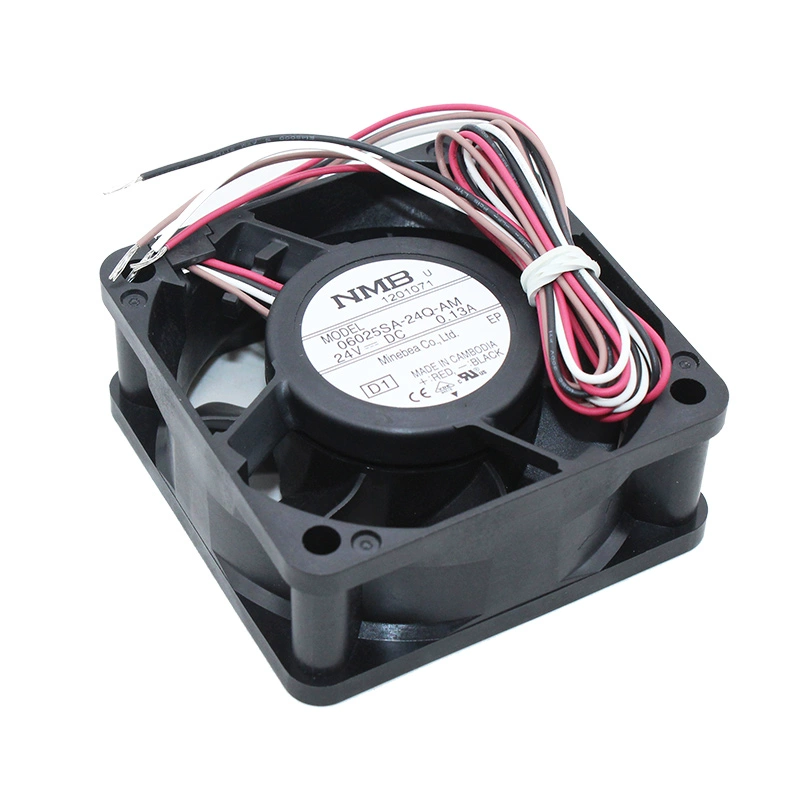

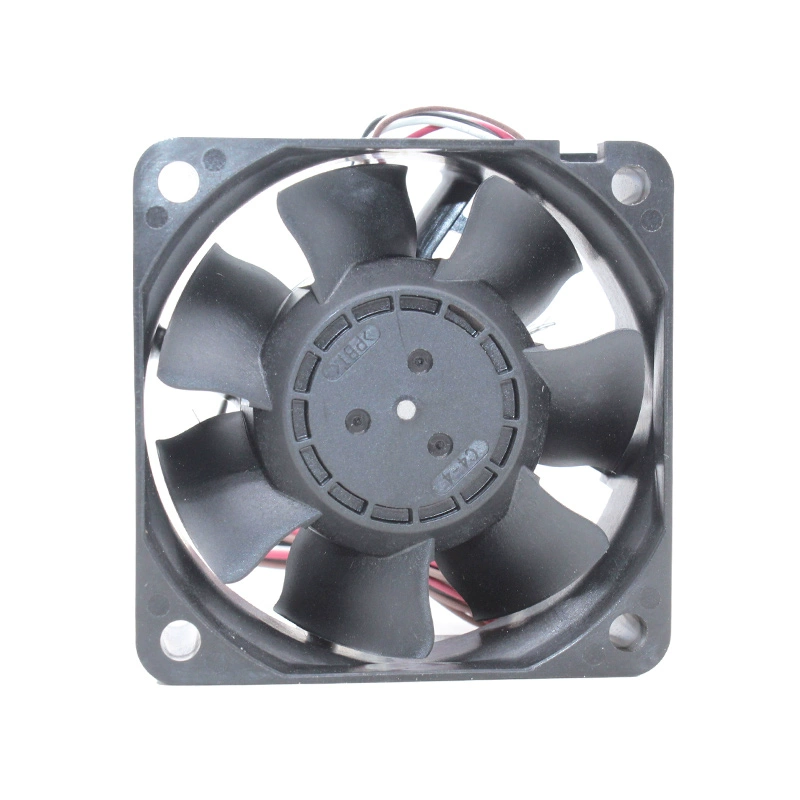

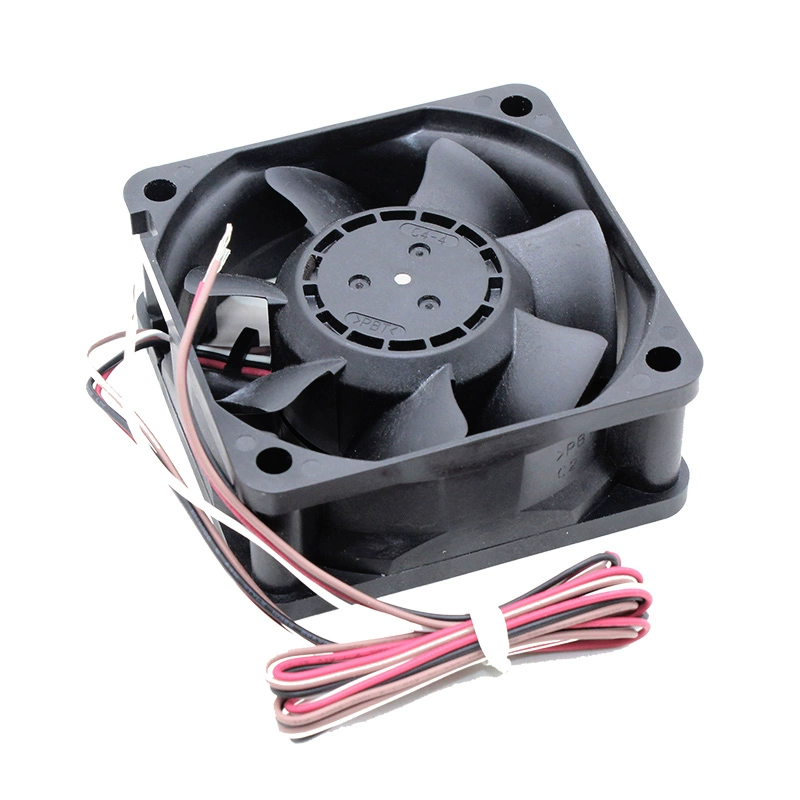

The NMB 06025SA-24Q-AM-D1 is a reliable 24V DC axial cooling fan measuring 60mm x 60mm x 25mm. Operating at a rated current of 0.13A (3.12W), this fan is engineered for effective thermal management in electronic equipment. It achieves a rotational speed of 3700 RPM, delivering 25.0 CFM of airflow with a static pressure of 0.25 inch-H2O (62.2 Pa). Its noise output is 30.0 dBA, offering a good balance between performance and quiet operation. The fan is equipped with ball bearings for a long operational life of 60,000 hours at 60°C. Connectivity is via 4-wire leads, which include a pulse sensor for speed monitoring and a PWM input for precise speed control. Integrated features also include auto-restart and polarity protection, ensuring dependable and controlled performance.
Model Number: 06025SA-24Q-AM-D1
Manufacturer: NMB Technologies Corporation
Type: DC Axial Cooling Fan
Dimensions: 60mm x 60mm x 25mm
Rated Voltage: 24V DC
Operating Voltage: 10.0V to 27.6V DC
Rated Current: 0.13A
Rated Power: 3.12W
Speed: 3700 RPM
Airflow: 25.0 CFM / 0.71 m³/min
Static Pressure: 0.25 inch-H2O / 62.2 Pa
Noise Level: 30.0 dBA
Connector: 4-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 60,000 hours at 60°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: PWM Control, Pulse Sensor, Auto Restart, Polarity Protection
