Description

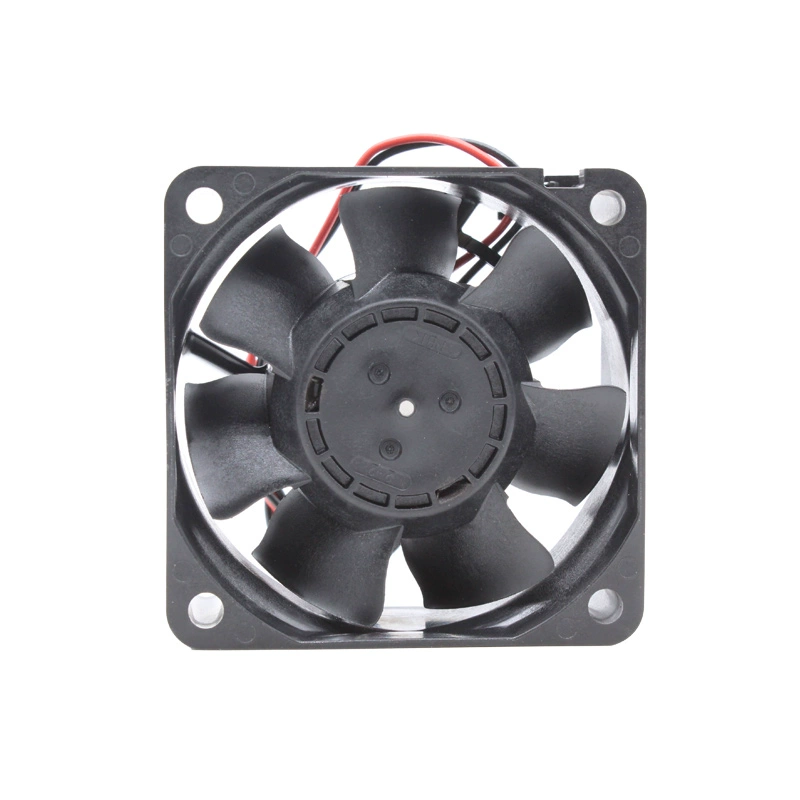

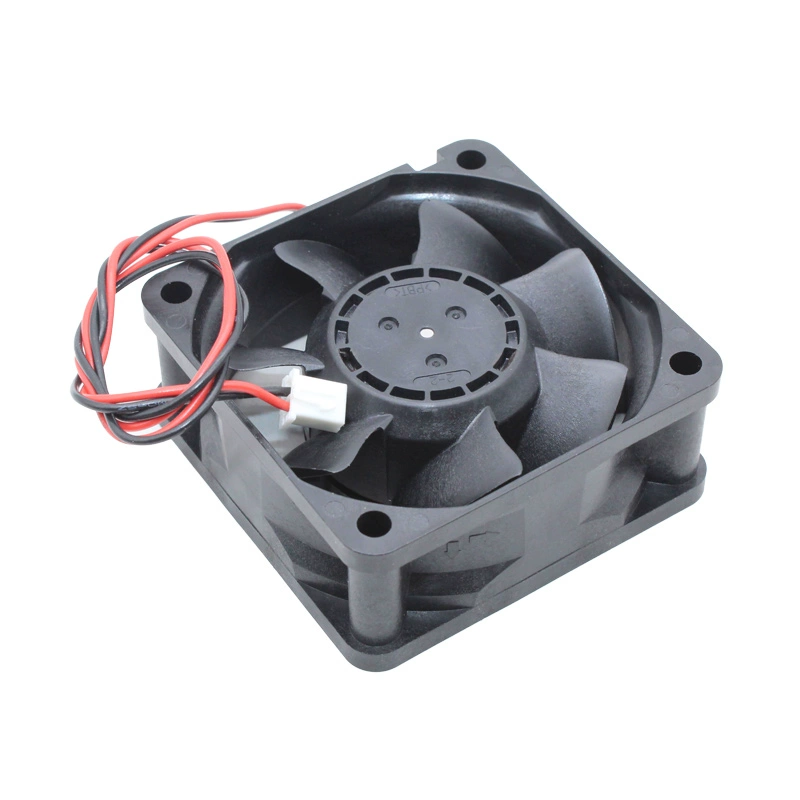

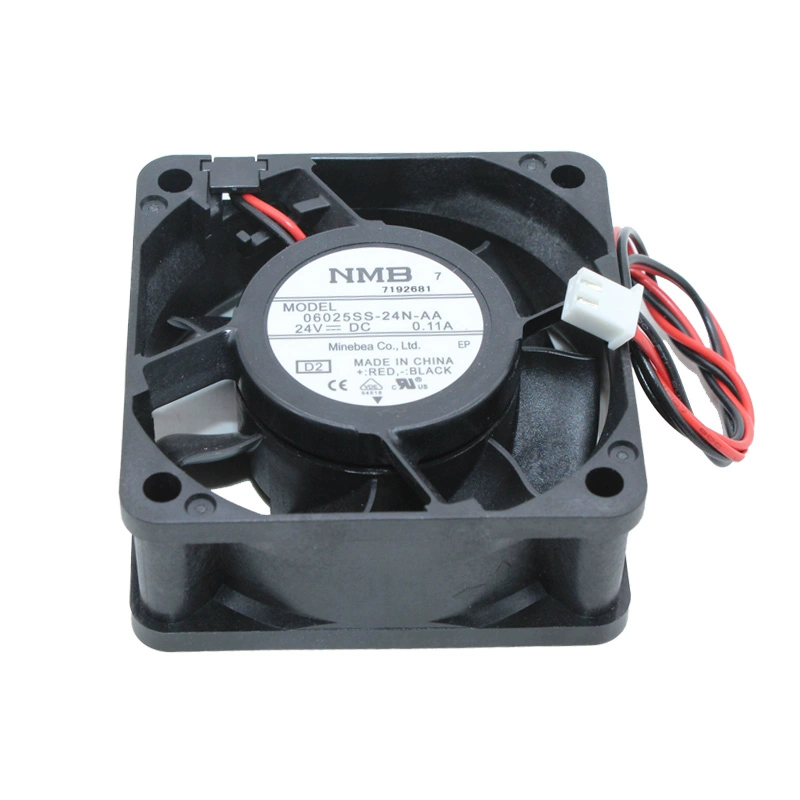

The NMB 06025SS-24N-AA-D2 is a reliable 24V DC axial cooling fan from NMB Technologies Corporation, measuring 60mm x 60mm x 25mm. Operating at a rated current of 0.11A (2.64W), this fan provides efficient airflow for various electronic cooling applications. It achieves a speed of 5000 RPM, delivering 25.0 CFM of airflow and a static pressure of 0.28 inch-H2O, while maintaining a moderate noise level of 35.0 dBA. Equipped with a sleeve bearing, it offers a respectable operational life of 50,000 hours at 40°C. The fan utilizes 2-wire leads, providing a straightforward power connection along with auto-restart and polarity protection, making it a suitable choice for systems requiring consistent airflow.
Model Number: 06025SS-24N-AA-D2
Manufacturer: NMB Technologies Corporation
Type: DC Axial Cooling Fan
Dimensions: 60mm x 60mm x 25mm
Rated Voltage: 24V DC
Rated Current: 0.11A
Rated Power: 2.64W
Speed: 5000 RPM
Airflow: 25.0 CFM / 0.71 m³/min
Static Pressure: 0.28 inch-H2O / 69.7 Pa
Noise Level: 35.0 dBA
Connector: 2-Wire Leads
Bearing Type: Sleeve Bearing
Life Expectancy: 50,000 hours at 40°C
Operating Temperature: -10°C to 60°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Polarity Protection
