Description
Manufacturer: NMB Technologies
Product Model: 06038RE-12S-GU
Dimensions L x W x H: 60 x 60 x 38 mm
Rated Voltage: 12 VDC
Rated Current: 1.30 A
Rated Power: 15.6 W
Rated Speed: 11,000 RPM
Max Airflow: 59.0 CFM
Max Static Pressure: 1.53 In H₂O
Noise Level: 58.0 dB(A)
Bearing Type: Ball Bearing
Life Expectancy L10: 80,000 hours at 25°C
Weight: 140 g
Housing Material: Plastic UL 94V-0
Impeller Material: Plastic UL 94V-0
Operating Voltage Range: 7.0 V to 13.8 VDC
Termination Style: 4 Wire Leads
Motor Type: DC Brushless Motor
Motor Protection: Auto Restart / Polarity Protection
Ingress Protection: IP68
Features: Tachometer output, PWM speed control
Operating Temperature Range: -10°C to +60°C
Storage Temperature Range: -40°C to +70°C
Insulation Resistance: 10MΩ
Dielectric Withstand Voltage: AC 500V for 1 minute or AC 700V for 1 second
06038RE-12S-GU NMB brand new 6038 12V 1.8A 6 cm waterproof fan four-wire temperature control

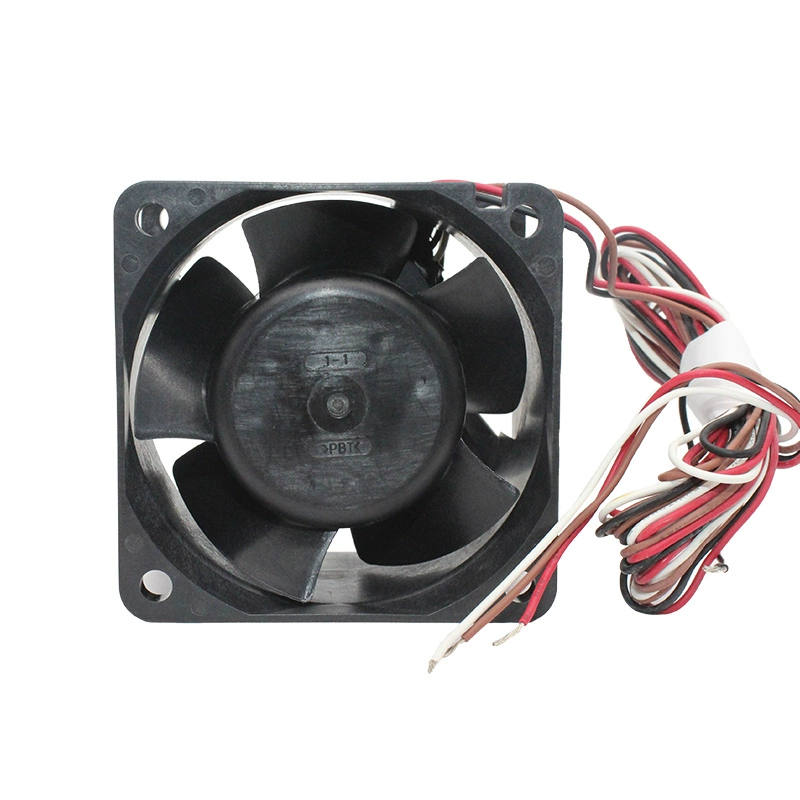

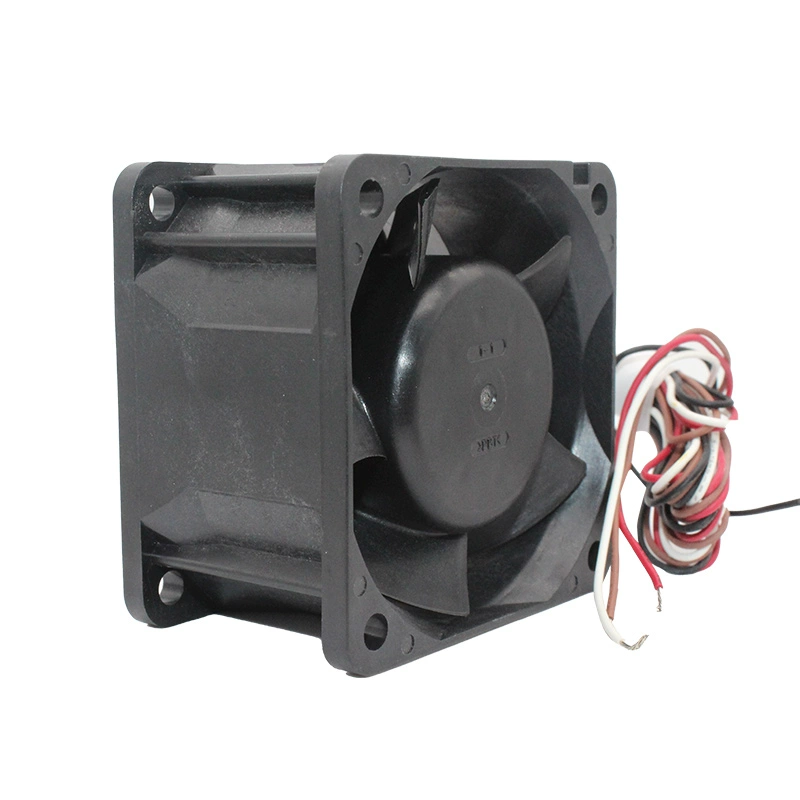

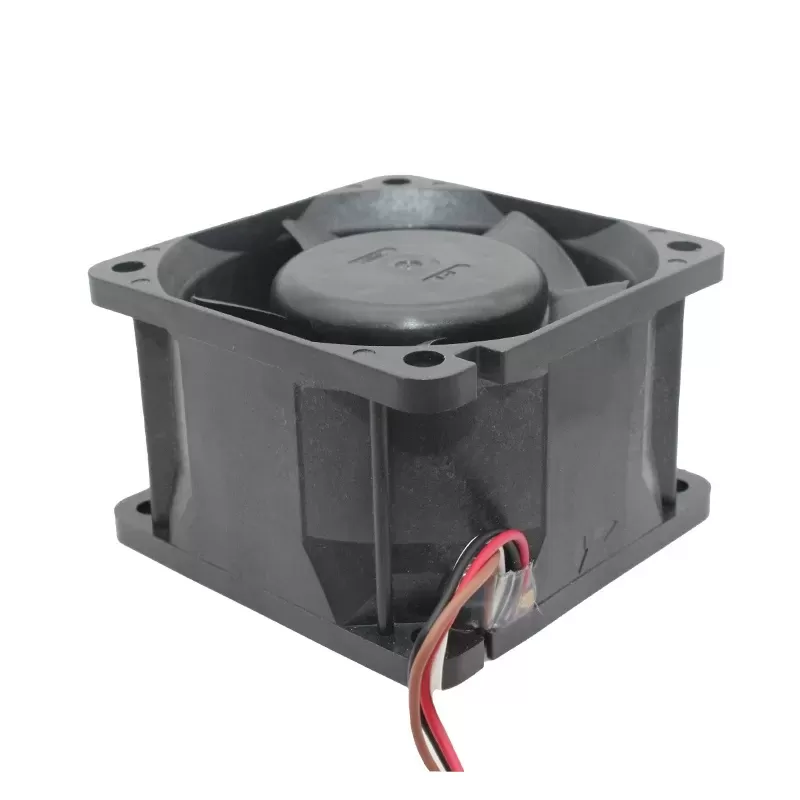

The NMB 06038RE-12S-GU is a high-performance 60x60x38mm, 12V DC axial fan engineered for demanding industrial and electronic applications. It boasts an impressive 11,000 RPM speed and delivers 59.0 CFM of airflow with high static pressure, making it exceptionally effective for cooling tightly packed systems. Featuring ball bearings for an 80,000-hour lifespan, IP68 dust and water protection, and PWM control with tachometer output, this fan provides robust, precise, and reliable cooling even in harsh environments.
