Description

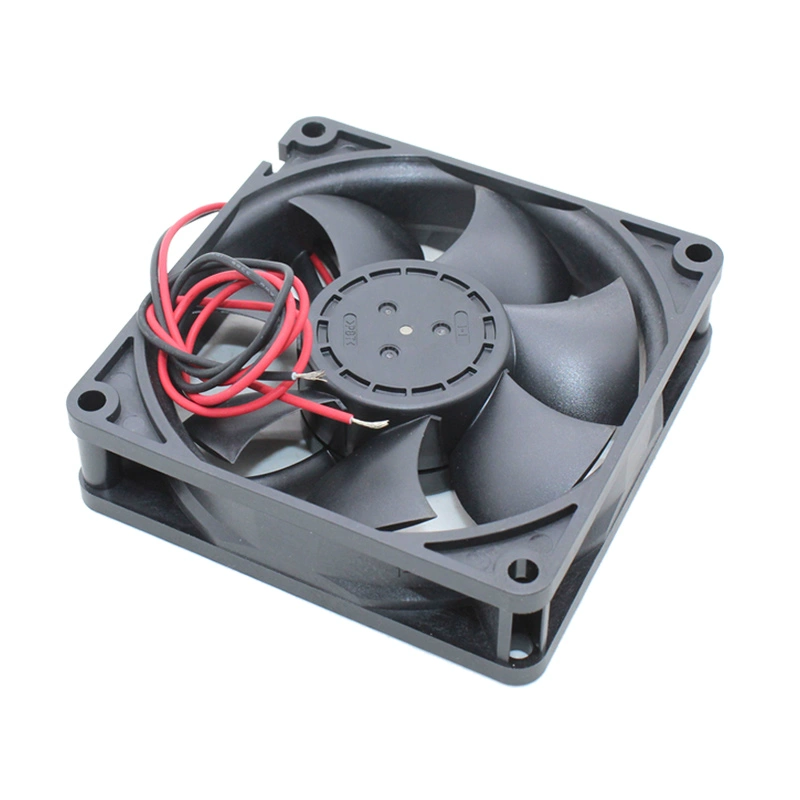

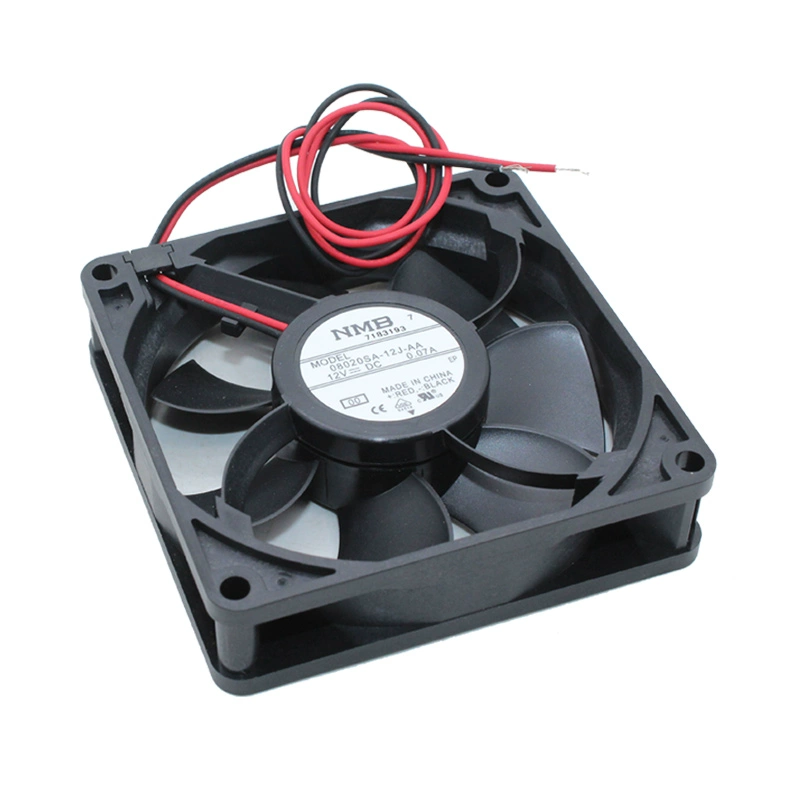

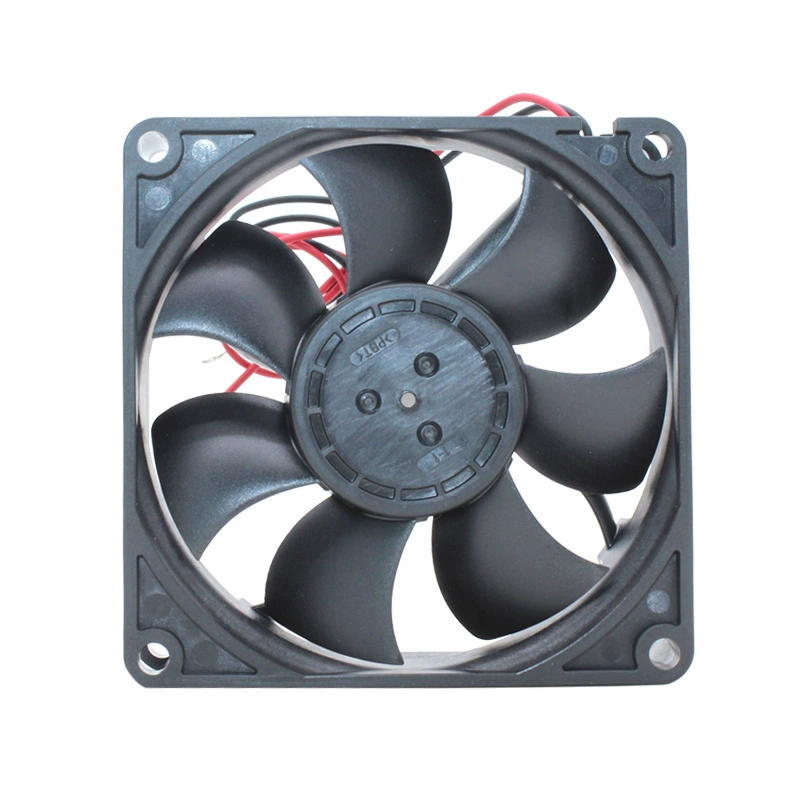

The NMB 08020SA-12J-AA-00 is a compact 12V DC axial cooling fan from NMB Technologies Corporation. Measuring 80mm x 80mm x 20mm, this fan is designed for efficient thermal management in various electronic systems, PCs, and general equipment. It operates at a rated current of 0.07A, consuming 0.84W of power. This allows it to achieve a speed of 2000 RPM, delivering an airflow of 29.7 CFM and a static pressure of 0.10 inch-H2O. Its noise level is 25.5 dBA, making it a relatively quiet option for its size. The fan features durable ball bearings for an extended operational lifespan of 60,000 hours at 40°C. It comes with 2-wire leads for simple power connection.
Model Number: 08020SA-12J-AA-00
Manufacturer: NMB Technologies Corporation
Type: DC Axial Cooling Fan
Dimensions: 80mm x 80mm x 20mm
Rated Voltage: 12V DC
Operating Voltage Range: 6.0V to 13.8V DC
Rated Current: 0.07A
Rated Power: 0.84W (calculated: 12V * 0.07A)
Speed: 2000 RPM
Airflow: 29.7 CFM (0.84 m³/min)
Static Pressure: 0.10 inch-H2O (25.1 Pa)
Noise Level: 25.5 dBA
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 60,000 hours at 40°C (L10 Life)
Frame Material: Plastic (Black, UL94V-0)
Impeller (Blade) Material: Plastic (Black, UL94V-0)
Features: Auto Restart, Polarity Protection
Operating Temperature: -10°C to +70°C
