Description

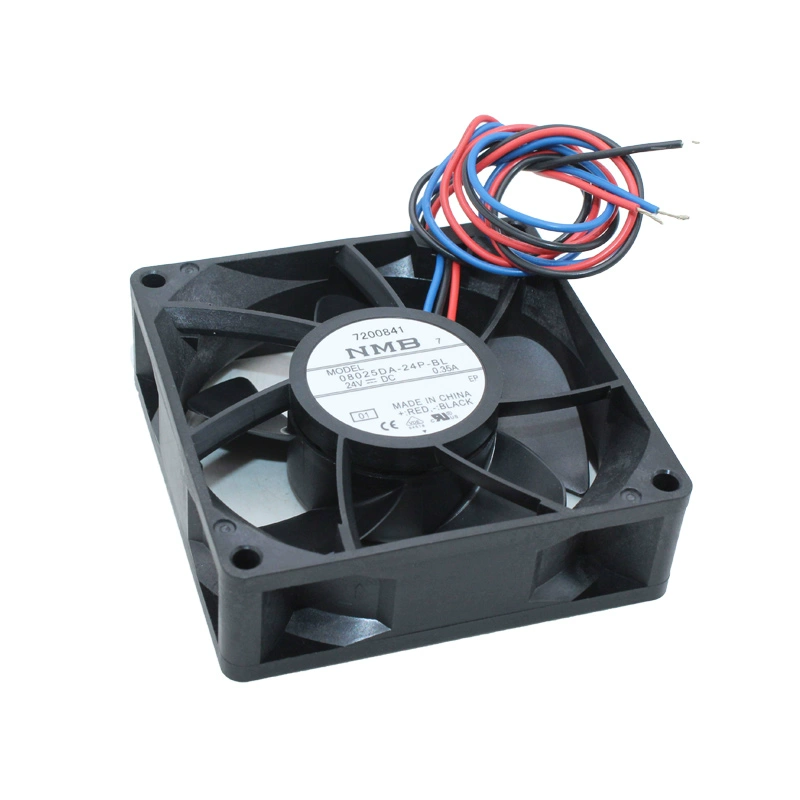

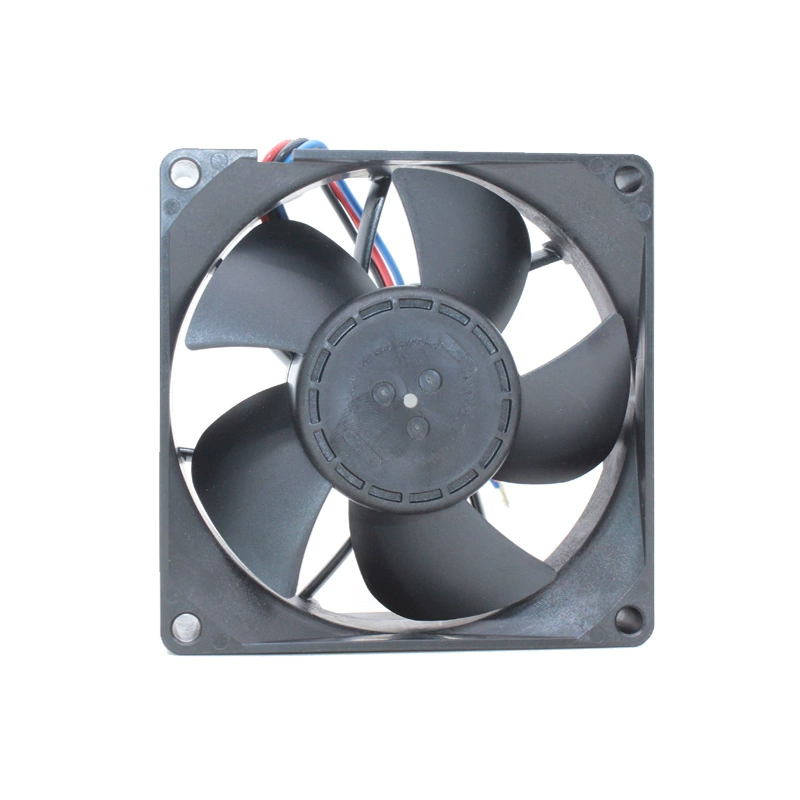

08025DA-24P-BL 8 cm 24V 8025 cooling fan NMB Minebea Chassis power fan
Model Number: 08025DA-24P-BL
Manufacturer: NMB Technologies Corporation
Series: 08025DA
Fan Type: DC Brushless Axial Fan
Dimensions L x H x W: 80 mm x 80 mm x 25 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 15 VDC to 27.6 VDC
Rated Current: 0.35 A
Input Power: 8.4 W
Wiring: 3 Wire Leads
Bearing Type: Ball Bearing
Rotational Speed RPM: 7000 RPM
Maximum Airflow: 73 CFM
Maximum Static Pressure: 0.75 in H2O
Noise Level: 55 dB
Frame Material: Plastic
Impeller Blade Material: Plastic
Protection Functions: Auto Restart, Locked Rotor Output/Sensor
Operating Temperature Range: -10°C to +60°C
Expected Life L10: 70,000 Hours at 40°C
Mass: 120 g
The NMB 08025DA-24P-BL is a high-performance 80x80x25mm DC axial fan from NMB Technologies, engineered for robust cooling in various electronic systems. Operating on 24VDC, it consumes 8.4W of power with a current draw of 0.35A. This fan features durable ball bearings for a long operational life of 70,000 hours at 40°C. It delivers a powerful airflow of 73 CFM at a high speed of 7000 RPM, generating a significant static pressure of 0.75 in H2O. With a noise level of 55 dB, it is designed for applications where strong airflow is prioritized. The 3-wire configuration includes a locked rotor output for system monitoring and auto restart capability, enhancing its reliability. This fan is an excellent choice for cooling servers, high-density computing equipment, industrial control cabinets, and other systems requiring effective and dependable thermal management.
