Description

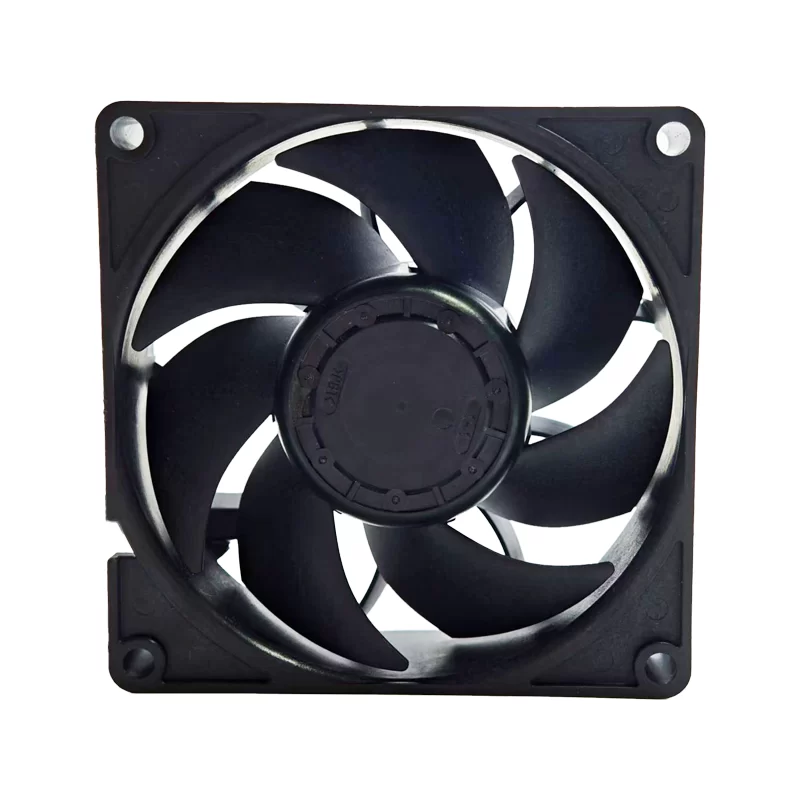

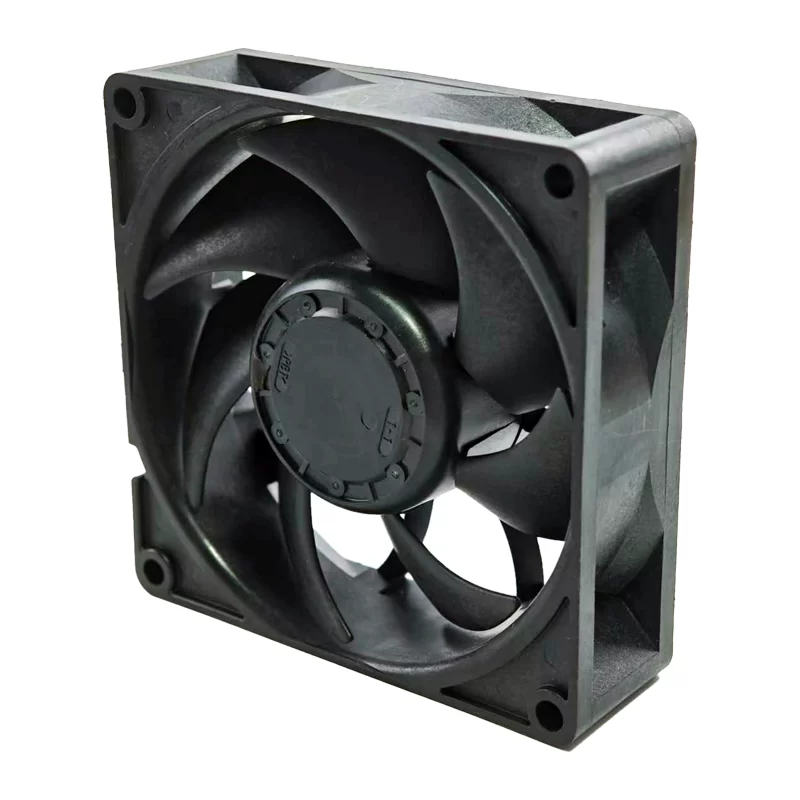

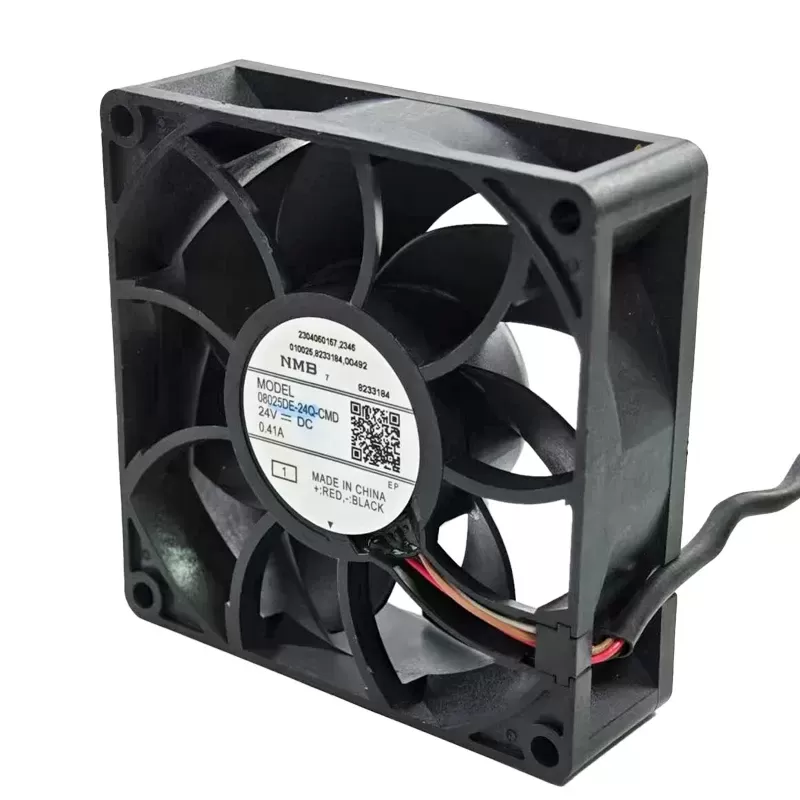

The NMB 08025DE-24Q-CMD is a 24V DC axial fan, precisely measuring 80mm x 80mm x 25mm, manufactured by NMB. This fan is engineered for efficient thermal management in various electronic and industrial applications. It features durable ball bearings, ensuring a reliable operational lifespan of 70,000 hours at 40°C. Drawing 0.41A of current, it consumes 9.84W of power. This fan operates at 5000 RPM, delivering 80 CFM of airflow and generating 0.70 inches of H2O static pressure, with a noise level of 55 dBA. Equipped with 4-wire termination, it includes PWM control for precise speed adjustment and a tachometer output for real-time RPM monitoring. The NMB 08025DE-24Q-CMD is an excellent choice for cooling server equipment, networking devices, industrial control systems, and other electronics that require reliable thermal management.
NMB brand new original 08025DE-24Q-CMD 24V 0.41A 8025 8CM inverter fan
Model: 08025DE-24Q-CMD NMB
Type: DC Axial Fan
Dimensions: 80mm x 80mm x 25mm
Nominal Voltage: 24V DC
Current: 0.41A
Power Consumption: 9.84W
Speed: 5000 RPM
Airflow: 80 CFM
Static Pressure: 0.70 In H2O
Noise Level: 55 dBA
Bearing Type: Ball Bearing
Life Expectancy: 70,000 Hours (at 40°C)
Termination: 4-wire
Frame Material: Plastic
Blade Material: Plastic
Features: PWM Control, Tachometer, Brushless DC motor, Polarity Protection.
