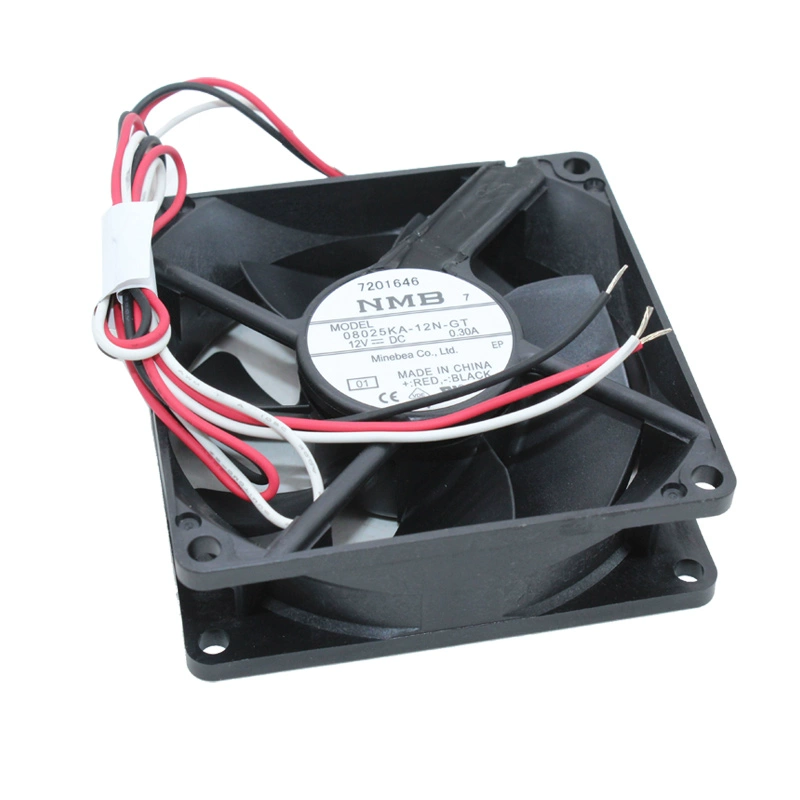

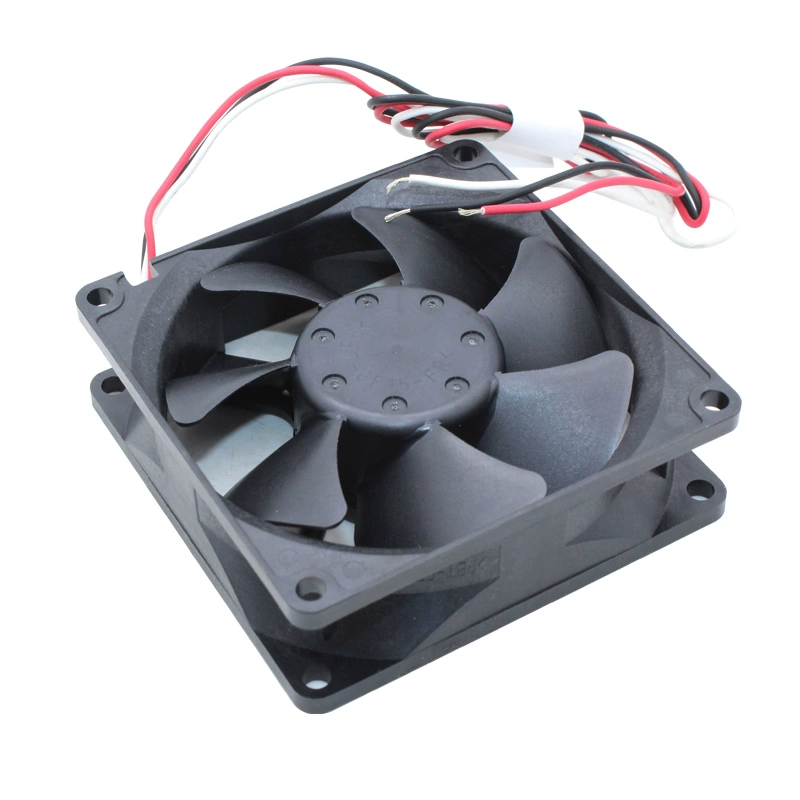

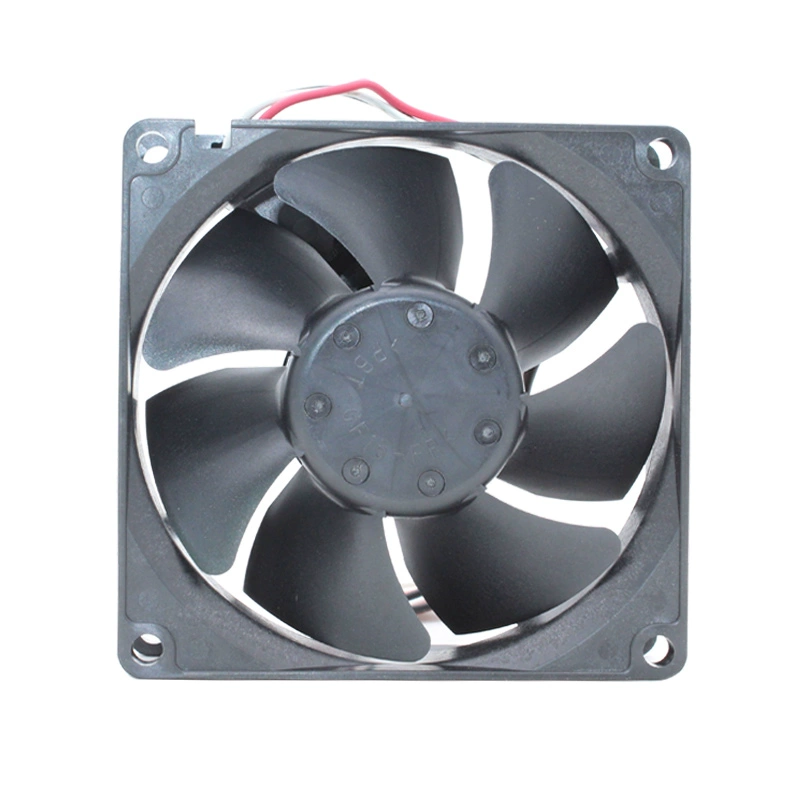

08025KA-12N-GT NMB fan 8025 12V 3110KL-04W-B59 IP68 waterproof fan
Model Number: 08025KA-12N-GT
Manufacturer: NMB Technologies Corporation
Fan Type: DC Brushless Axial Fan
Dimensions L x H x W: 80 mm x 80 mm x 25 mm
Rated Voltage: 12 VDC
Rated Current: 0.30 A
Input Power: 3.6 W
Wiring: 3 Wire Leads
Bearing Type: Ball Bearing
Rotational Speed RPM: Approximately 3250 RPM to 3800 RPM
Maximum Airflow: Approximately 38.8 CFM to 41.3 CFM
Maximum Static Pressure: Approximately 0.15 In H2O
Noise Level: Approximately 34 dB
Frame Material: Plastic
Impeller Blade Material: Plastic
Special Features: Often noted as Waterproof, Moisture-proof, or IP68 rated
Protection Functions: Likely includes Auto Restart, Polarity Protection, and a Tachometer Output
Operating Temperature Range: -10°C to +70°C
Expected Life: Often noted with long life expectancy for ball bearings
The NMB 08025KA-12N-GT is a reliable 80x80x25mm DC axial fan known for its durability and often its water/dust resistance. Operating on 12VDC, it consumes 3.6W of power with a 0.30A current draw. This fan features ball bearings for a long operational life and delivers an airflow of approximately 38.8 CFM to 41.3 CFM at around 3250 RPM to 3800 RPM, with a moderate noise level of about 34 dB. Its 3-wire configuration typically provides a tachometer output for speed monitoring. The “GT” suffix often indicates enhanced environmental protection, such as being waterproof, making it an excellent choice for cooling inverters, industrial machinery, and electronic enclosures in environments that may experience moisture, dust, or other contaminants.
