Description

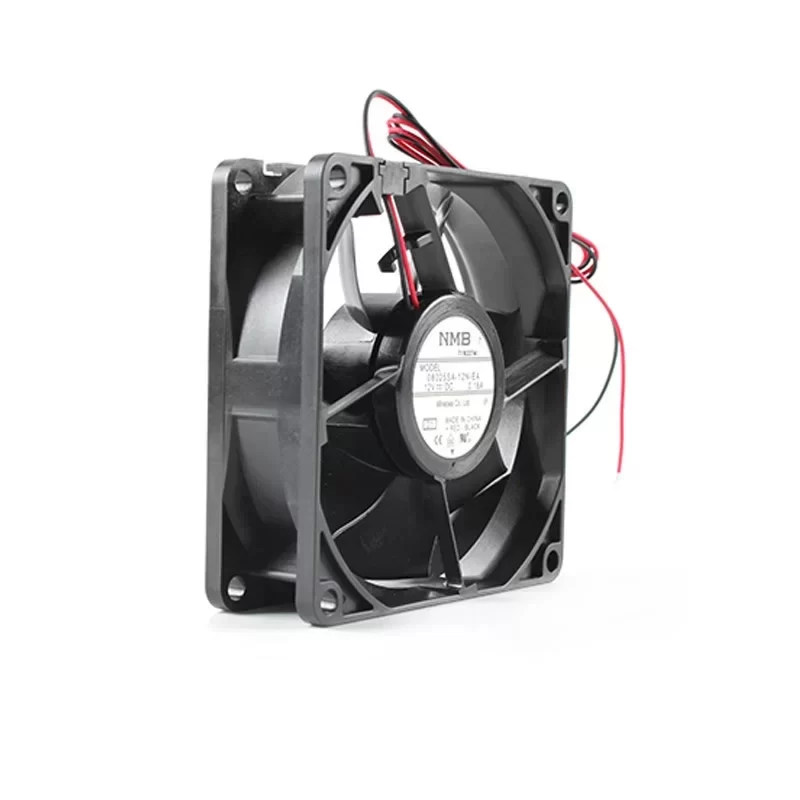

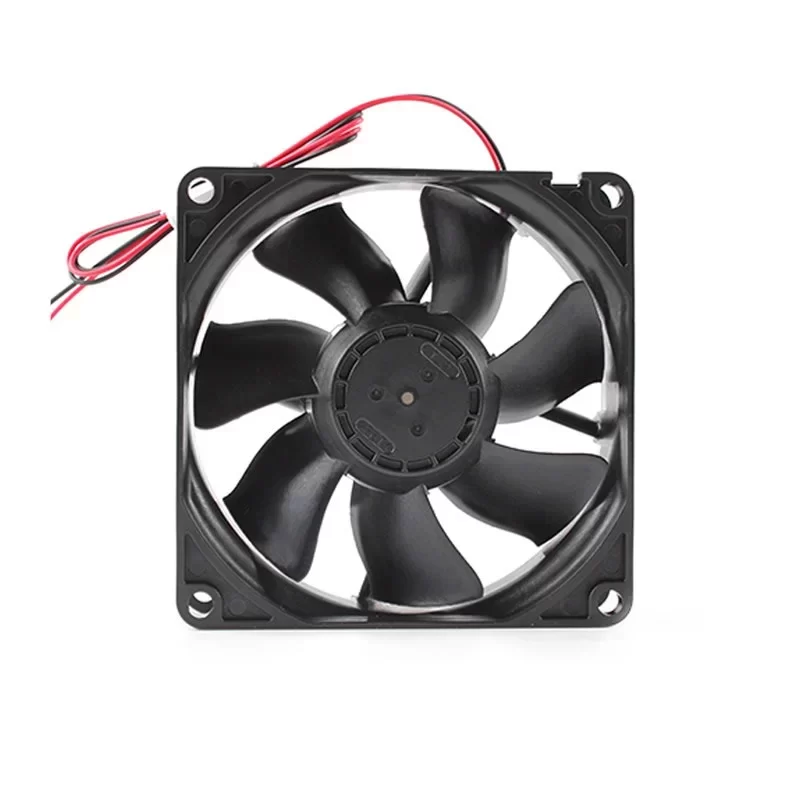

The NMB 08025SA-12N-EA-D1 is a high-performance 12VDC DC Axial Fan with dimensions of 80 x 80 x 25 mm, specifically engineered for mission-critical cooling in Industrial Frequency Converters and specialized power electronics. Driven by a high-torque brushless motor with precision dual ball bearings, this 80.0 g unit operates within a 7.0 – 13.8 VDC range, delivering a Max. Power Consumption of 2.16 W and a Max. Current Draw of 0.18 A at a rated speed of 3100 RPM. This High-performance unit features a 7-blade aerodynamic impeller designed for maximum static pressure, achieving a Max. Air Flow of 70.0 m³/h (41.2 CFM / 1.17 m³/min) and a Max. Static Pressure of 3.82 mmH₂O (37.50 Pa / 0.15 inAq). Featuring a maintenance-free structure and integrated motor protection, this IP54-rated fan is optimized for environments requiring high-pressure stability and long-term reliability in industrial VFD and power electronics systems at the end.
08025SA-12N-EA-D1 Fan Parameters
Model Number: 08025SA-12N-EA-D1
Manufacturer: NMB Technologies Corporation
Type: DC Axial Fan
Impeller Size: 80 mm
Dimensions: 80 x 80 x 25 mm
Weight: 80.0 g
Bearing Type: Dual ball bearing
Nominal Voltage: 12 VDC
Voltage Range: 7.0 – 13.8 VDC
Max. Current Draw: 0.18 A
Max. Power Consumption: 2.16 W
Rated Speed: 3100 RPM
Max. Air Flow: 41.2 CFM (70.0 m³/h / 1.17 m³/min)
Max. Static Pressure: 3.82 mmH₂O (37.50 Pa / 0.15 inAq)
Working Air Flow: 70.0 m³/h
Static Pressure Increase: 37.50 Pa
Motor Protection: Polarity and locked-rotor protection; Auto-restart
Insulation Class: Class E
Degree of Protection: IP54
Electrical Hookup: 2-Wires (Lead wires, AWG#24)
Number of Blades: 7
Direction of Rotation: Clockwise (viewed toward rotor)
Impeller Material: Thermoplastic PBT (UL 94V-0)
Frame Material: Thermoplastic PBT (UL 94V-0)
Sound Pressure Level: 30.0 dB(A)
Service Life: 70,000 h (at 40 °C)
Operating Temperature: -10 – +70 °C
Standard Compliance: CE; UL; CSA; VDE
Application
The NMB 08025SA-12N-EA-D1 axial fan is the primary cooling component for industrial frequency converters, communication equipment, and high-density power modules requiring efficient airflow and high-pressure stability in 12VDC environments.
