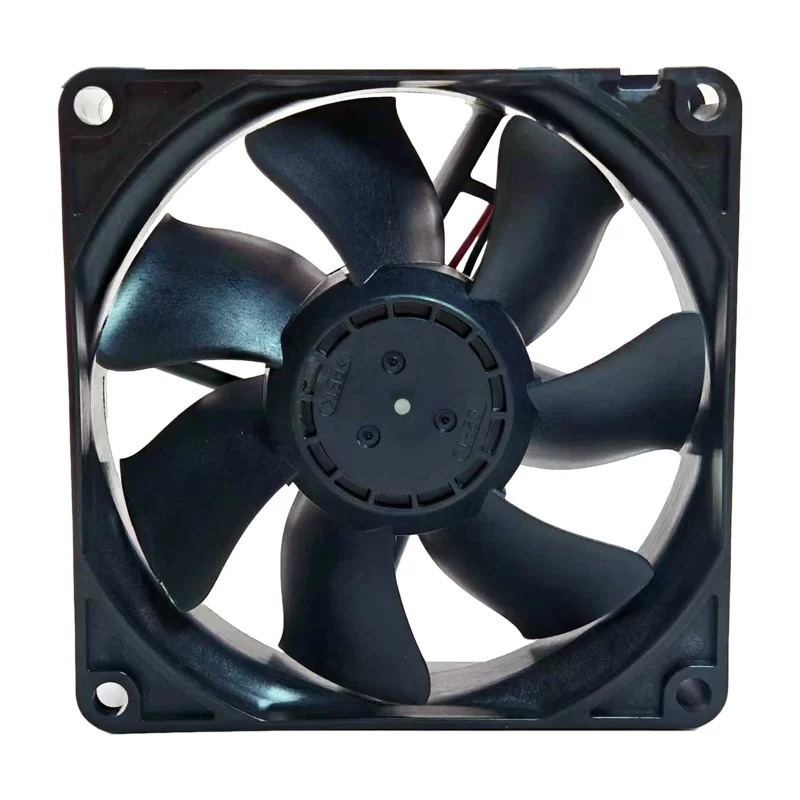

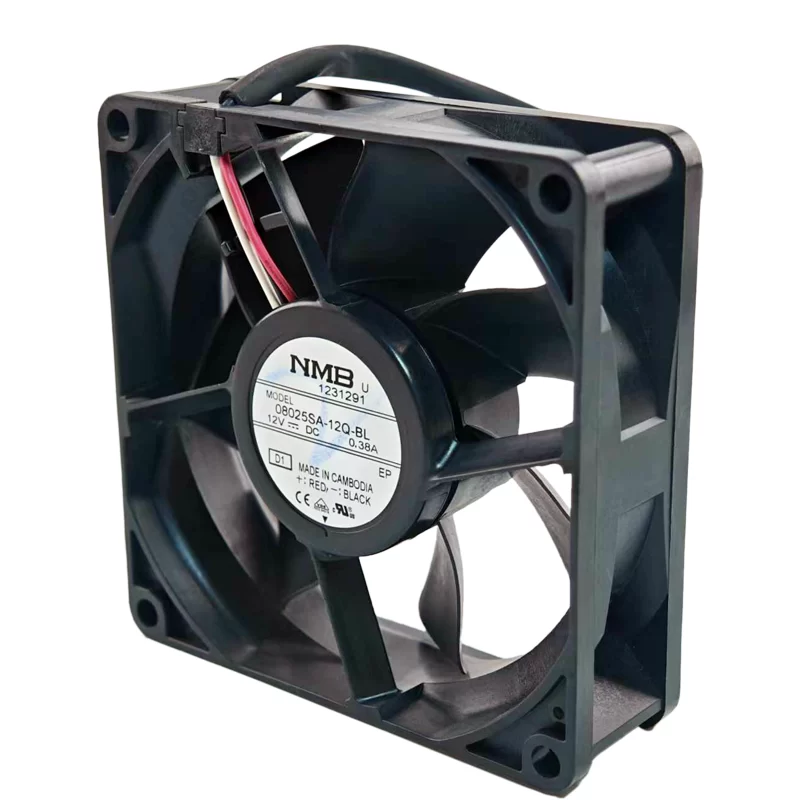

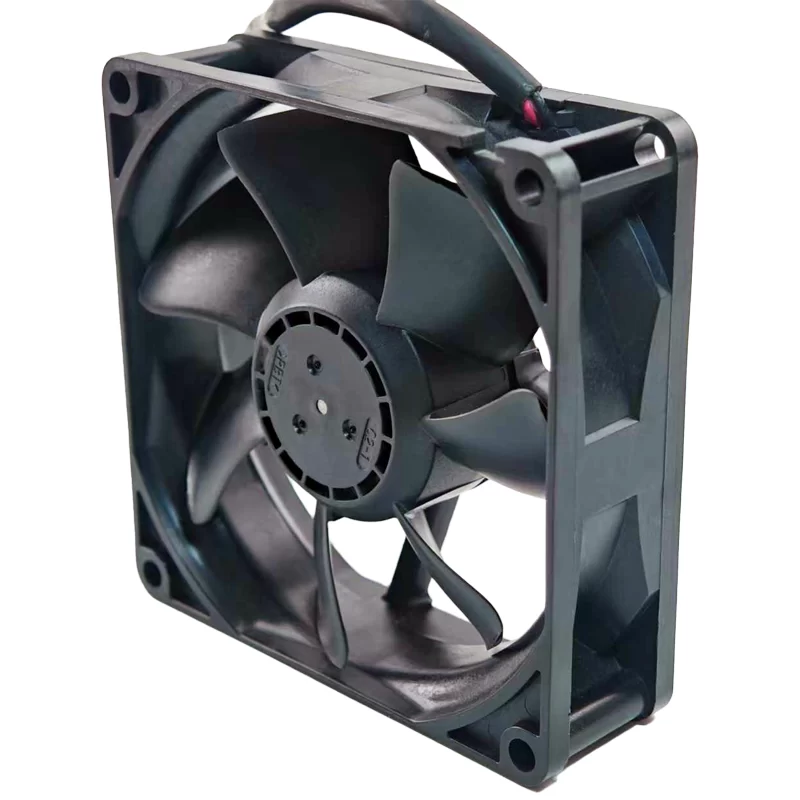

08025SA-12Q-BL NMB 12V 0.38A waterproof fan

Description

The NMB 08025SA-12Q-BL is a high-performance 12V DC axial fan, measuring 80mm x 80mm x 25mm, manufactured by NMB Technologies Corporation. This fan is designed for robust cooling in various electronic systems requiring substantial airflow. Featuring durable ball bearings, it offers a long and reliable operational lifespan of 70,000 hours at 40°C. Drawing 0.38A of current, it consumes 4.56W of power. This fan operates at an estimated 4800 RPM, delivering 64 CFM of airflow and generating 0.40 inches of H2O static pressure, with a 44 dBA noise level. Equipped with 2-wire leads, the NMB 08025SA-12Q-BL is an excellent choice for cooling components in industrial equipment, power supplies, computer systems, and other electronic enclosures that require effective and reliable thermal management.
NMB brand new original authentic 08025SA-12Q-BL 12V 0.38A waterproof fan 8CM cooling fan
Model: 08025SA-12Q-BL
Manufacturer: NMB Technologies Corporation
Type: DC Axial Fan
Dimensions: 80mm x 80mm x 25mm
Nominal Voltage: 12V DC
Operating Voltage Range: 6V to 13.8V DC
Current: 0.38A
Power Consumption: 4.56W
Speed: 4800 RPM
Airflow: 64 CFM
Static Pressure: 0.40 In H2O (101.6 Pa)
Noise Level: 44 dBA
Bearing Type: Ball Bearing
Life Expectancy: 70,000 Hours (at 40°C, L10)
Termination: 2-wire leads
Frame Material: Plastic
Impeller Material: Plastic
Features: Brushless DC motor, polarity protected, auto restart.
