Description

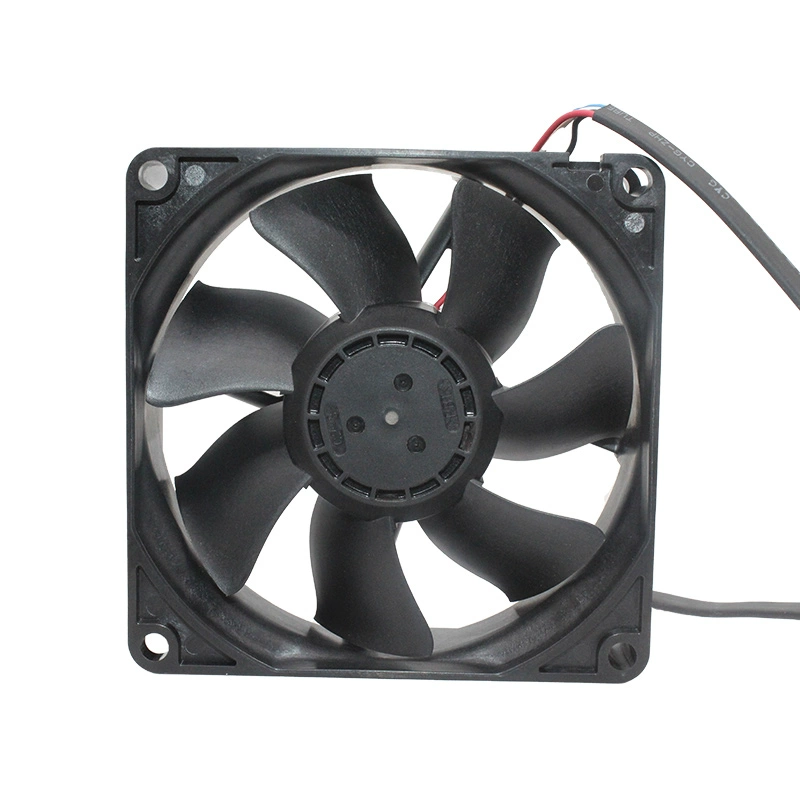

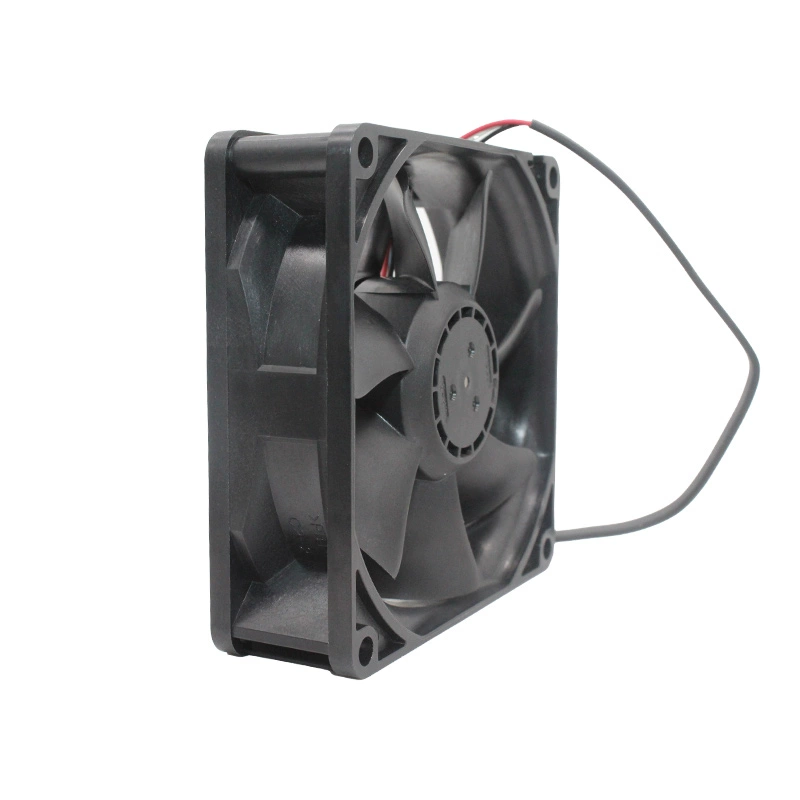

The NMB 08025SA-24P-AU-D1 is a reliable 24V DC axial cooling fan. Measuring 80mm x 80mm x 25mm, this fan is well-suited for cooling applications in computer cases, power supplies, industrial control cabinets, and other electronic assemblies where efficient and controllable airflow is required. It operates at a rated voltage of 24V DC and draws a current of 0.15A, resulting in a power consumption of 3.6W. This allows it to achieve a rotational speed of 3500 RPM, delivering an airflow of 46.96 CFM and a static pressure of 0.203 inch-H2O. Its noise level is 34 dBA. The fan features durable ball bearings for an extended operational lifespan of 40,000 hours at 60°C. It comes with 4-wire leads for power, ground, PWM speed control, and a tachometer output for speed monitoring, along with auto-restart and polarity protection.
Model Number: 08025SA-24P-AU-D1
Manufacturer: NMB Technologies Corporation
Series: SA Series
Type: DC Axial Cooling Fan (Tubeaxial)
Dimensions: 80mm x 80mm x 25mm
Rated Voltage: 24V DC
Operating Voltage Range: 12V to 27.6V DC
Rated Current: 0.15A
Rated Power: 3.6W (calculated: 24V * 0.15A)
Speed: 3500 RPM
Airflow: 46.96 CFM (1.33 m³/min)
Static Pressure: 0.203 inch-H2O (50.5 Pa)
Noise Level: 34 dBA
Connector: 4-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 40,000 hours at 60°C (L10 Life)
Frame Material: Plastic (UL94V-0)
Impeller (Blade) Material: Plastic (UL94V-0)
Features: Auto Restart, Polarity Protection, PWM Control, Tachometer Output
Operating Temperature: -10°C to +70°C
Weight: 80g
Approvals/Certifications: UL, CSA, TUV, CE, RoHS Compliant
