Description

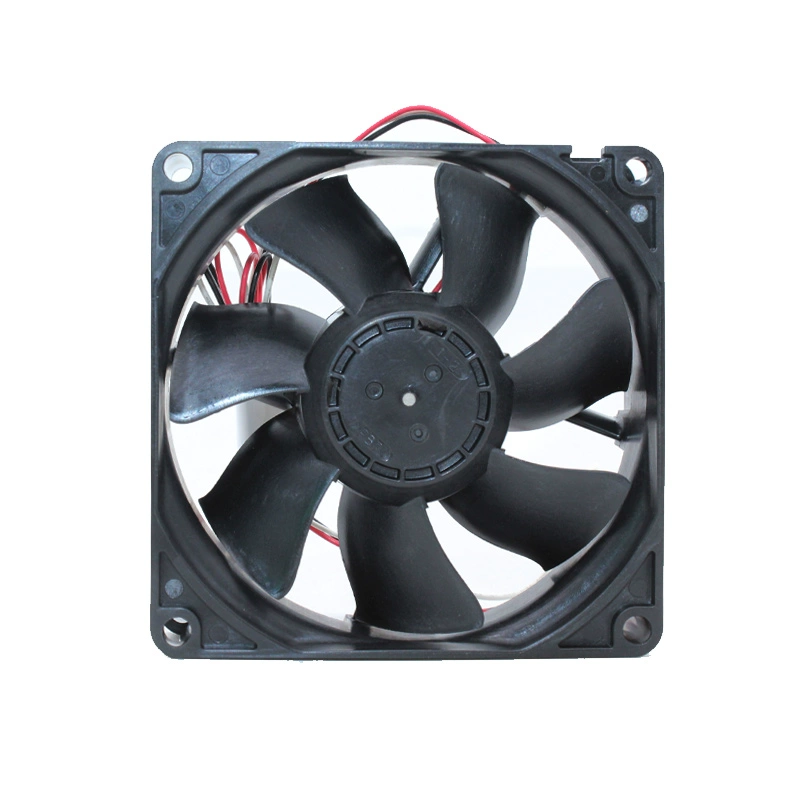

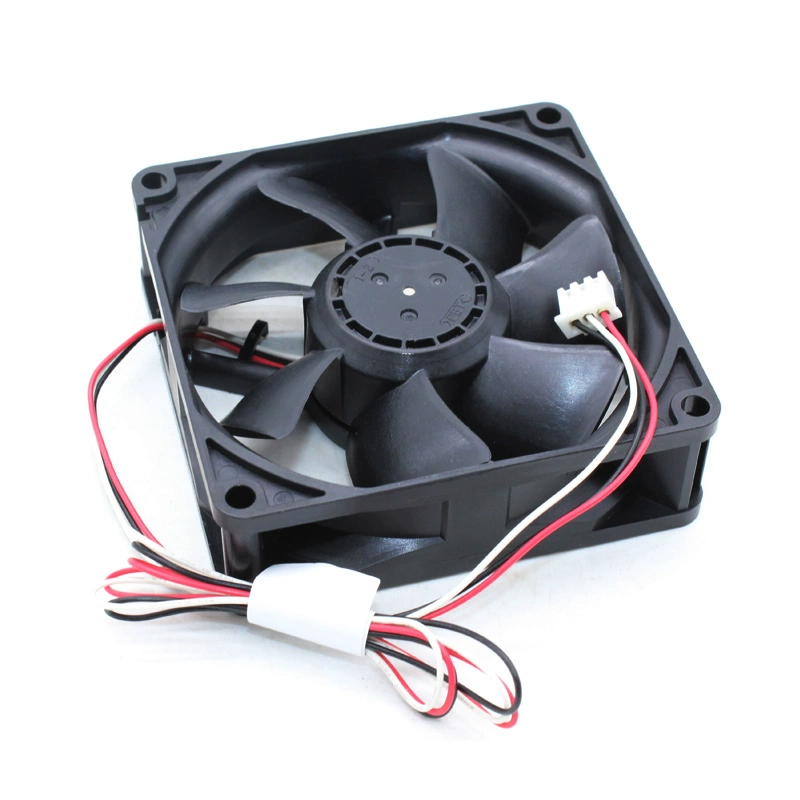

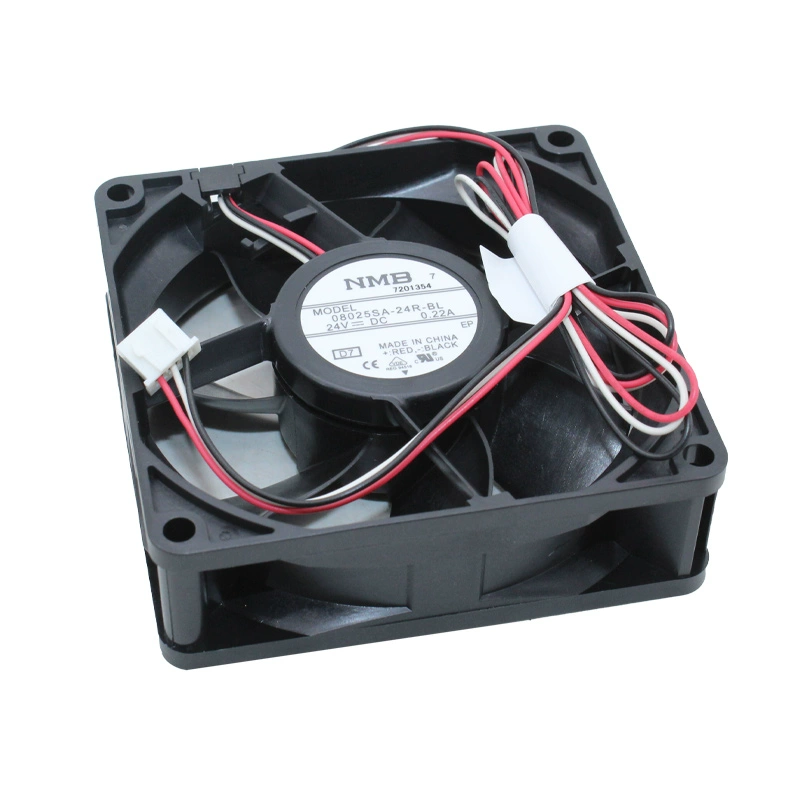

The NMB 08025SA-24R-BL-D7 is a high-performance DC Axial Cooling Fan from NMB Technologies, engineered for robust thermal management in various electronic systems. Operating on 24V DC power, it draws 0.22A of current, resulting in a 5.28W power consumption. Measuring 80mm x 80mm x 25mm, this fan is a strong choice for cooling applications in servers, industrial equipment, and power supplies. It rotates at a high speed of 5500 RPM, delivering a substantial airflow of 72.8 CFM and a static pressure of 0.45 inch-H2O. With a noise level of 49 dBA, it provides effective cooling commensurate with its performance class. Equipped with 3-wire leads, it includes tachometer output for speed monitoring and locked rotor sensor for fault detection, utilizing durable ball bearings. The fan boasts a life expectancy of 40,000 hours at 60°C and is designed to operate reliably within a temperature range of -10°C to 60°C, also featuring auto restart and polarity protection.
08025SA-24R-BL Minebea NMB 8025 8cm 24V 0.22A Server Chassis Cooling Fan
Model Number: 08025SA-24R-BL-D7
Manufacturer: NMB Technologies
Type: DC Axial Cooling Fan
Rated Voltage: 24V DC
Operating Voltage Range: 12V to 26.4V DC
Rated Current: 0.22A
Rated Power: 5.28W
Speed: 5500 RPM
Airflow: 72.8 CFM
Static Pressure: 0.45 inch-H2O
Noise Level: 49 dBA
Dimensions: 80mm x 80mm x 25mm
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 40,000 hours at 60°C
Operating Temperature: -10°C to 60°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Locked Rotor Sensor, Tachometer Output, Polarity Protection
