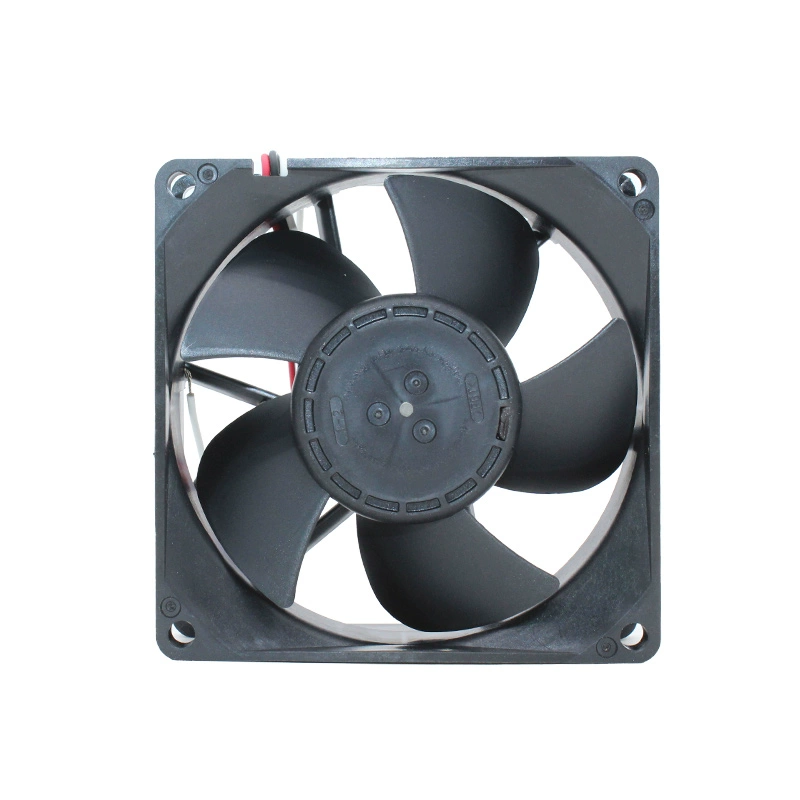

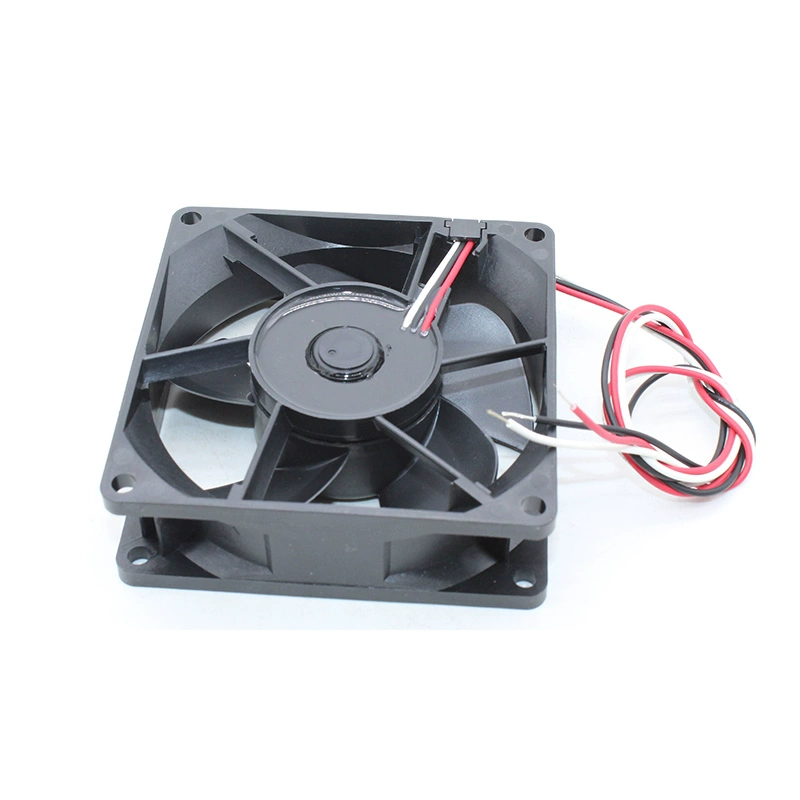

08025VE-12P-GLD NMB 12V 0.68A inverter waterproof cooling fan

Description

08025VE-12P-GLD NMB 12V 0.68A inverter waterproof cooling fan
Model Number: 08025VE-12P-GLD
Manufacturer: NMB Technologies Corporation
Series: 08025VE
Fan Type: DC Brushless Axial Fan
Dimensions L x H x W: 80 mm x 80 mm x 25 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 7 VDC to 13.8 VDC
Rated Current: 0.68 A
Input Power: 8.16 W
Wiring: 3 Wire Leads
Bearing Type: Ball Bearing
Rotational Speed RPM: 7000 RPM
Maximum Airflow: 73 CFM or 2.07 m³/min
Maximum Static Pressure: 0.75 in H2O or 186.8 Pa
Noise Level: 53 dB
Frame Material: Plastic
Impeller Blade Material: Plastic
Ingress Protection: IP68 – Dust Tight, Waterproof
Control Functions: Auto Restart, Polarity Protection
Operating Temperature Range: -10°C to +60°C
Expected Life L10: 40,000 Hours at 60°C
Mass: 120 g
Product Summary
The NMB 08025VE-12P-GLD is a high-performance 80x80x25mm DC axial fan engineered for demanding environments. Operating on 12VDC, it consumes 8.16W of power with a current draw of 0.68A. This fan features robust ball bearings for durable and long-lasting operation, with an expected life of 40,000 hours at 60°C. It delivers a powerful airflow of 73 CFM at a high speed of 7000 RPM, generating a significant static pressure of 0.75 in H2O, with a noise level of 53 dB.

Its key distinguishing feature is its IP68 rating, providing complete protection against dust ingress and continuous immersion in water, making it exceptionally reliable in harsh conditions. The 3-wire configuration includes auto restart and polarity protection, further enhancing its operational reliability. This fan is an excellent choice for cooling applications in industrial automation, telecommunications equipment, servers, inverters, and any other systems requiring robust and high-performance cooling in challenging or exposed environments.
