Description

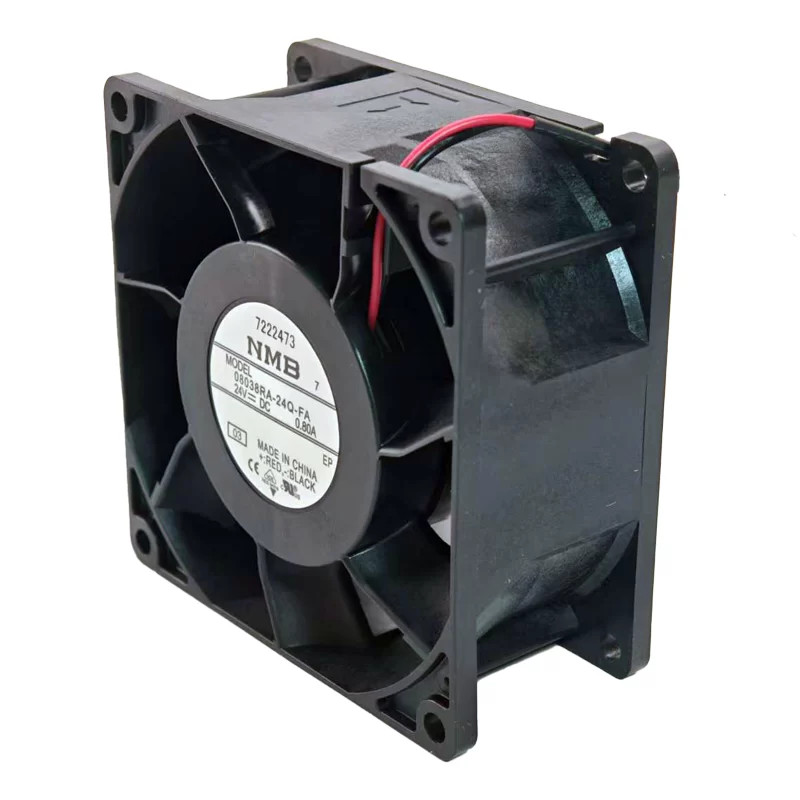

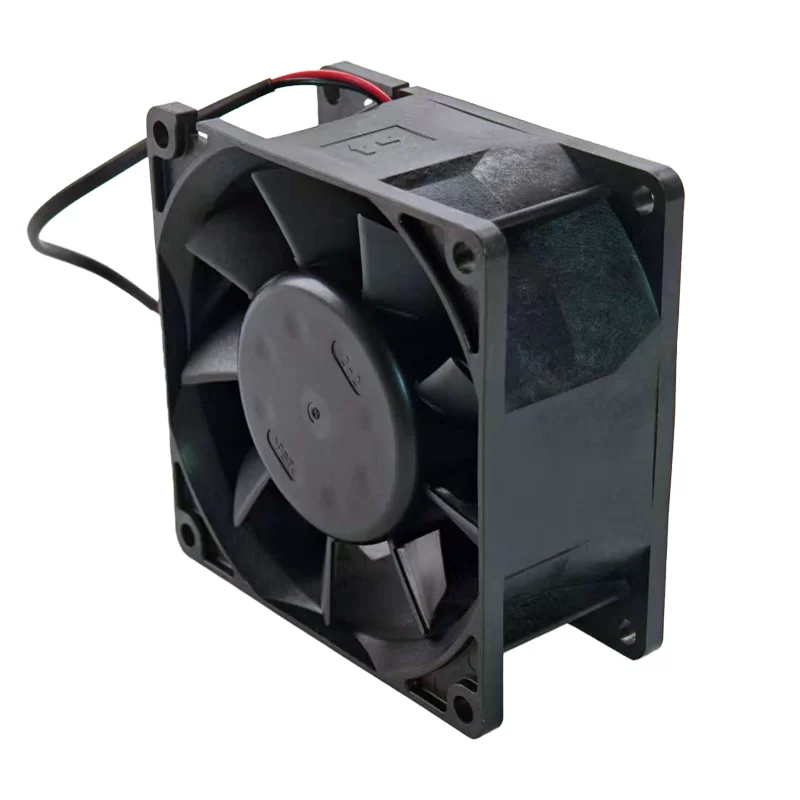

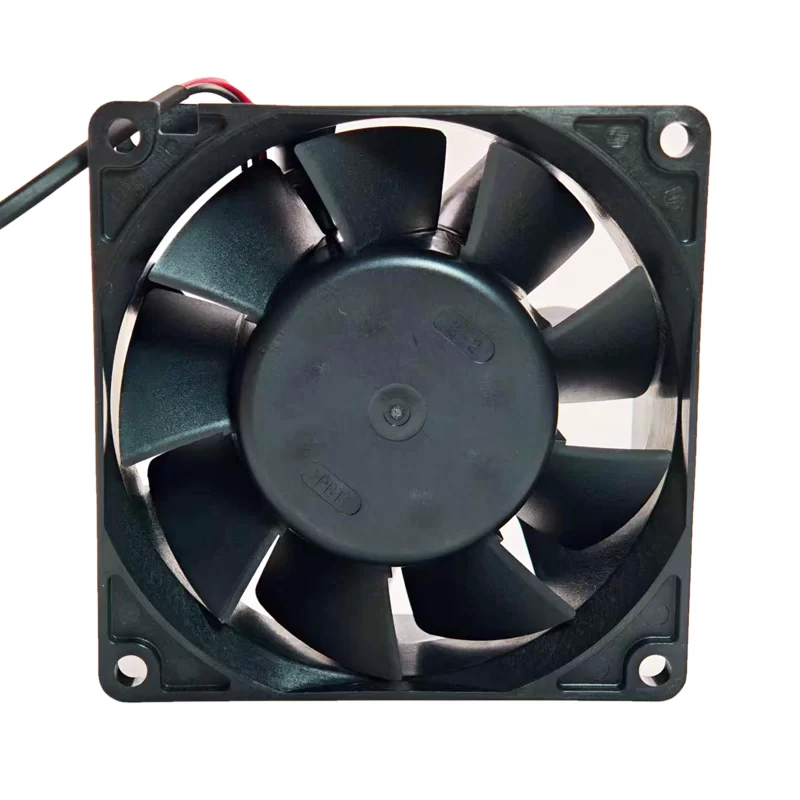

The NMB Technologies 08038RA-24Q-FA-03 is a robust 80x80x38mm DC axial fan engineered for high-performance cooling in various demanding electronic and industrial applications. Operating on a 24V DC power supply, this fan precisely draws 0.80A of current, consuming 19.2W of power. Featuring durable ball bearings and an aluminum frame, this model is built for extended life and includes auto-restart and polarity protection features for enhanced reliability. Its robust design makes it ideal for servers, power supplies, and other equipment requiring aggressive thermal management.
08038RA-24Q-FA-03 Fan Parameters
Model Number: 08038RA-24Q-FA-03
Manufacturer: NMB Technologies Corporation
Type: DC Axial Fan
Dimensions: 80mm x 80mm x 38mm
Rated Voltage: 24 VDC
Operating Voltage: 14.0 VDC to 27.6 VDC
Rated Current: 0.80A
Rated Power: 19.2 W
Bearing Type: Ball Bearing
Housing Material: Plastic (Black) UL94V-0
Impeller Material: Plastic (Black) UL94V-0
Wiring: 2 Wire Leads (Red positive, Black negative)
Weight: 210 g
Operating Temperature: -10°C to +70°C
Life Expectancy (L10): 80,000 hours at 25°C
Features: Auto Restart, Polarity Protection
Application: Servers, power supplies, industrial equipment, telecommunications, general electronics cooling.
