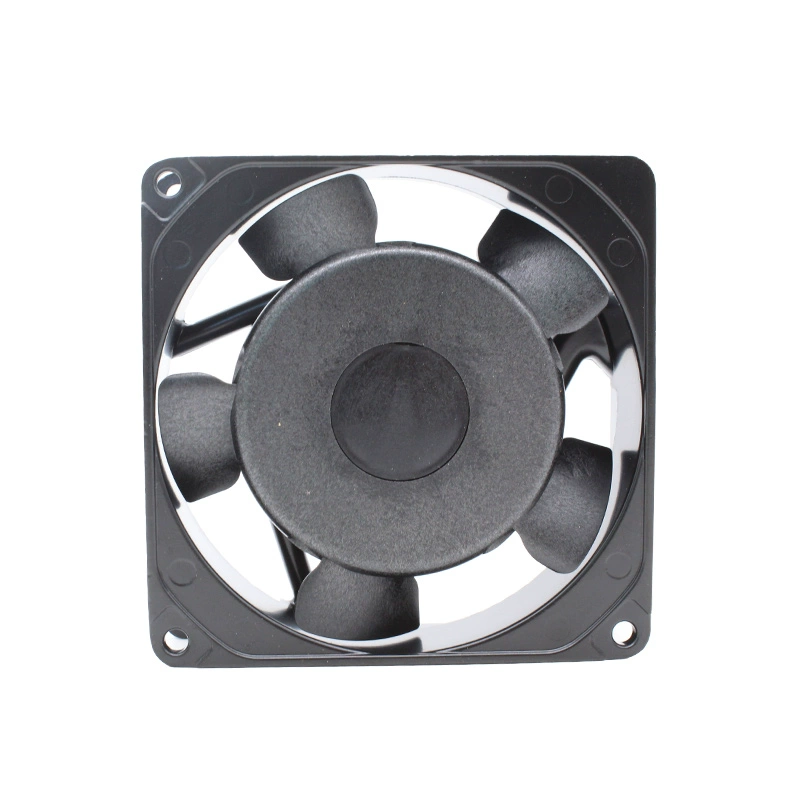

The NMB 09225PB-B3L-EA-00 is a reliable AC Axial Cooling Fan from NMB Technologies, designed for efficient thermal management in a wide range of electronic and industrial applications. Operating on 230V AC power, it adapts its performance based on the frequency. At 50Hz, it draws 0.090A (13.0W) and spins at 2600 RPM, providing 28.3 CFM of airflow with 0.17 inch-H2O of static pressure and a noise level of 34.0 dBA. At 60Hz, it draws 0.070A (10.0W) and reaches 3100 RPM, delivering 34.6 CFM of airflow with 0.24 inch-H2O of static pressure and a noise level of 39.0 dBA. Measuring 92.5mm x 92.5mm x 25.0mm, this fan features an aluminum frame and plastic impeller. Equipped with 2 terminals and ball bearings, the 09225PB-B3L-EA-00 is built for long-term reliability with an impressive life expectancy of 100,000 hours at 25°C and includes impedance protection. It operates efficiently within a temperature range of -10°C to 70°C, making it a robust choice for continuous operation.

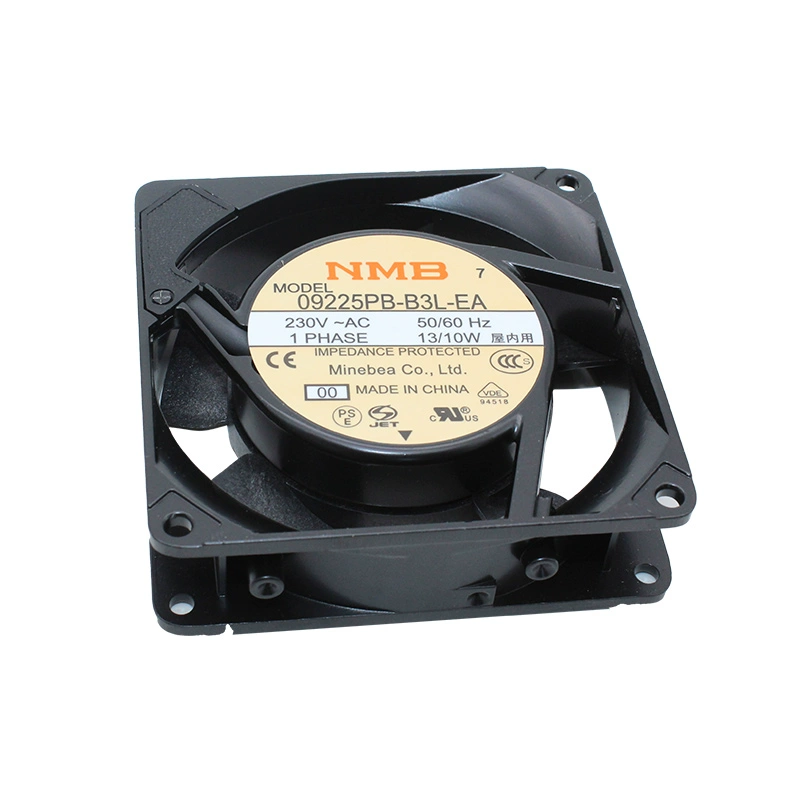

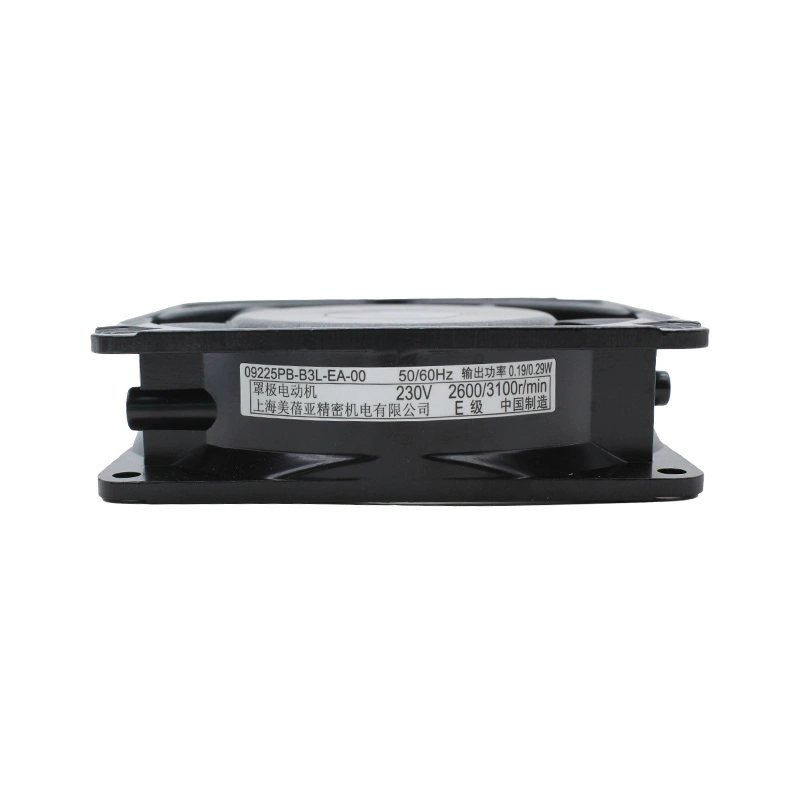

Original NMB 09225PB-B3L-EA 9025 cooling fan Minebeia 230V 9CM cooling fan
Manufacturer: NMB Technologies
Model Number: 09225PB-B3L-EA-00
Type: AC Axial Cooling Fan
Rated Voltage: 230V AC
Frequency: 50Hz / 60Hz
Rated Current (50Hz): 0.090A
Rated Current (60Hz): 0.070A
Rated Power (50Hz): 13.0W
Rated Power (60Hz): 10.0W
Speed (50Hz): 2600 RPM
Speed (60Hz): 3100 RPM
Airflow (50Hz): 28.3 CFM (0.80 m³/min)
Airflow (60Hz): 34.6 CFM (0.98 m³/min)
Static Pressure (50Hz): 0.17 inch-H2O (43.2 Pa)
Static Pressure (60Hz): 0.24 inch-H2O (60.9 Pa)
Noise Level (50Hz): 34.0 dBA
Noise Level (60Hz): 39.0 dBA
Dimensions: 92.5mm x 92.5mm x 25.0mm
Connector: 2 Terminals
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C
Operating Temperature: -10°C to 70°C
Frame Material: Aluminum
Impeller Material: Plastic
Features: Impedance Protection
