09225VA-12M-AT-01 NMB DC12V 0.4A cooling fan

$9.47

SKU: 09225VA-12M-AT-01
Tag:

Description

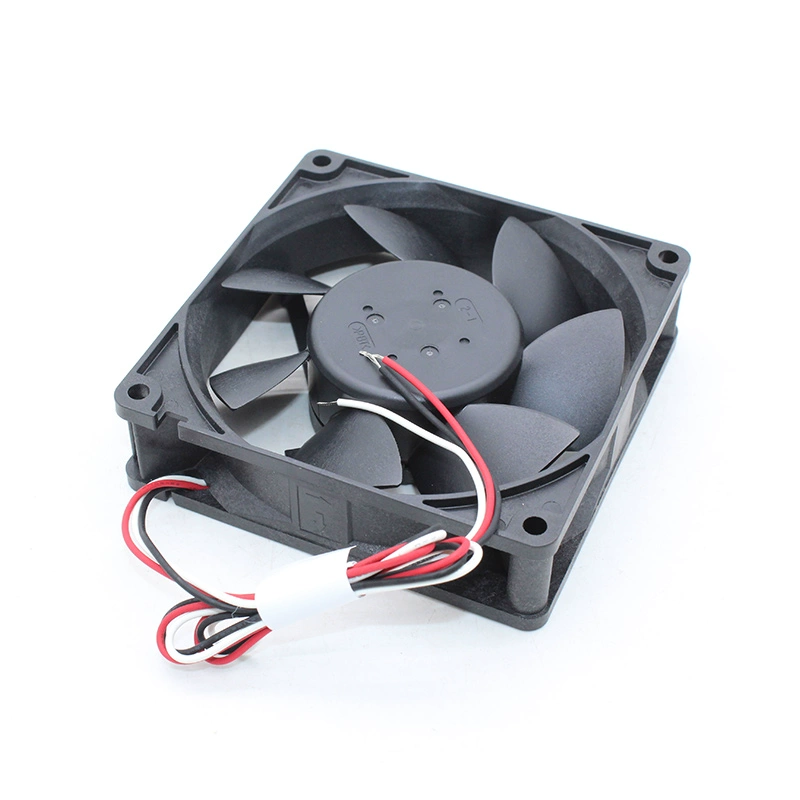

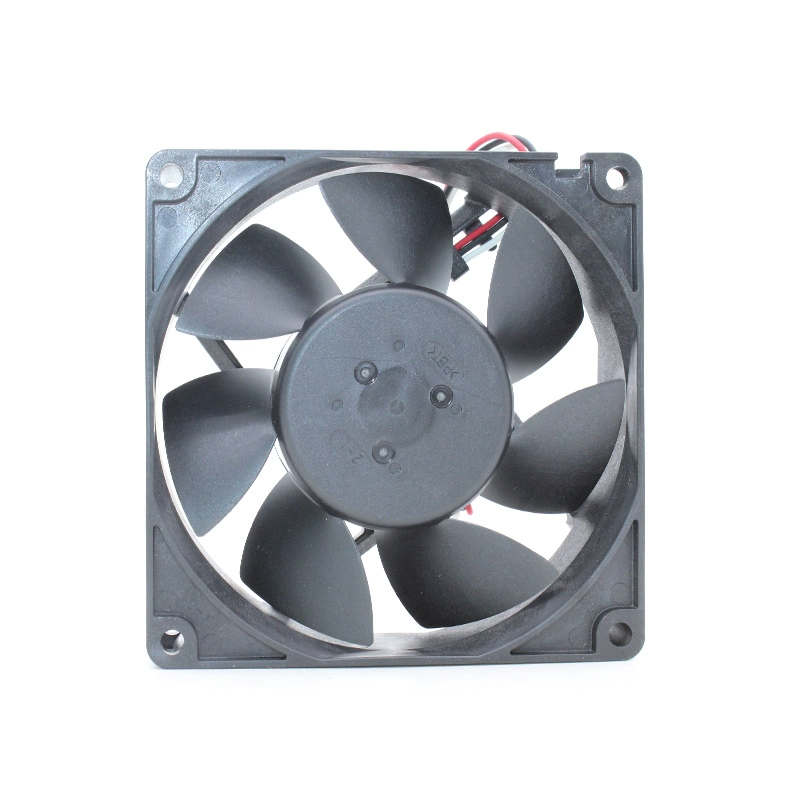

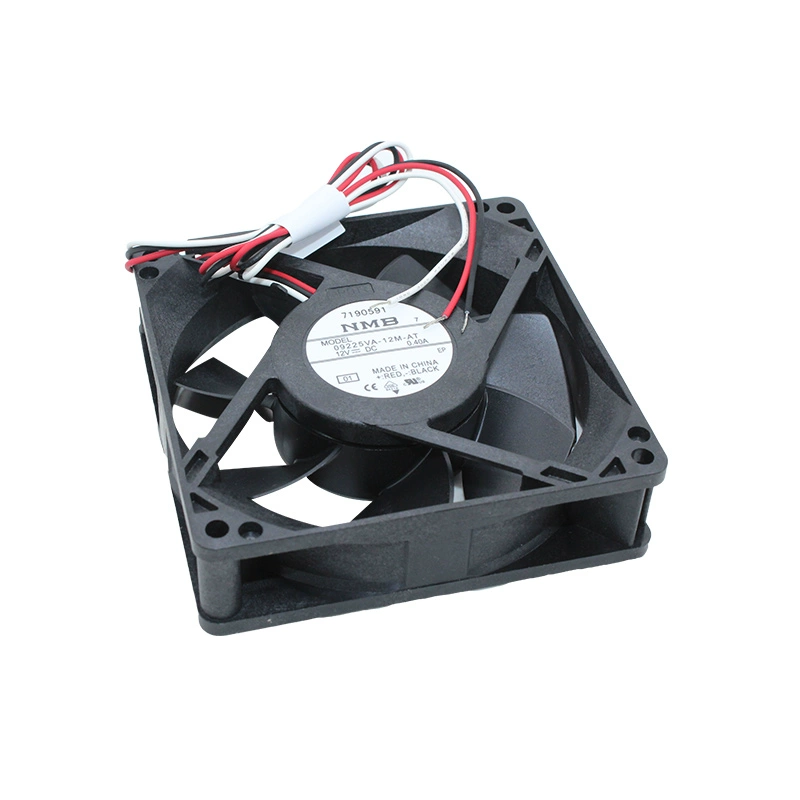

The NMB 09225VA-12M-AT-01 is a powerful DC Axial Cooling Fan from NMB Technologies, designed for effective thermal management in various electronic systems. Operating on 12V DC power, it draws 0.40A of current, resulting in a 4.8W power consumption. Measuring 92mm x 92mm x 25mm, this fan is well-suited for cooling in applications such as industrial equipment, power supplies, and telecommunications. It rotates at a speed of 4600 RPM, delivering a substantial airflow of 80.0 CFM and generating a static pressure of 0.40 inch-H2O. With a noise level of 45 dBA, it provides efficient cooling with a moderate acoustic profile. Equipped with 3-wire leads, it includes a speed sensor for monitoring and utilizes durable ball bearings. The fan boasts a life expectancy of 40,000 hours at 60°C and is designed to operate reliably within a temperature range of -10°C to 70°C, also featuring auto restart.
09225VA-12M-AT-01 NMB DC12V 0.4A cooling fan

Model Number: 09225VA-12M-AT-01
Manufacturer: NMB Technologies
Type: DC Axial Cooling Fan
Rated Voltage: 12V DC
Operating Voltage Range: 7V to 13.8V DC
Rated Current: 0.40A
Rated Power: 4.8W
Speed: 4600 RPM
Airflow: 80.0 CFM
Static Pressure: 0.40 inch-H2O
Noise Level: 45 dBA
Dimensions: 92mm x 92mm x 25mm
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 40,000 hours at 60°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Speed Sensor

09225VA-12M-AT-01 NMB DC12V 0.4A cooling fan
09225VA-12M-AT-01 NMB DC12V 0.4A cooling fan
09225VA-12M-AT-01 NMB DC12V 0.4A cooling fan
09225VA-12M-AT-01 NMB DC12V 0.4A cooling fan

Additional information

Weight 0.5 kg
