Description

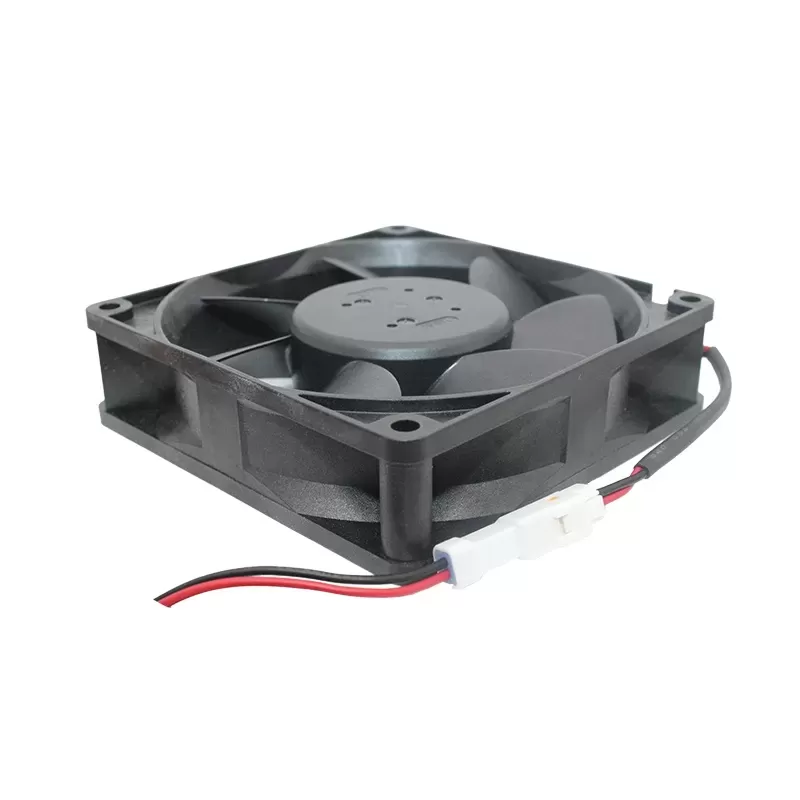

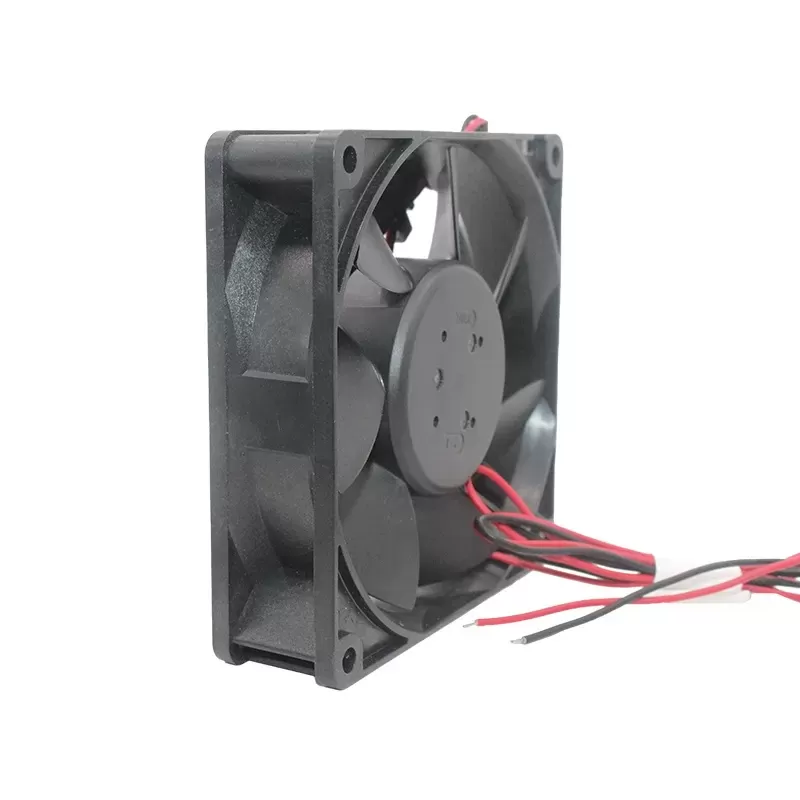

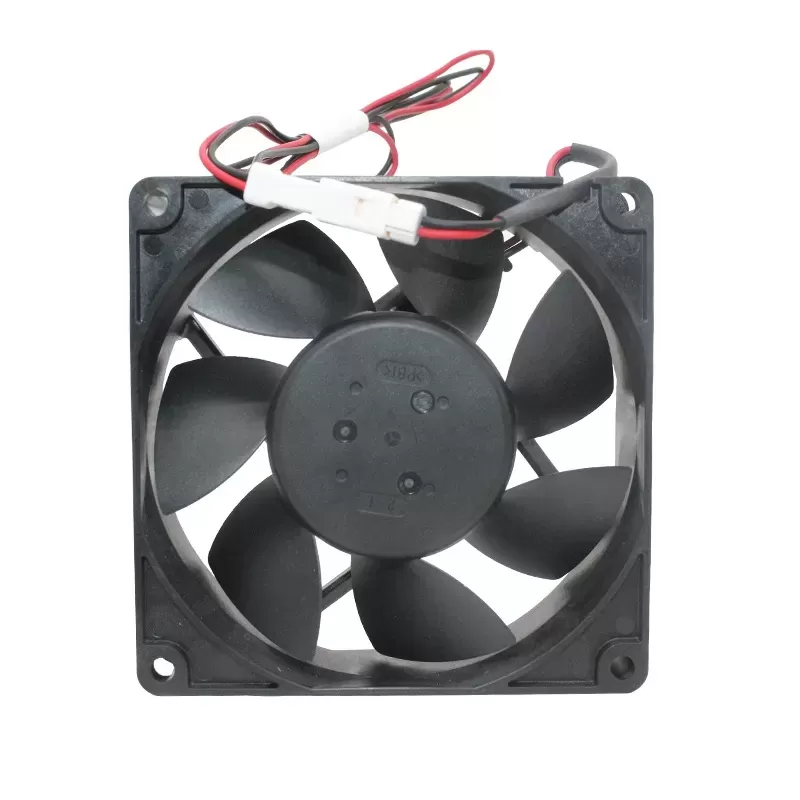

The NMB 09225VA-12P-CA-01 is a high-performance 12V DC axial cooling fan. Measuring 92mm x 92mm x 25mm, this fan is engineered for demanding cooling applications in servers, power supplies, industrial controls, and other high-density electronic systems where robust airflow and static pressure are essential, now including environments where waterproof capabilities are required. It operates at a rated voltage of 12V DC and draws a current of 0.68A, resulting in a power consumption of 8.16W. This allows it to achieve a high rotational speed of 4800 RPM, delivering an impressive airflow of 105.0 CFM and a static pressure of 0.50 inch-H2O. Its noise level is 50.0 dBA. The fan features durable ball bearings for an extended operational lifespan of 100,000 hours at 25°C. It comes with 2-wire leads for power, along with auto-restart, polarity protection, and waterproof features.
Model Number: 09225VA-12P-CA-01
Manufacturer: NMB Technologies Corporation
Series: VA Series
Type: DC Axial Cooling Fan
Dimensions: 92mm x 92mm x 25mm
Rated Voltage: 12V DC
Operating Voltage Range: 7V to 13.2V DC
Rated Current: 0.68A
Rated Power: 8.16W
Speed: 4800 RPM
Airflow: 105.0 CFM (2.97 m³/min)
Static Pressure: 0.50 inch-H2O (124 Pa)
Noise Level: 50.0 dBA
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Polarity Protection, Waterproof
Operating Temperature: -10°C to +70°C
Weight: 115g
Approvals/Certifications: UL, CSA, TUV, CE, RoHS Compliant
