Description

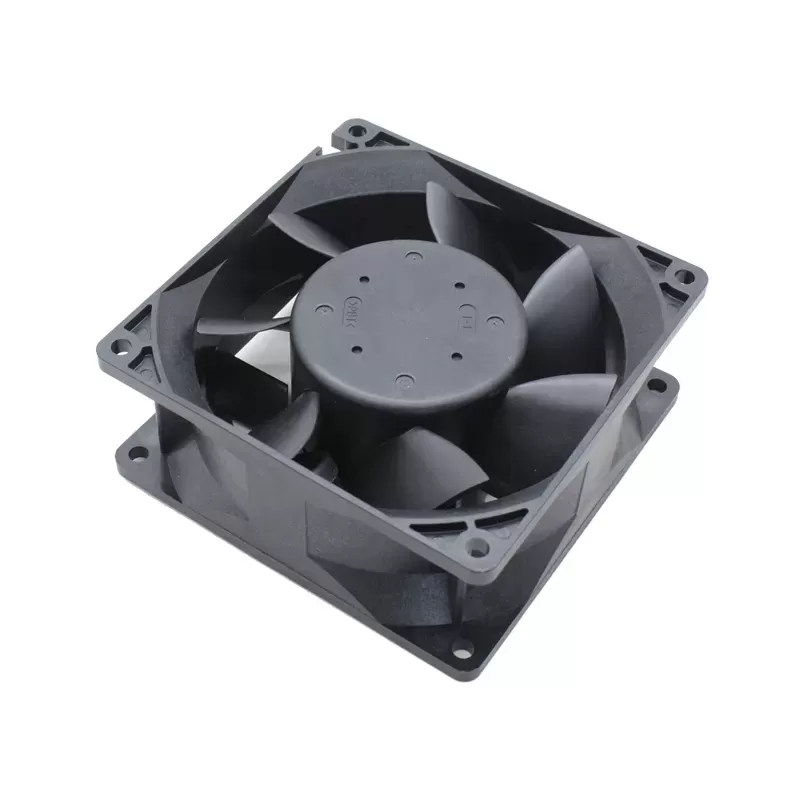

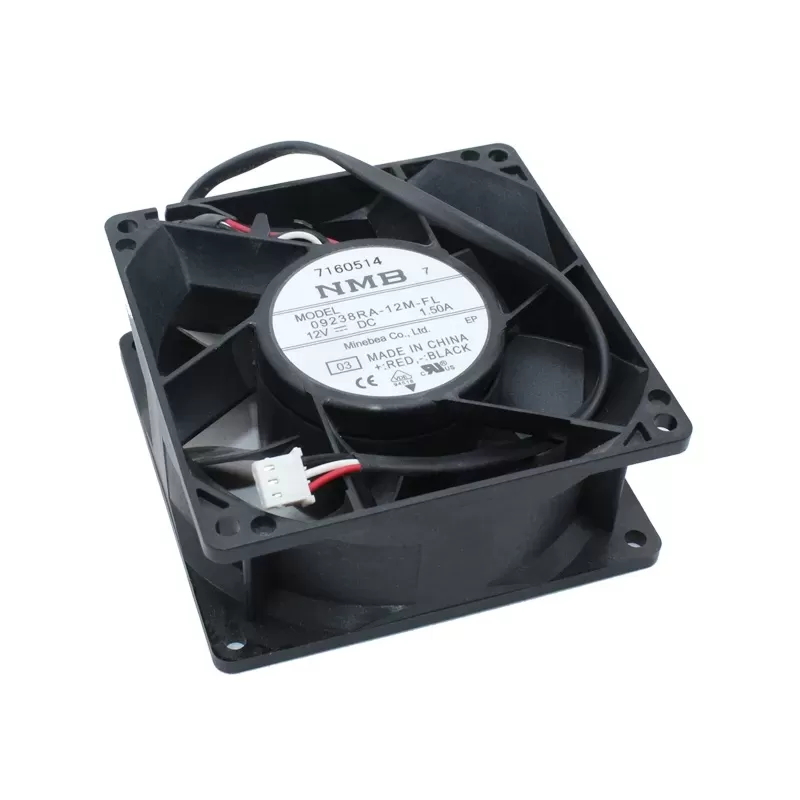

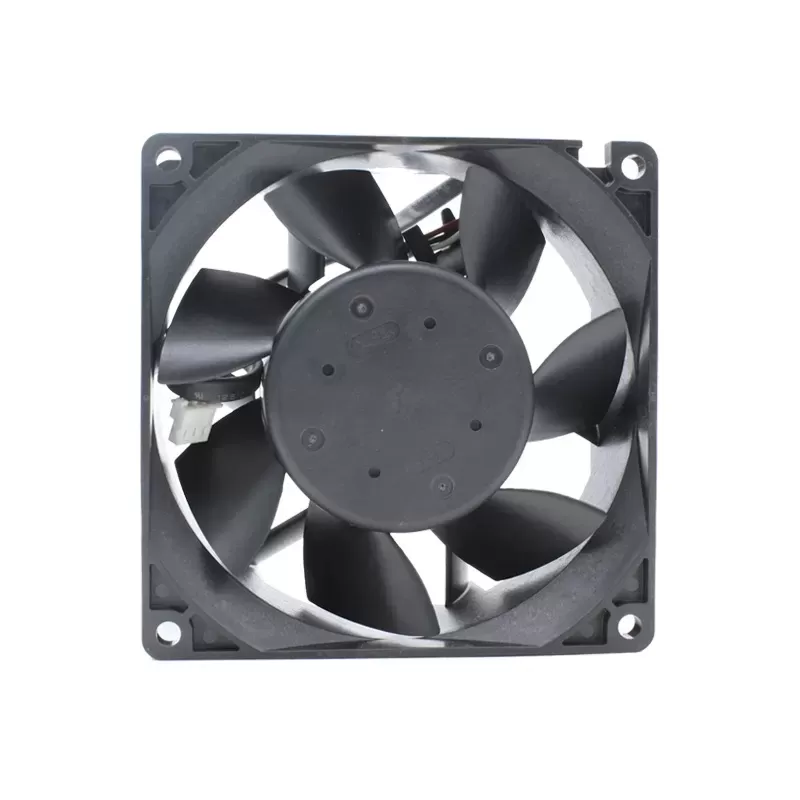

The NMB 09238RA-12M-FL-03 is a powerful 12V DC axial cooling fan, measuring 92mm x 92mm x 38mm. Operating at a rated current of 1.50A (18.0W), this fan is engineered for demanding thermal management in applications such as servers, high-density electronic equipment, and industrial systems. It achieves a high rotational speed of approximately 6200 RPM, delivering a robust 129.9 CFM of airflow with a strong static pressure of around 0.89 inch-H2O (222 Pa). Its noise level is typically around 59.0 dBA. Equipped with durable ball bearings, it offers a long operational life of 100,000 hours at 25°C. The fan usually utilizes 3-wire leads, which commonly include a locked rotor sensor for monitoring its operational status, ensuring reliable performance in continuous cooling scenarios.
Model Number: 09238RA-12M-FL-03
Manufacturer: NMB Technologies Corporation
Type: DC Axial Cooling Fan
Dimensions: 92mm x 92mm x 38mm
Rated Voltage: 12V DC
Operating Voltage: 7.0V to 13.8V DC
Rated Current: 1.50A
Rated Power: 18.0W
Speed: 6200 RPM
Airflow: 129.9 CFM / 3.68 m³/min
Static Pressure: 0.89 inch-H2O / 222 Pa
Noise Level: 59.0 dBA
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Locked Rotor Sensor, Auto Restart, Reverse Polarity Protection
