Description

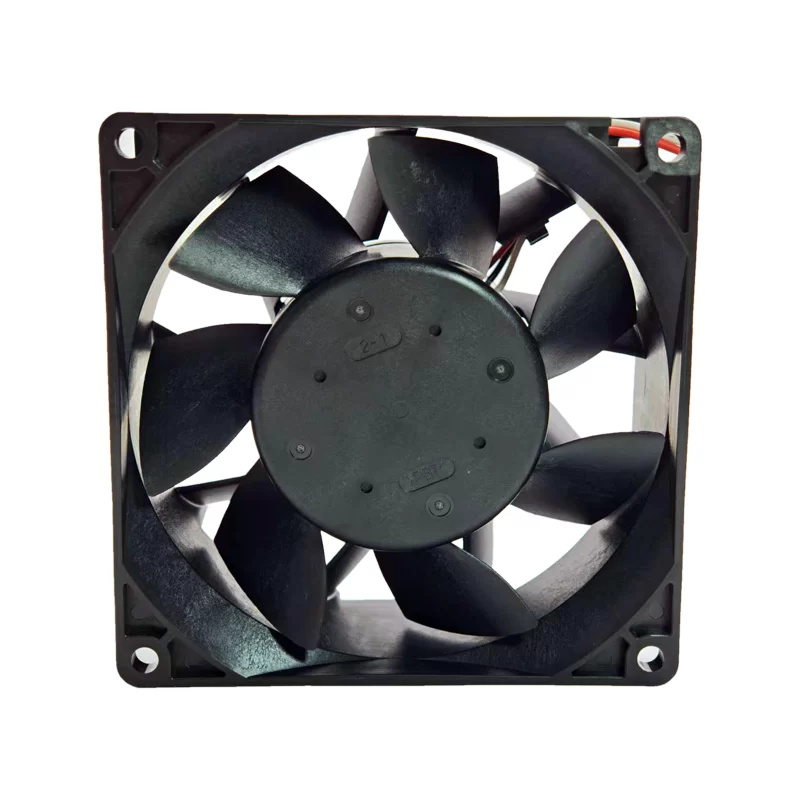

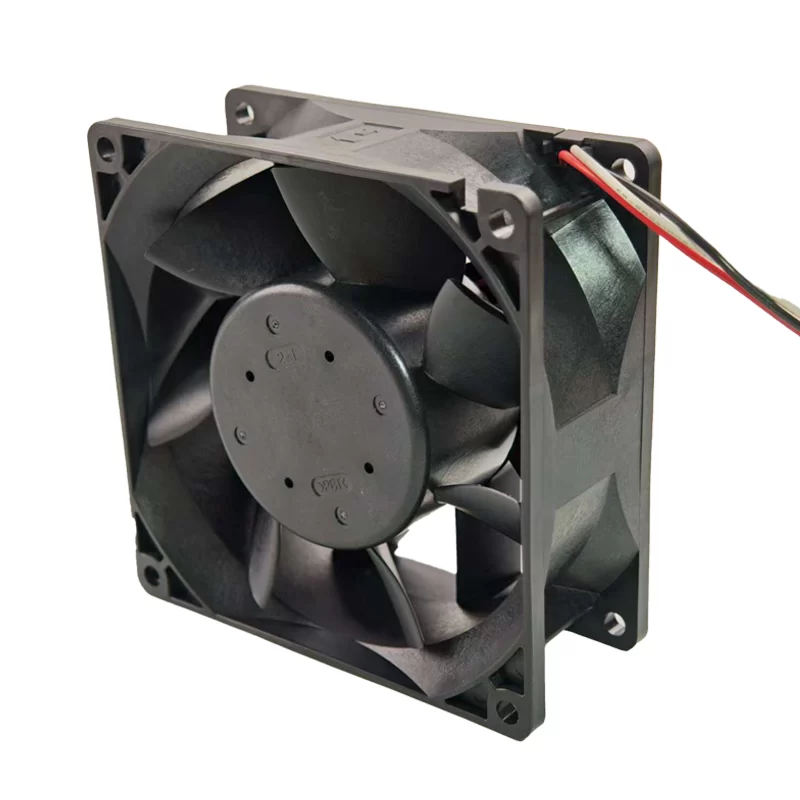

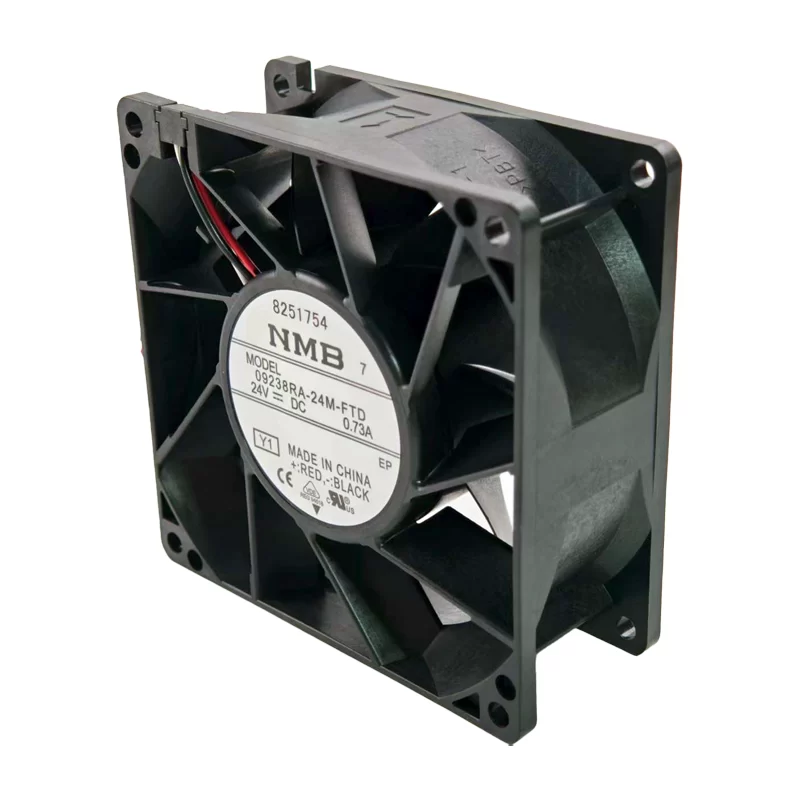

The NMB Technologies Corporation 09238RA-24M-FTD-Y1 is a high-performance DC axial fan measuring 92x92x38mm. It operates on 24 VDC, drawing 0.73 A of current, with a power consumption of 17.52 W. This fan achieves a speed of 3800 RPM, providing an airflow of 105.9 CFM (3.0 m³/min) with a static pressure of 0.552 inch H2O. The noise level is 49 dB(A). It features ball bearings for durable operation and includes a speed sensor (Tach) for monitoring. It connects via 3-wire Leads. This fan is typically used in servers, telecom equipment, and other applications requiring efficient and controlled cooling.

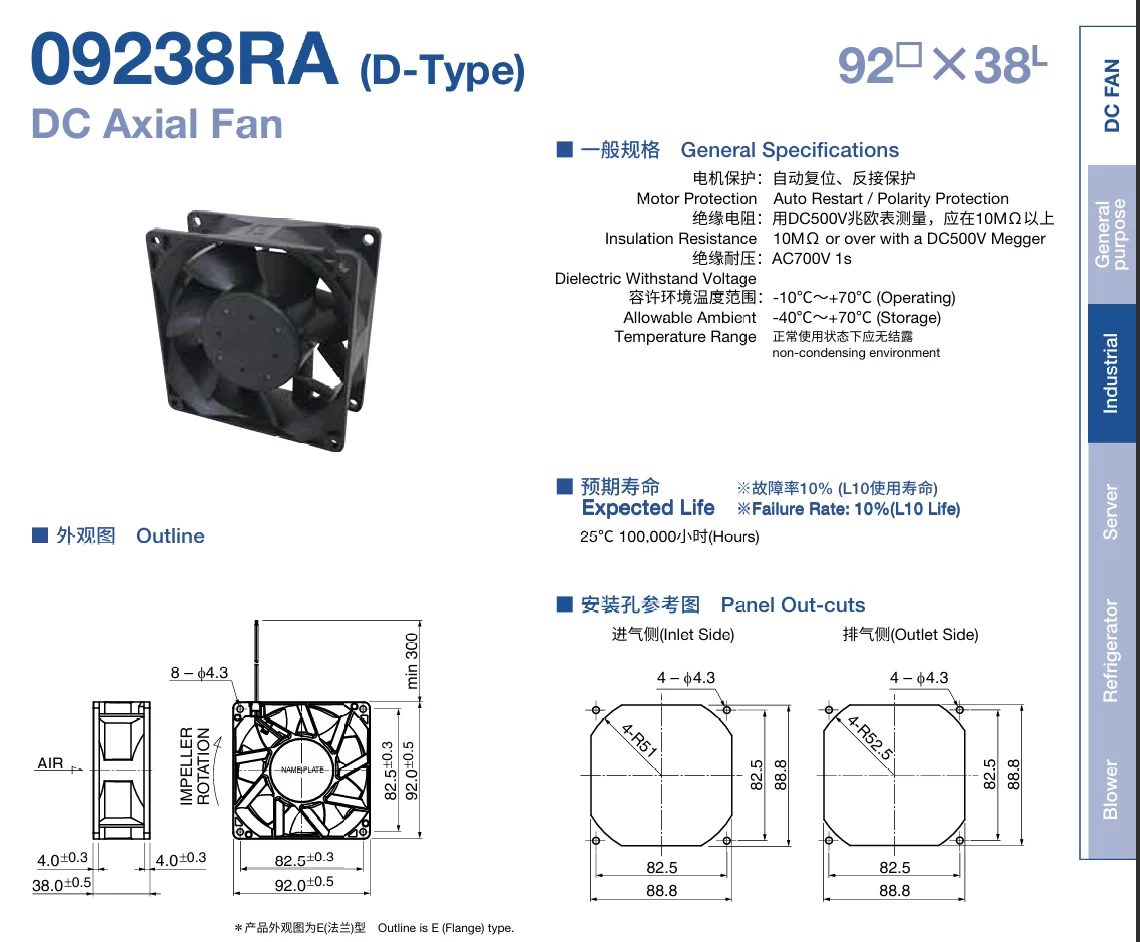

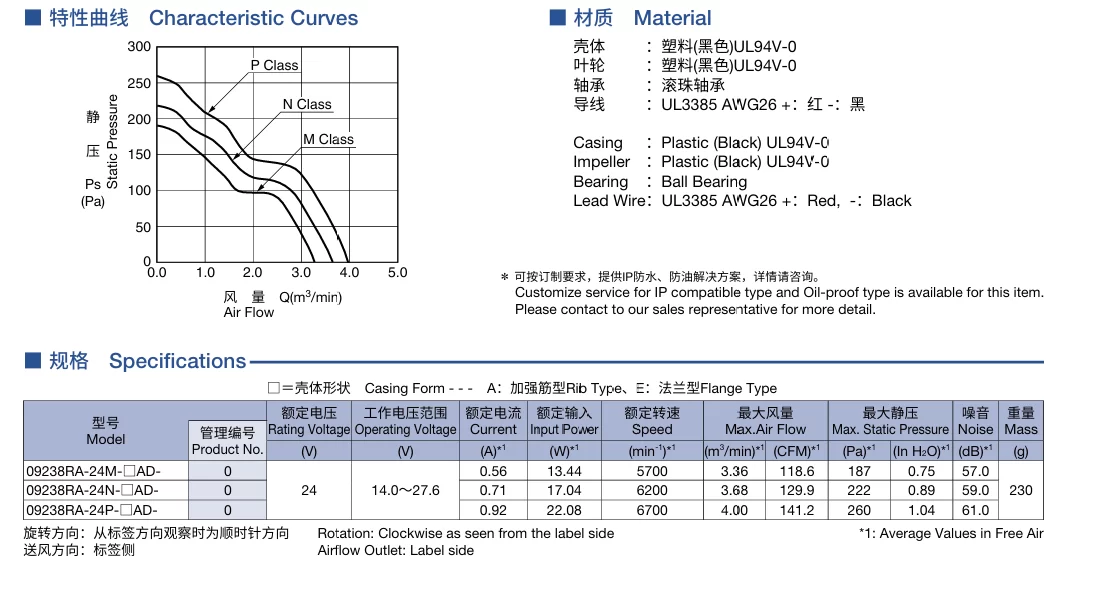

09238RA-24M-FTD-Y1 Fan Parameters
Model: 09238RA-24M-FTD-Y1
Manufacturer: NMB Technologies Corporation
Type: DC Axial Fan
Dimensions: 92x92x38 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 14-27.6 VDC
Rated Current: 0.73 A
Power Consumption: 17.52 W
Speed: 3800 RPM
Airflow: 105.9 CFM (3.0 m³/min)
Static Pressure: 0.552 inch H2O (137.4 Pa)
Noise Level: 49 dB(A)
Bearing Type: Ball Bearing
Termination: 3-wire Leads
Features: Speed Sensor (Tach), Auto Restart
Weight: 260 g
Material Frame: Plastic (PBT)
Material Blade: Plastic (PBT)
Operating Temperature: -10 to 70°C
Expected Life: 60000 Hrs at 60°C (100000 Hrs at 40°C)
Application: Servers, telecom equipment, general cooling.
