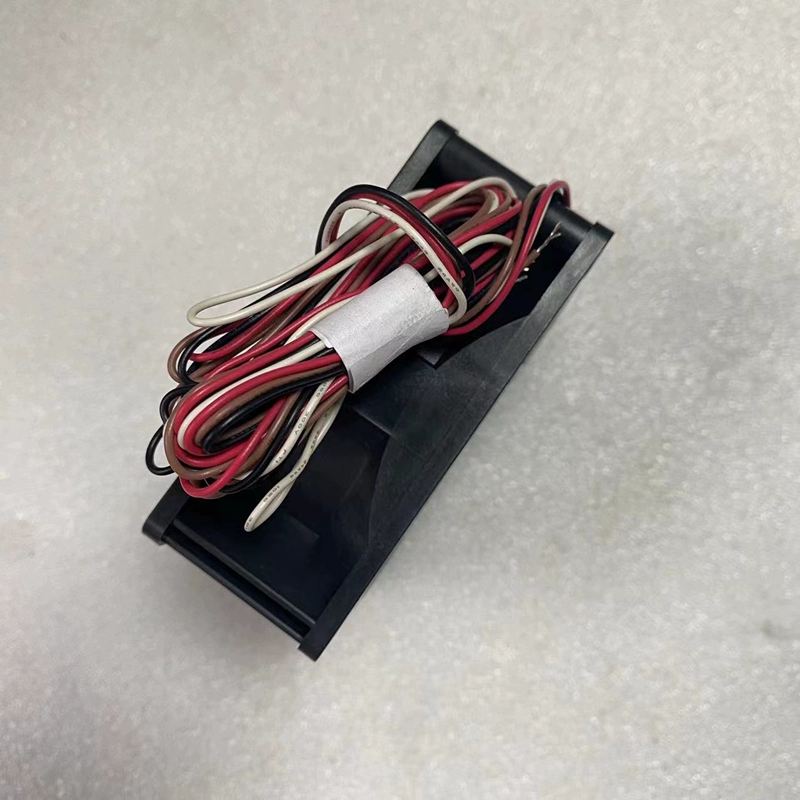

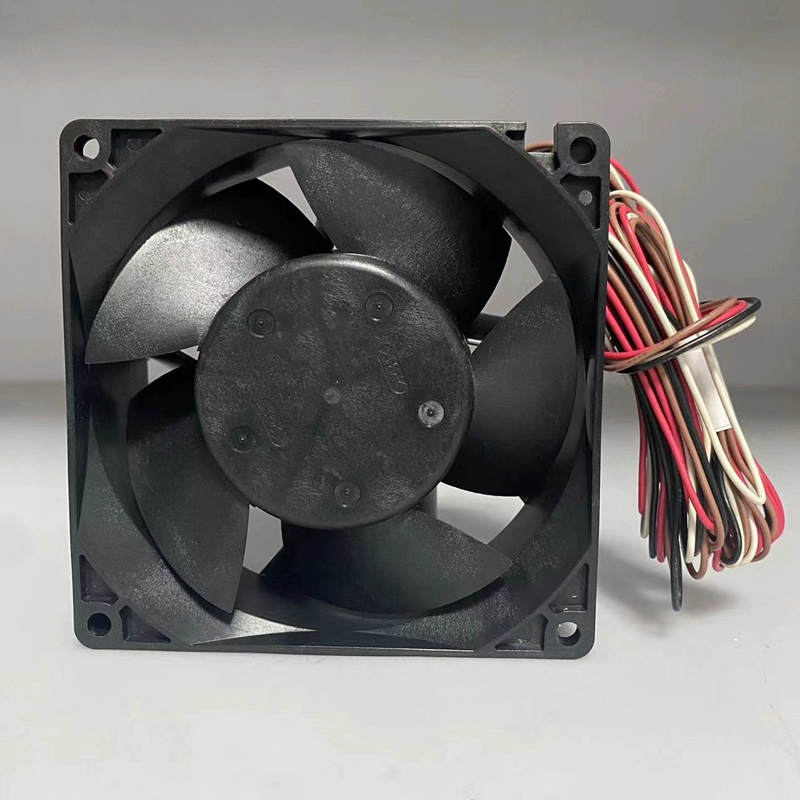

0938DE-24P-CUE NMB 24V 1.5A axial cooling fan

Description

The NMB 0938DE-24P-CUE is an extremely powerful 24V DC axial fan, measuring 92mm x 92mm x 38mm, manufactured by NMB Technologies Corporation. This fan is engineered for the most demanding cooling applications where maximum airflow and very high static pressure are critical.

Drawing a substantial 1.5A of current, it consumes 36.0W of power, indicative of its immense performance capabilities. Operating at an estimated 8000 RPM, it is designed to deliver a massive 160 CFM of airflow and generate a very high 1.9 inches of H2O static pressure. Such intense performance results in a robust 70 dBA noise level. Equipped with durable ball bearings, it ensures a reliable operational lifespan of 70,000 hours. This model typically comes with 3-wire or 4-wire leads, commonly including a tachometer output for speed monitoring and potentially PWM for precise control. The NMB 0938DE-24P-CUE is an optimal choice for cooling critical components in high-density server racks, industrial control systems, telecommunications equipment, and other extreme computing environments where superior thermal management and unwavering reliability are paramount.
0938DE-24P-CUE NMB 24V 1.5A axial cooling fan

Model: 0938DE-24P-CUE
Manufacturer: NMB Technologies Corporation
Type: DC Axial Fan
Dimensions: 92mm x 92mm x 38mm
Nominal Voltage: 24V DC
Current: 1.5A
Power Consumption: 36.0W
Speed: 8000 RPM
Airflow: 160 CFM
Static Pressure: 1.9 In H2O
Noise Level: 70 dBA
Bearing Type: Ball Bearing
Life Expectancy: 70,000 Hours (at 40°C, L10)
Termination: Typically 3-wire or 4-wire leads (likely with tachometer/PWM for high-performance models)
Frame Material: Plastic
Impeller Material: Plastic
Features: Brushless DC motor, polarity protected, auto restart. Given the high performance, features like tachometer output and possibly PWM control are common.
