Description

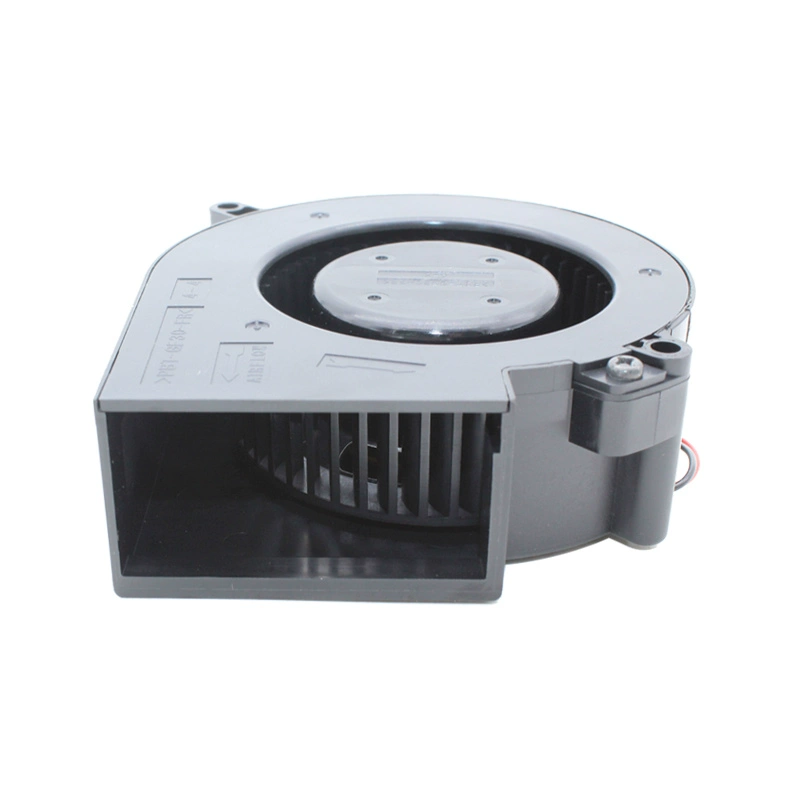

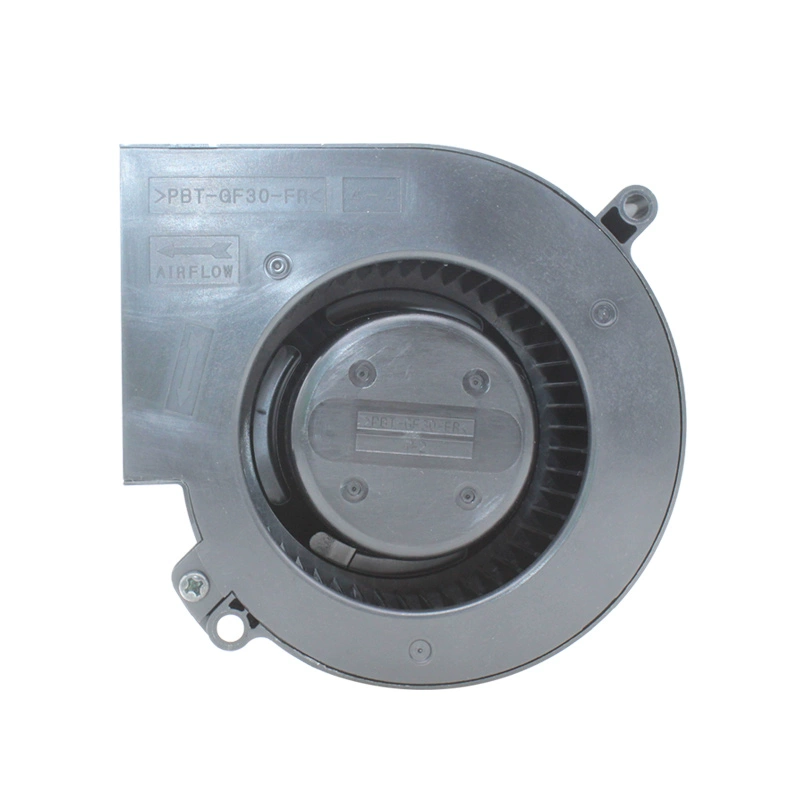

The NMB 09533GA-24M-AA-00 is a compact 24V DC centrifugal blower fan. Measuring approximately 97mm L x 93.5mm H x 33mm W, this blower is ideal for focused cooling in various electronic enclosures, industrial equipment, and systems with high airflow resistance. It operates at a rated voltage of 24V DC and, based on your input, draws a current of 0.64A, resulting in a power consumption of 15.36W. This model typically achieves a rotational speed of 3700 RPM, delivering an airflow of 28.6 CFM and a static pressure of 1.400 inch-H2O. Its noise level is 54.5 dBA. The fan features durable ball bearings for an extended operational lifespan of 100,000 hours at 25°C. It commonly comes with 2-wire leads for power connection and includes auto-restart and polarity protection.
Model Number: 09533GA-24M-AA-00
Manufacturer: NMB Technologies Corporation
Series: GA Series (Centrifugal Blower)
Type: DC Centrifugal Blower Fan
Dimensions: 97mm L x 93.5mm H x 33mm W
Rated Voltage: 24V DC
Operating Voltage Range: 10V to 25V DC
Rated Current: 0.64A
Rated Power: 15.36W (calculated: 24V * 0.64A)
Speed: 3700 RPM
Airflow: 28.6 CFM (0.81 m³/min)
Static Pressure: 1.400 inch-H2O (342 Pa)
Noise Level: 54.5 dBA
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C (L10 Life)
Frame Material: Plastic (UL94V-0)
Impeller (Blade) Material: Plastic (UL94V-0)
Features: Auto Restart, Polarity Protection
Operating Temperature: -10°C to +60°C
Storage Temperature: -40°C to +70°C
Weight: 210g
Approvals/Certifications: UL, CSA, TUV, CE, RoHS Compliant
