Description

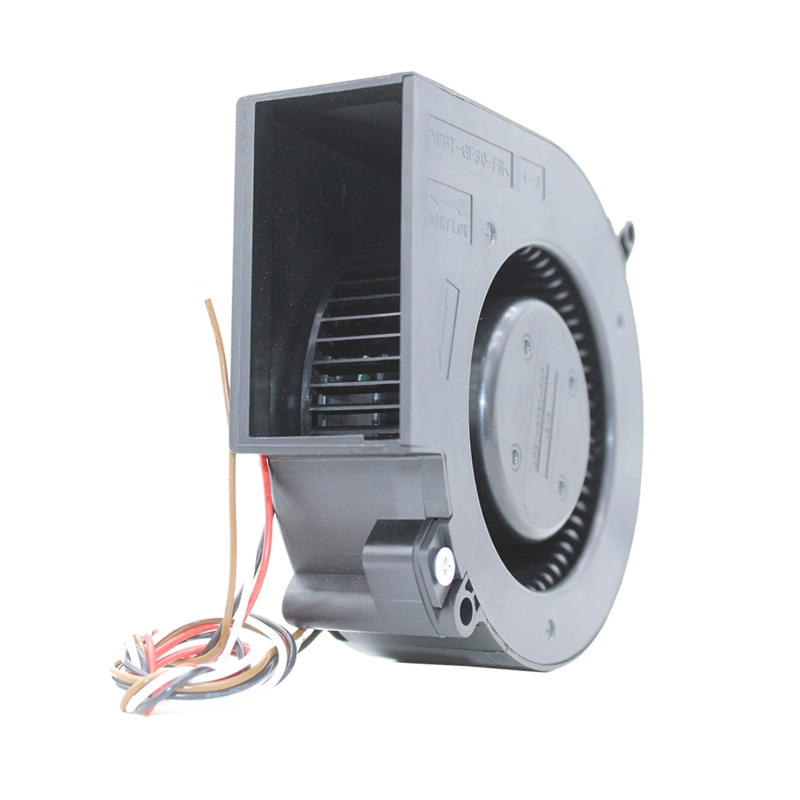

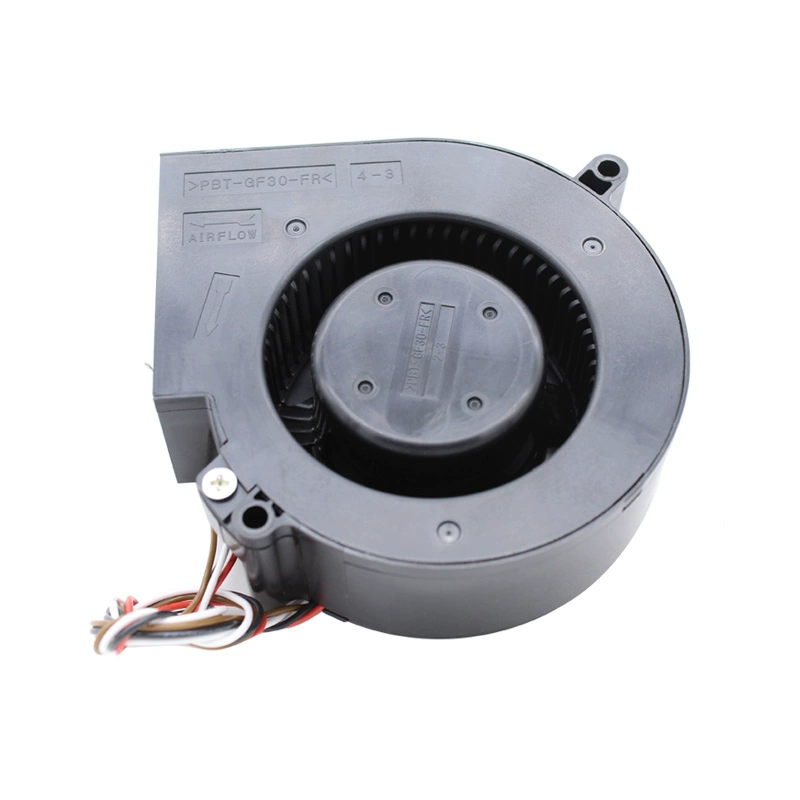

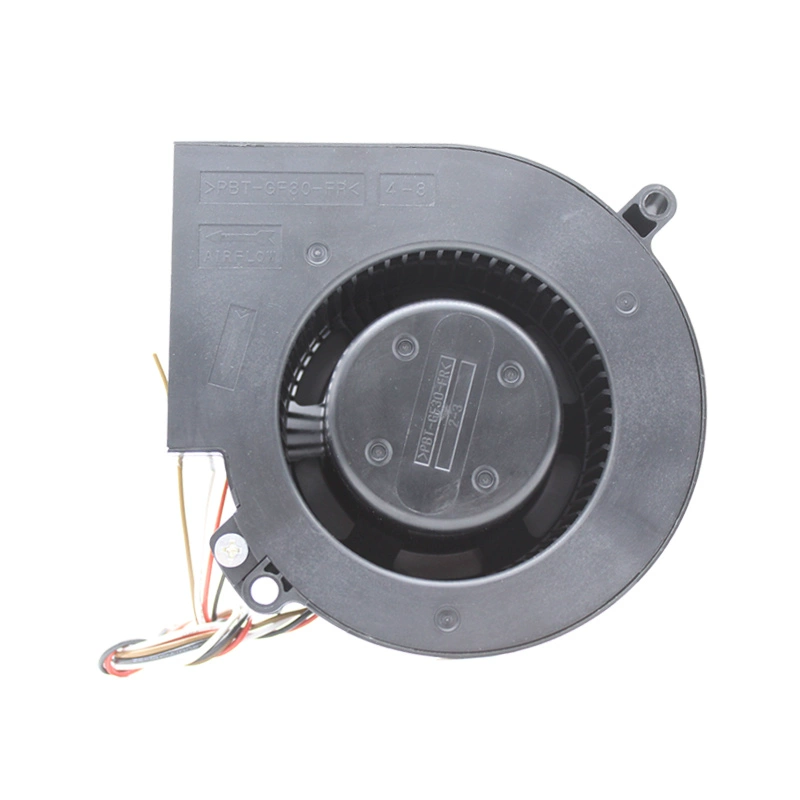

The NMB 09533GA-24S-AU-01 is an extremely high-performance 24V DC blower fan from NMB Technologies Corporation, measuring 95mm x 95mm x 33mm. Operating at a formidable rated current of 1.5A (36W), this centrifugal fan is designed to generate substantial static pressure and focused airflow, making it ideal for applications requiring air to be pushed through highly restrictive pathways. It achieves a high speed of 5600 RPM, delivering 48.0 CFM of airflow and an impressive static pressure of 1.70 inch-H2O, with a noise level of 60.0 dBA. Equipped with durable ball bearings, it boasts an extended operational life of 100,000 hours at 25°C. The fan utilizes 4-wire leads, providing both PWM control for precise speed adjustment and a speed sensor for real-time monitoring of fan status, making it an indispensable solution for cooling dense server racks, industrial equipment, or specialized electronic enclosures where powerful, directed airflow is critical.
Model Number: 09533GA-24S-AU-01
Manufacturer: NMB Technologies Corporation
Type: DC Blower Fan
Dimensions: 95mm x 95mm x 33mm
Rated Voltage: 24V DC
Rated Current: 1.5A
Rated Power: 36W
Speed: 5600 RPM
Airflow: 48.0 CFM / 1.36 m³/min
Static Pressure: 1.70 inch-H2O / 423 Pa
Noise Level: 60.0 dBA
Connector: 4-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: PWM Control, Speed Sensor
