Description

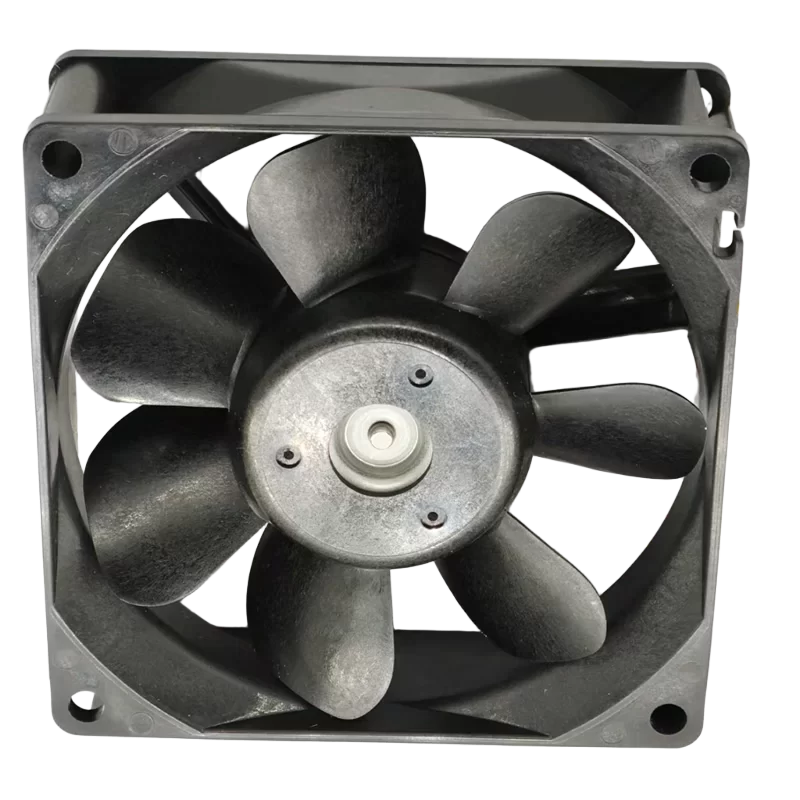

The Sanyo Denki 109R0812G401 is a high-performance DC Axial Fan measuring 80×80×25 mm. It operates on a nominal 12 VDC voltage with a rated current of 0.370 A (4.44 W), delivering a substantial airflow of 90 m3/h (53 CFM) at a speed of 4500 RPM. This fan generates a high static pressure of 80.4 Pa (0.323 inH2O) with a controlled noise level of 40 dBA. Built with a Ball Bearing system and a 3-wire termination that includes a pulse sensor (tachometer) for speed monitoring, this fan is an excellent choice for server and networking equipment requiring high reliability, excellent cooling performance, and noise management.
109R0812G401 Fan Parameters
Model: 109R0812G401
Manufacturer: Sanyo Denki
Fan Type: DC Axial Fan
Dimensions: 80×80×25 mm
Nominal Voltage: 12 VDC
Rated Current: 0.370 A
Power Consumption: 4.44 W
Rated Speed: 4500 RPM
Airflow: 90 m3/h (53 CFM)
Static Pressure: 80.4 Pa (0.323 inH2O)
Noise Rating: 40 dBA
Bearing System: Ball Bearing
Termination: 3 Lead Wires (with Pulse Sensor)
Features: Locked Rotor Protection
Frame Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Application
The 109R0812G401 fan is part of the San Ace 80 series, engineered for long life and superior performance. Its balance of high airflow and pressure, combined with moderate noise and a tachometer output, makes it a premium thermal solution for rack-mounted servers, network switches and routers, embedded computing systems, and industrial control cabinets where space is limited but thermal demands are high.
