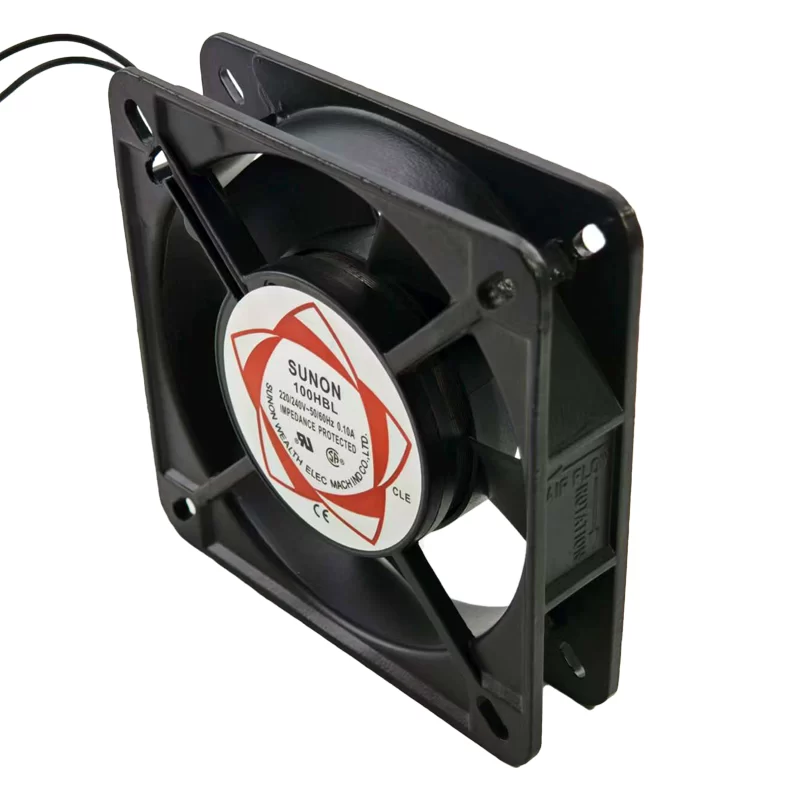

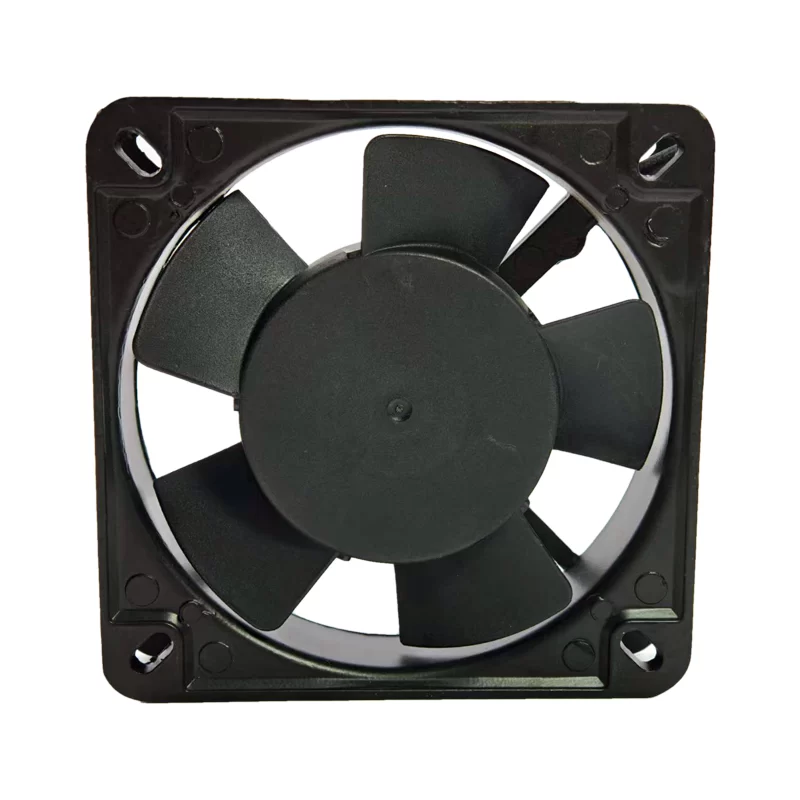

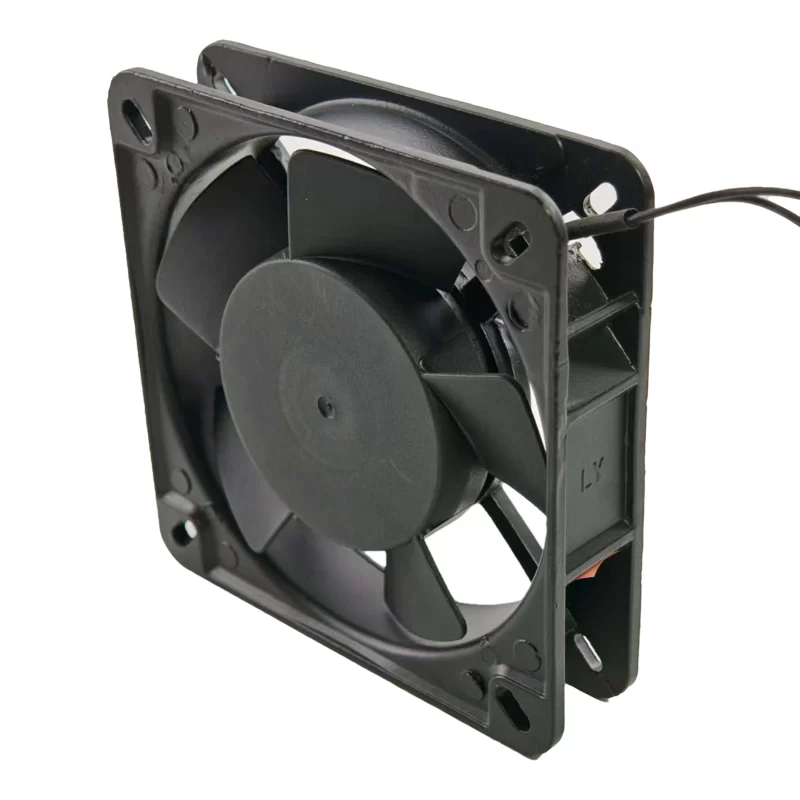

100HBL Sunon 220-240V AC Axial Fan

Description

The Sunon 100HBL is an AC Axial Fan with dimensions of 110x110x25mm. It operates on a nominal voltage range of 220-240V and is compatible with both 50Hz and 60Hz frequencies. This fan draws 0.10A of current with a power consumption of 19W. It delivers an airflow of 100m³/h (58.86CFM) at a speed of 2400RPM, generating a static pressure of 0.16inH2O, and has a noise level of 33dBA. It is suitable for general cooling applications in electronic devices, small enclosures, and various industrial equipment.

100HBL Fan Parameters
Model: 100HBL
Manufacturer: Sunon
Type: AC Axial Fan
Dimensions: 110 x 110 x 25 mm
Nominal Voltage: 220-240 V
Frequency: 50/60 Hz
Current Draw: 0.10 A
Power Consumption: 19 W
Airflow: 100 m³/h (58.86 CFM)
Static Pressure: 0.16 in H2O
Speed: 2400 RPM
Noise: 33 dBA
Weight: 300 g
Application: Electronic devices, small enclosures, industrial equipment.
