Description

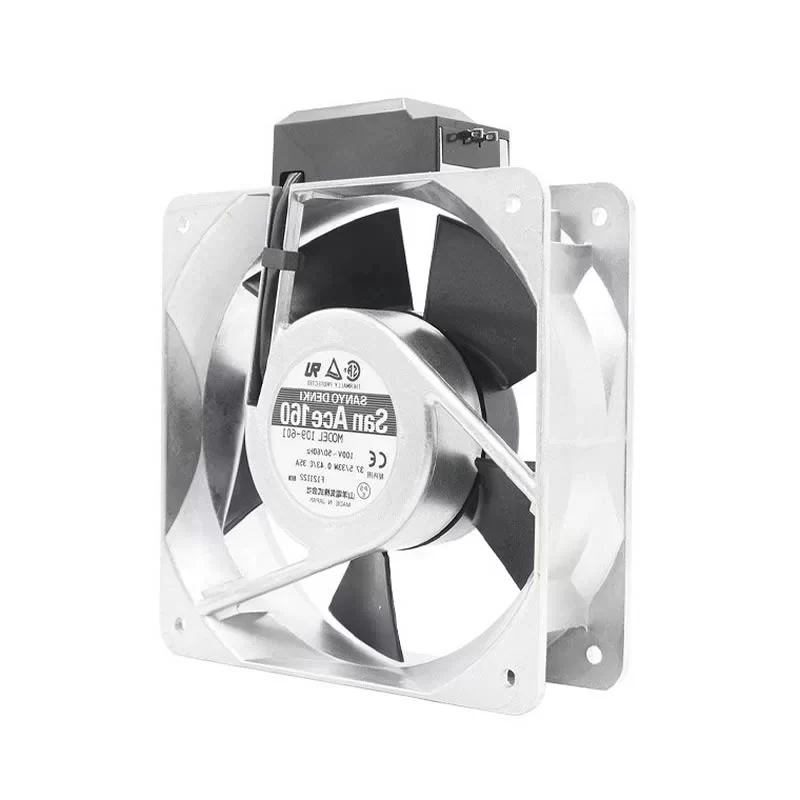

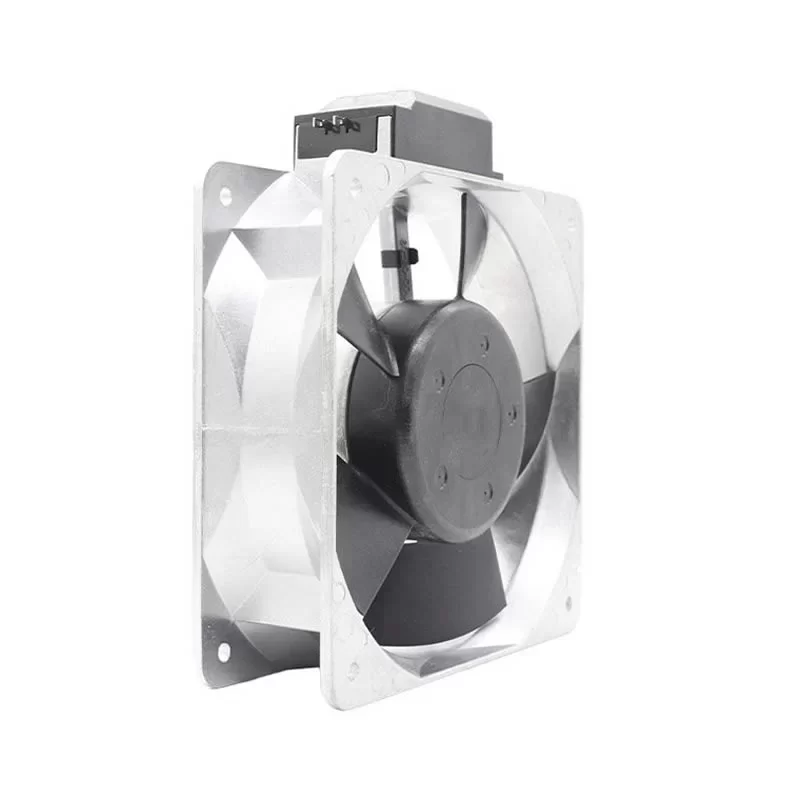

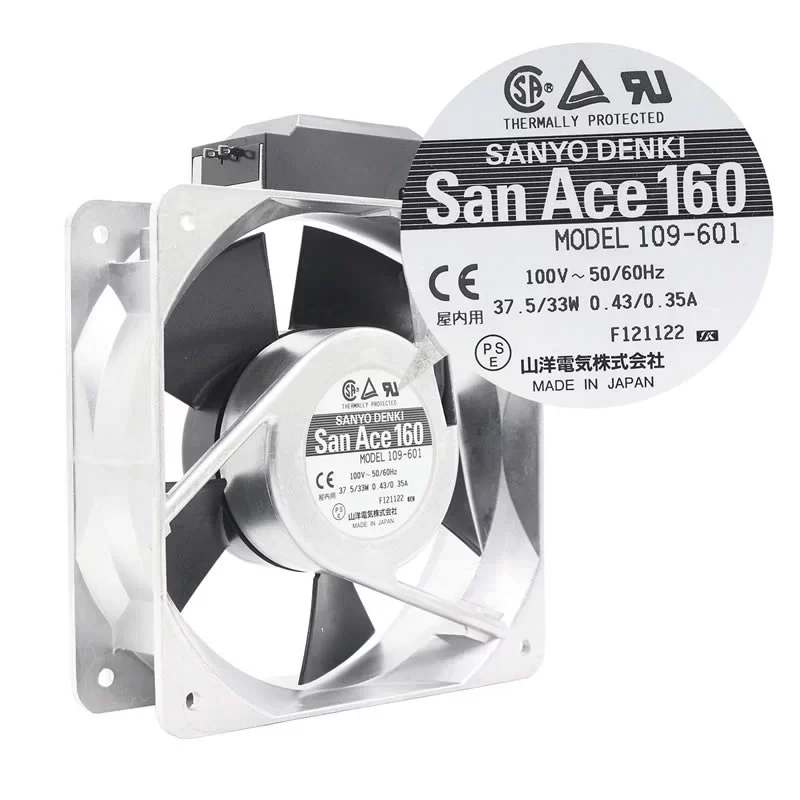

The Sanyo Denki 109-601 is a high-performance 100VAC axial fan with dimensions of 160 x 160 x 51 mm, specifically engineered for robust thermal management in large-scale industrial control panels and heavy-duty electronic equipment. As part of the San Ace 160 series, this cooling solution features a durable aluminum frame and a specialized 5-blade high-efficiency impeller, optimized for maximum aerodynamic throughput and long-term structural stability. It operates at a dual frequency rated speed of 2,850 / 3,350 min⁻¹, delivering a powerful air flow of 254.4 / 300.4 CFM (432 / 510 m³/h) and a static pressure of 0.63 / 0.669 inH₂O (156.8 / 166.6 Pa). Equipped with a precision dual ball bearing system, the 109-601 ensures a reliable service life of 25,000 hours at 60 °C (56,000 hours at 40 °C). This model is characterized by its superior build quality and high airflow capacity, making it a critical component for CNC machines, power supply units, and telecommunications racks requiring high-volume AC cooling.
109-601 Fan Parameters
Manufacturer: Sanyo Denki
Model Number: 109-601
Type: AC Axial Fan
Series: San Ace 160
Dimensions: 160 x 160 x 51 mm
Weight: 1100 g
Frame Material: Aluminum
Impeller Material: Plastics (UL 94V-1)
Bearing Type: Dual Ball Bearing
Number of Blades: 5
Rated Voltage: 100 VAC
Operating Voltage Range: 90 – 110 VAC
Frequency: 50 / 60 Hz
Rated Current: 0.43 / 0.35 A
Locked Rotor Current: 0.72 / 0.7 A
Rated Input Power: 37.5 / 33 W
Rated Speed: 2,850 / 3,350 min⁻¹ (RPM)
Max. Air Flow: 254.4 / 300.4 CFM (432 / 510 m³/h / 7.2 / 8.5 m³/min)
Max. Static Pressure: 0.63 / 0.669 inH₂O (156.8 / 166.6 Pa / 16 / 17 mmH₂O)
Sound Pressure Level: 56 / 60 dB(A)
Termination: Terminals (Faston #110 or equivalent)
Operating Temperature: -30 – +60 °C
Storage Temperature: -30 – +70 °C
Expected Life: 25,000 h (at 60 °C) / 56,000 h (at 40 °C)
Burnout Protection: Impedance Protected
Safety Approvals: UL, CSA, TUV, RoHS
Application
The Sanyo Denki 109-601 AC axial fan is specifically designed for cooling heavy industrial machinery, large CNC controller cabinets, high-wattage power supplies, data center enclosures, and telecommunications hardware requiring high-volume 100V AC ventilation.
