109-643 Sanyo Denki 230V AC Axial Fan

Description

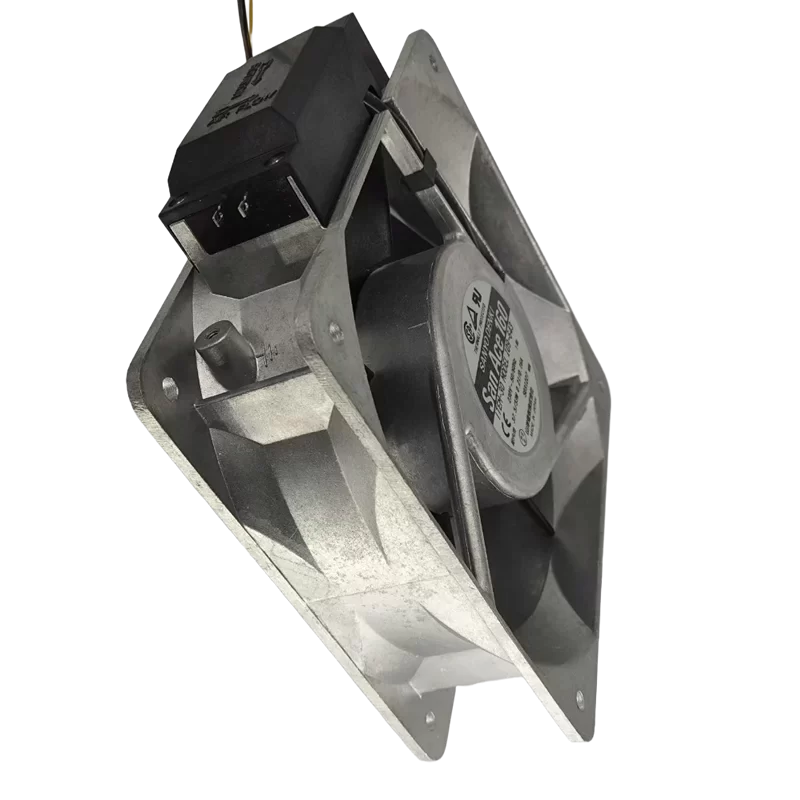

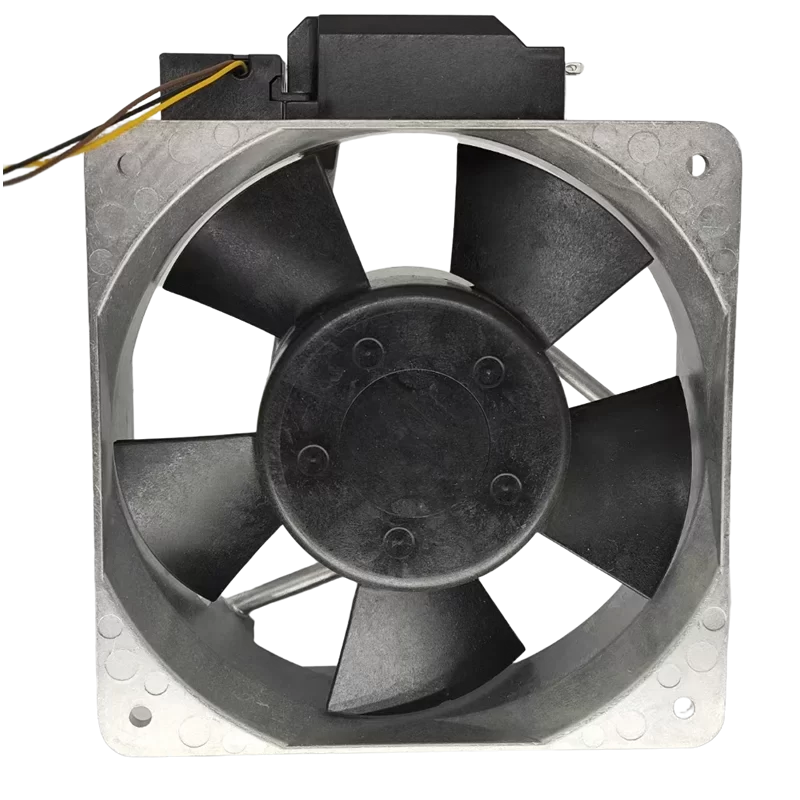

The Sanyo Denki 109-643 is a 230 VAC AC Axial Fan from the San Ace 160 series, measuring 160×160×51 mm. It operates on both 50 Hz and 60 Hz power frequencies, delivering a maximum airflow of 432/510 m3/h and a maximum static pressure of 156.8/166.6 Pa. The fan’s rated speed is 2850/3350 RPM, with a power consumption of 37.5/33 W and a noise level of 56/60 dBA. Featuring an Aluminum frame, Plastic impeller, and a Low-speed sensor, it is built for durability with an expected life of 25000 hours at 60 ∘C. This fan is ideally suited for high-volume air movement in industrial control cabinets and power equipment.

109-643 Fan Parameters
Model: 109-643
Manufacturer: Sanyo Denki
Fan Type: AC Axial Fan
Dimensions: 160×160×51 mm
Nominal Voltage: 230 VAC
Operating Voltage Range: 207 VAC to 253 VAC
Frequency: 50/60 Hz
Rated Speed: 2850/3350 RPM
Airflow (Maximum): 432/510 m3/h
Static Pressure (Maximum): 156.8/166.6 Pa
Rated Current: 0.21/0.16 A
Locked Rotor Current: 0.32/0.31 A
Power Consumption: 37.5/33 W
Noise Rating: 56/60 dBA
Bearing System: Ball Bearing
Frame Material: Aluminum
Blade Material: Plastic
Expected Life (L10): 25000 h at 60 ∘C
Operating Temperature: −10 ∘C to +60 ∘C

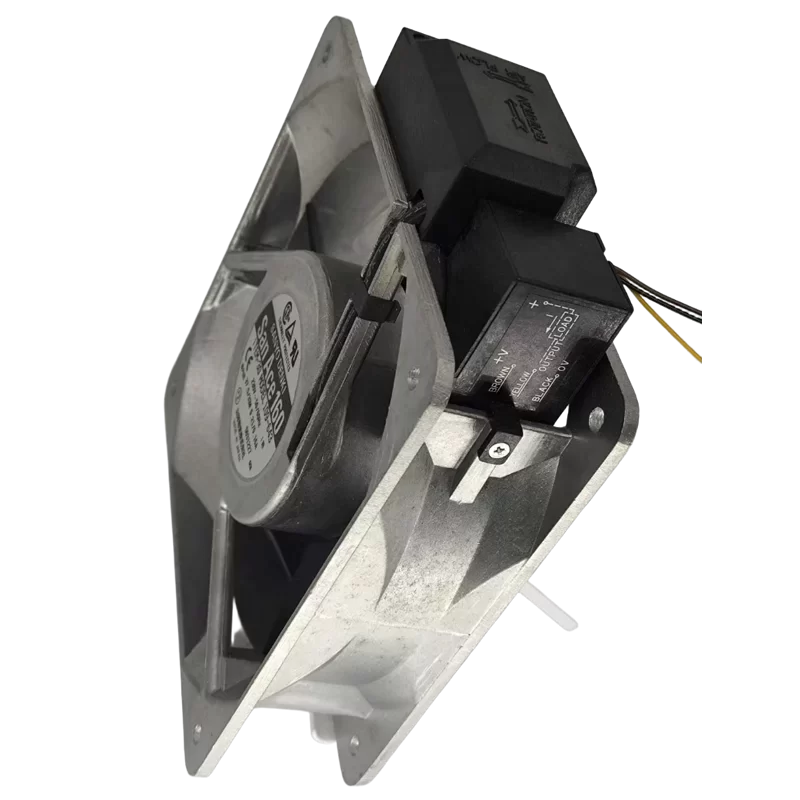

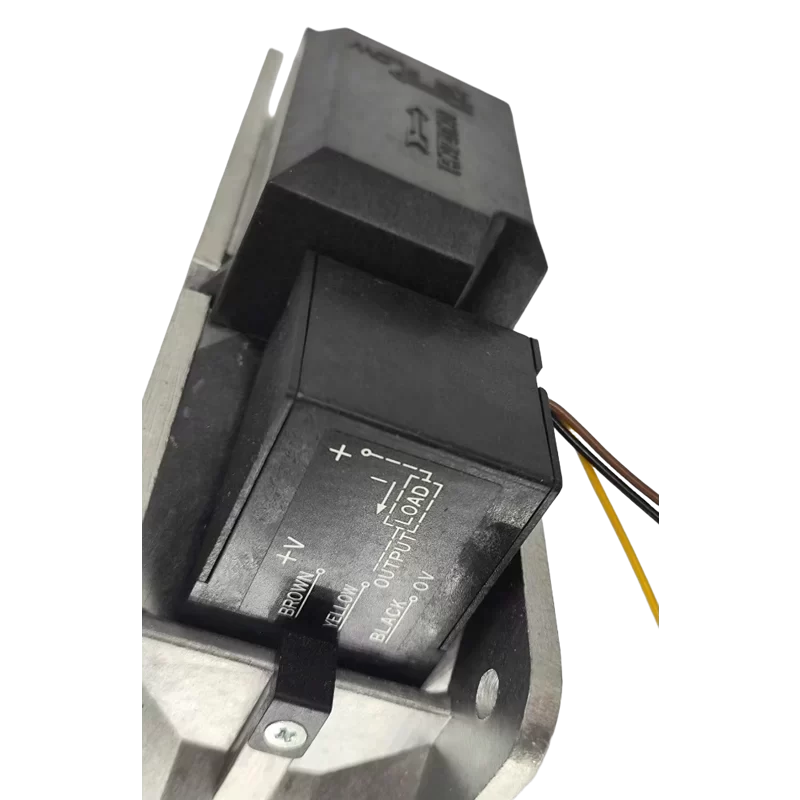

Features: Low-speed sensor
Mass: 1100 g

Application
The 109-643 is a versatile and powerful AC axial fan designed for 230 VAC applications that require high-volume, continuous airflow and operational flexibility across 50 Hz and 60 Hz power grids. It is commonly used for cooling industrial machinery, large electrical control panels, and commercial ventilation systems.
