Description

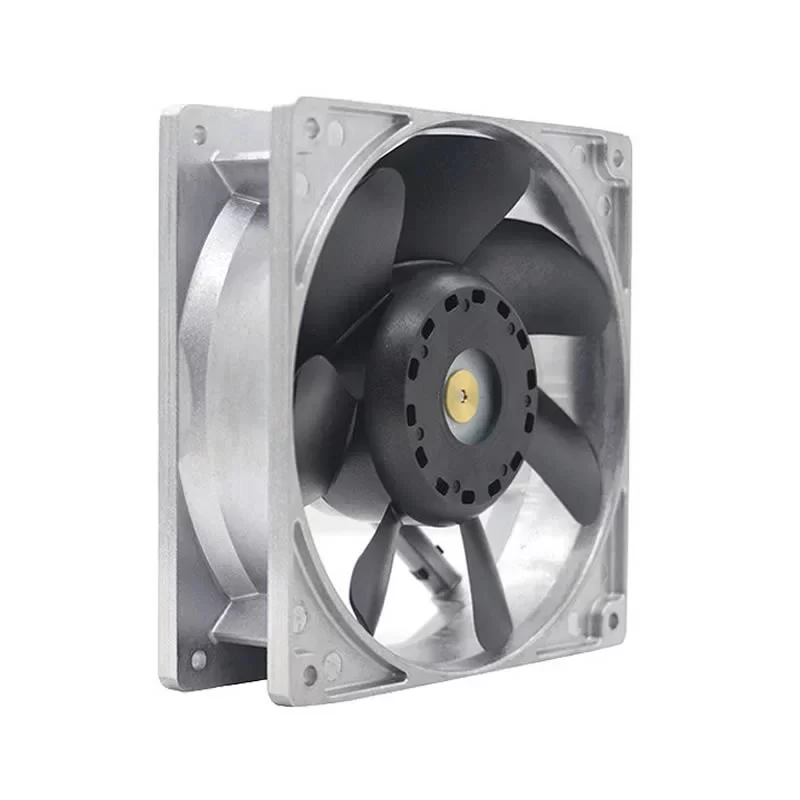

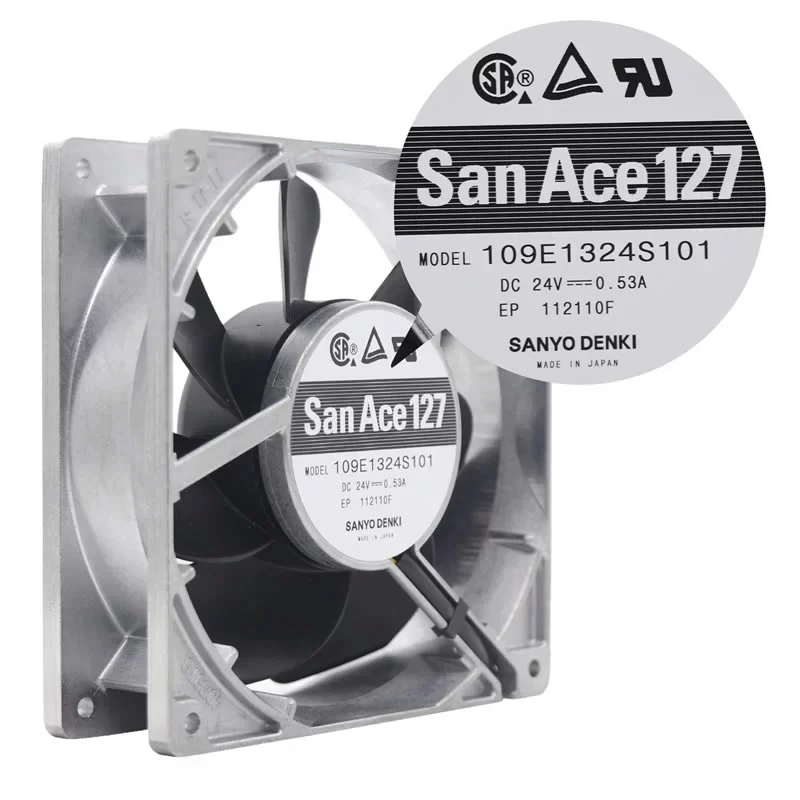

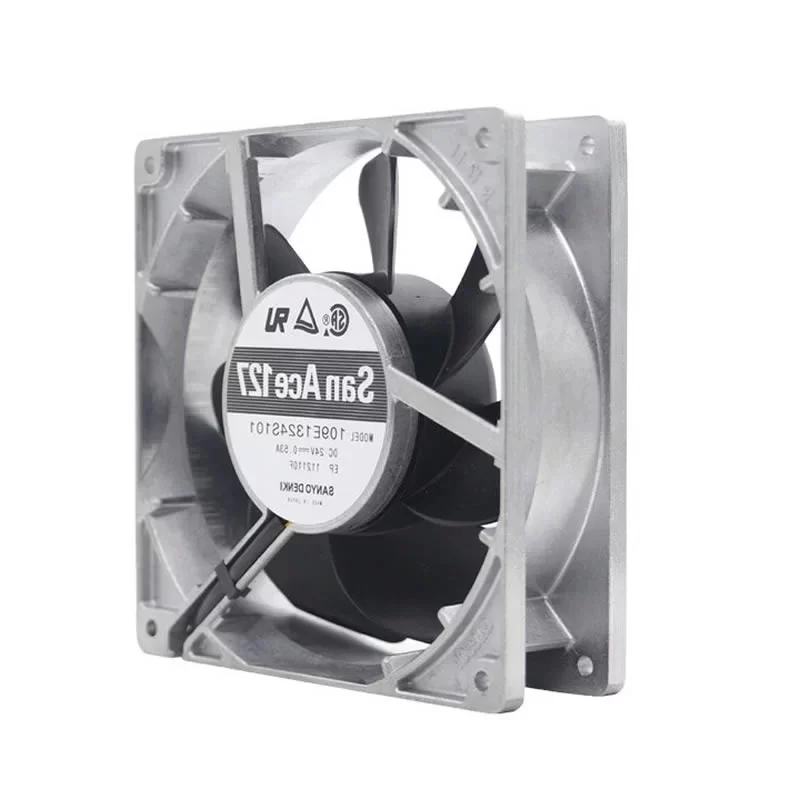

The Sanyo Denki 109E1324S101 is a high-performance 24VDC axial fan with dimensions of 127 x 127 x 38 mm, specifically engineered for reliable thermal management in industrial equipment and server enclosures. As part of the San Ace 127 series, this cooling solution features a robust aluminum frame and a specialized 7-blade high-efficiency impeller, optimized for superior aerodynamic throughput and long-term structural stability. It operates at a rated speed of 3,450 min⁻¹, delivering a maximum air flow of 154.0 CFM (261.6 m³/h) and a static pressure of 0.502 inH₂O (125.0 Pa). Equipped with a precision dual ball bearing system and an integrated speed sensor, the 109E1324S101 ensures a reliable service life of 60,000 hours at 60 °C. This model is characterized by its superior build quality and legacy of reliability, making it a critical component for power supplies, telecommunications racks, and medical diagnostic equipment.
109E1324S101 Fan Parameters
Manufacturer: Sanyo Denki
Model Number: 109E1324S101
Type: DC Axial Fan
Series: San Ace 127
Dimensions: 127 x 127 x 38 mm
Weight: 400.07 g
Frame Material: Aluminum
Impeller Material: Plastics (UL 94V-1)
Bearing Type: Dual Ball Bearing
Number of Blades: 7
Rated Voltage: 24 VDC
Operating Voltage Range: 20.4 – 27.6 VDC
Rated Current: 0.53 A
Rated Input Power: 12.72 W
Rated Speed: 3,450 min⁻¹ (RPM)
Max. Air Flow: 154.0 CFM (261.6 m³/h / 4.36 m³/min)
Max. Static Pressure: 0.502 inH₂O (125.0 Pa / 12.75 mmH₂O)
Sound Pressure Level: 49.0 dB(A)
Termination: 3 Lead Wires (300 mm)
Wire Functions: Red (+), Black (-), Yellow (Tachometer)
Control Interface: Pulse Sensor (Tachometer)
Operating Temperature: -20 – +70 °C
Storage Temperature: -30 – +70 °C
Expected Life: 60,000 h (at 60 °C) / 90,000 h (at 40 °C)
Locked Rotor Protection: Supported
Reverse Polarity Protection: Supported
Safety Approvals: UL, CSA, TUV, RoHS
Application
The Sanyo Denki 109E1324S101 DC axial fan is specifically designed for cooling high-wattage power supplies, industrial automation controllers, telecommunications hardware, medical equipment cabinets, and server storage systems requiring stable and efficient 24V DC ventilation.
