Description

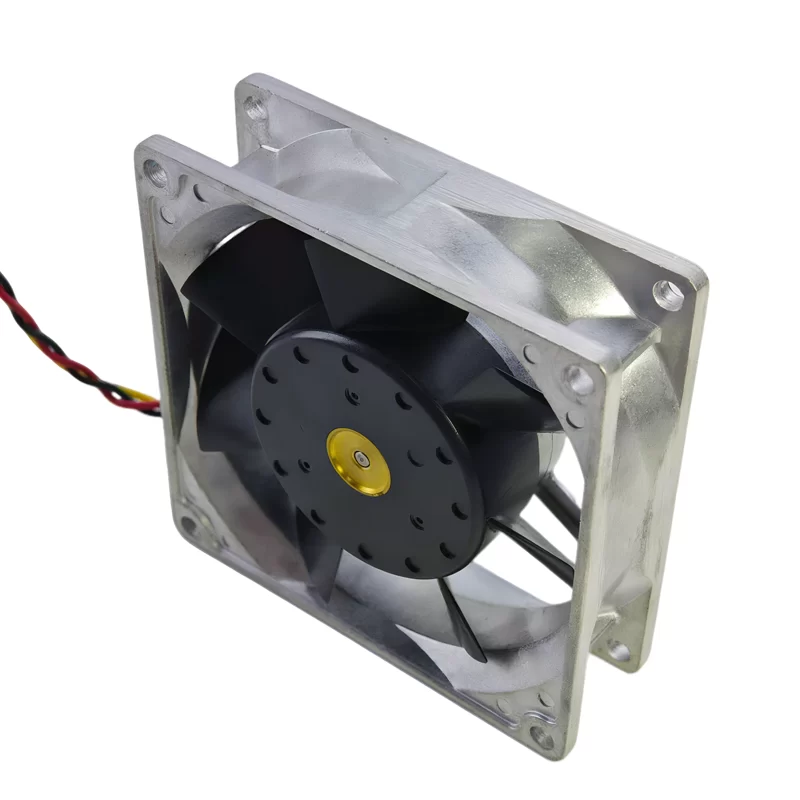

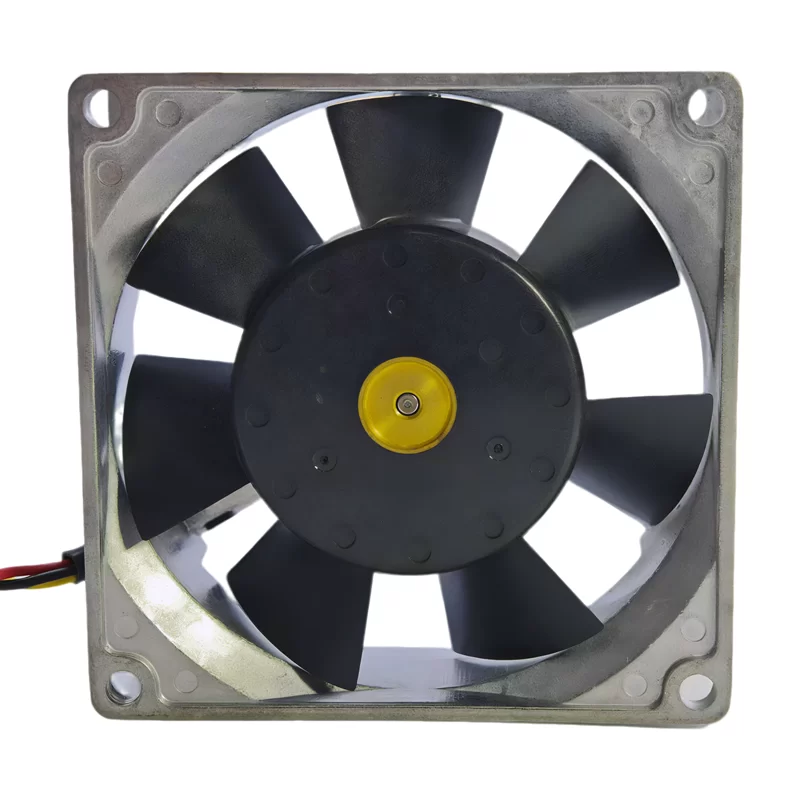

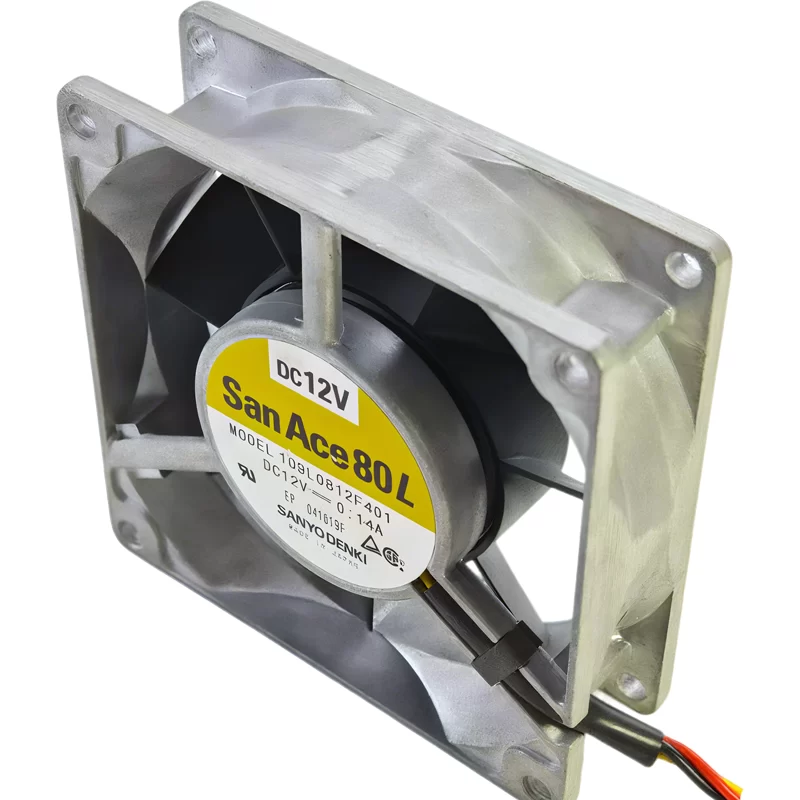

The Sanyo Denki SanAce80L 109L0812F401 is a reliable 12VDC axial fan with dimensions of 80x80x25mm. Designed as a high-temperature fan, it is built with an aluminum frame and durable plastic impeller, making it suitable for demanding environments. It provides 32.8 CFM (55.7 m³/h) of airflow and generates 3.2 mmH₂O (31.4 Pa) of static pressure. Operating at 2700 RPM, the fan consumes 1.68 W of power. Its 3-wire termination provides a dedicated tachometer signal for speed monitoring.
109L0812F401 Fan Parameters
Manufacturer: Sanyo Denki
Series: SanAce80L
Model: 109L0812F401
Fan Type: DC Axial Fan
Dimensions: 80 x 80 x 25 mm
Rated Voltage: 12 VDC
Current Rating: 0.14 A
Power Consumption: 1.68 W
Airflow: 32.8 CFM (55.7 m³/h)
Static Pressure: 3.2 mmH₂O (31.4 Pa)
Speed: 2700 RPM
Noise Level: 29 dB(A)
Bearing Type: Ball Bearing
Termination: 3 Wire Leads
Features: High Temperature Fan, Speed Sensor (Tachometer/FG signal)
Housing Material: Aluminum
Impeller Material: Plastic
Operating Temperature: -10 °C ~ 90 °C
Lifetime @ Temp: 40,000 Hours @ 60 °C
Weight: 150 g
Application: This Sanyo Denki DC axial fan is suitable for use in high-temperature industrial equipment, power supplies, and electronics enclosures.
