Description

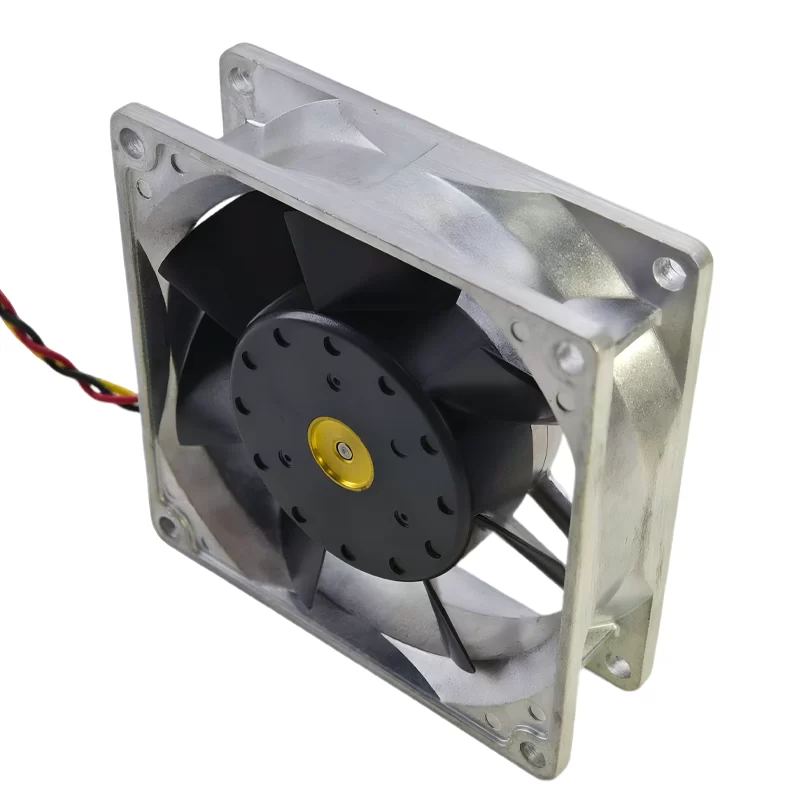

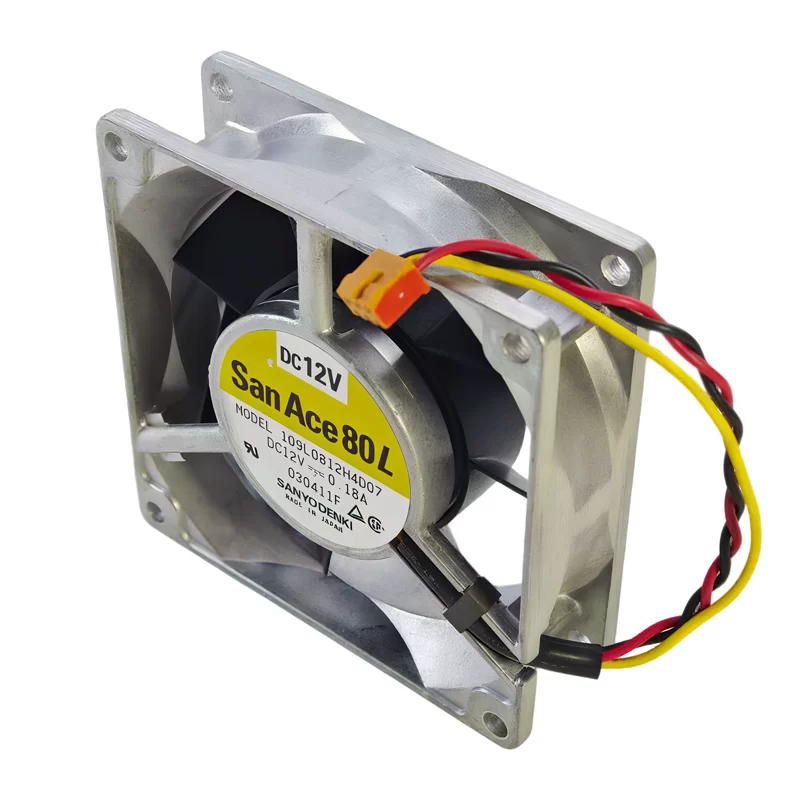

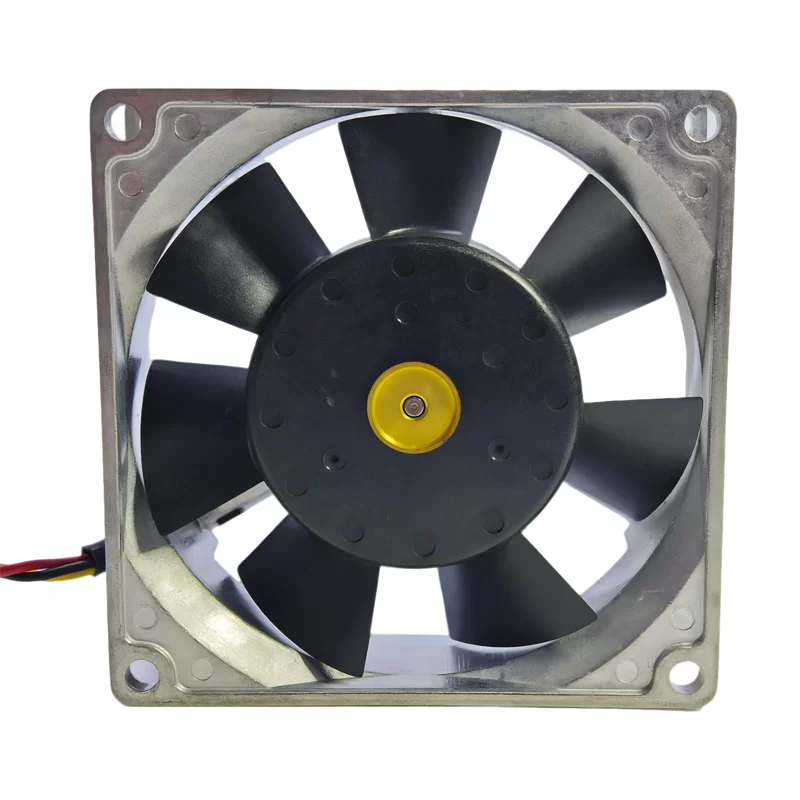

The Sanyo Denki 109L0812H4D07 is a high-performance 12VDC axial fan with dimensions of 80x80x25mm. It is designed for efficient cooling in various electronic devices, providing 44.5CFM (75.6m³/h) of airflow and generating 0.29inchH₂O (72.2Pa) of static pressure. Operating at 4600RPM, the fan consumes 2.16W of power. It is built with a durable aluminum frame and a plastic impeller, and uses ball bearings for a long and reliable lifespan of 50,000 hours. Its 3-wire termination provides a tachometer signal for speed monitoring. It is commonly used for cooling server components, telecommunications equipment, and industrial controls.
109L0812H4D07 Fan Parameters
Manufacturer: Sanyo Denki
Model: 109L0812H4D07
Fan Type: DC Axial Fan
Dimensions: 80 x 80 x 25 mm
Rated Voltage: 12 VDC
Current Rating: 0.18 A
Power Consumption: 2.16 W
Airflow: 44.5 CFM (75.6 m³/h)
Static Pressure: 0.29 inch H₂O (72.2 Pa)
Speed: 4600 RPM
Noise Level: 44 dB(A)
Bearing Type: Ball Bearing
Termination: 3 Wire Leads
Features: Speed Sensor (Tachometer/FG signal)
Housing Material: Aluminum
Impeller Material: Plastic
Operating Temperature: -10 °C ~ 70 °C
Lifetime @ Temp: 50,000 Hours @ 40 °C
Weight: 95 g
Application: This Sanyo Denki DC axial fan is suitable for cooling server components, telecommunications equipment, and industrial controls.
