Description

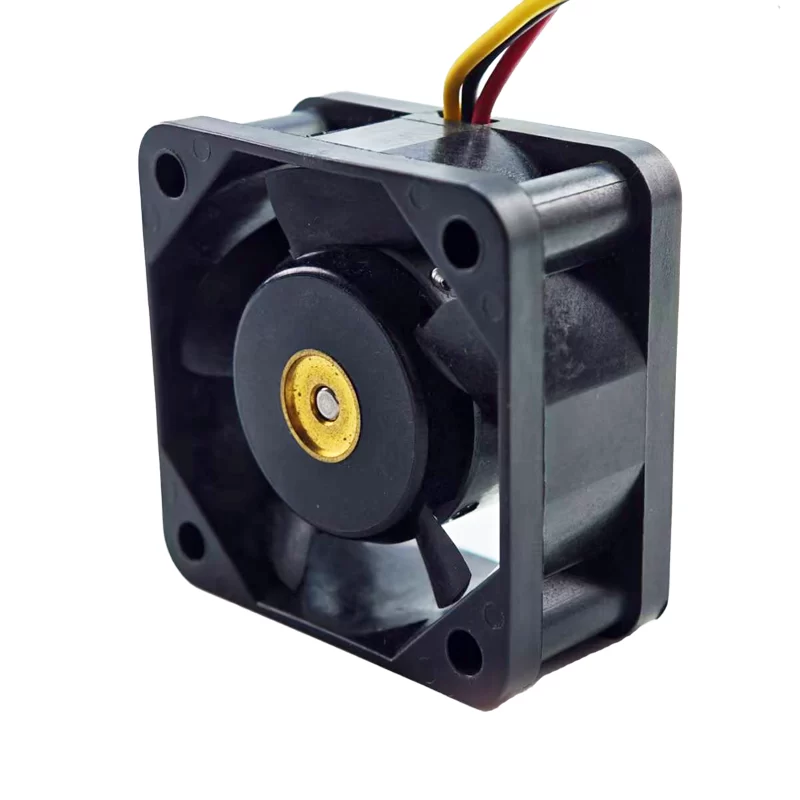

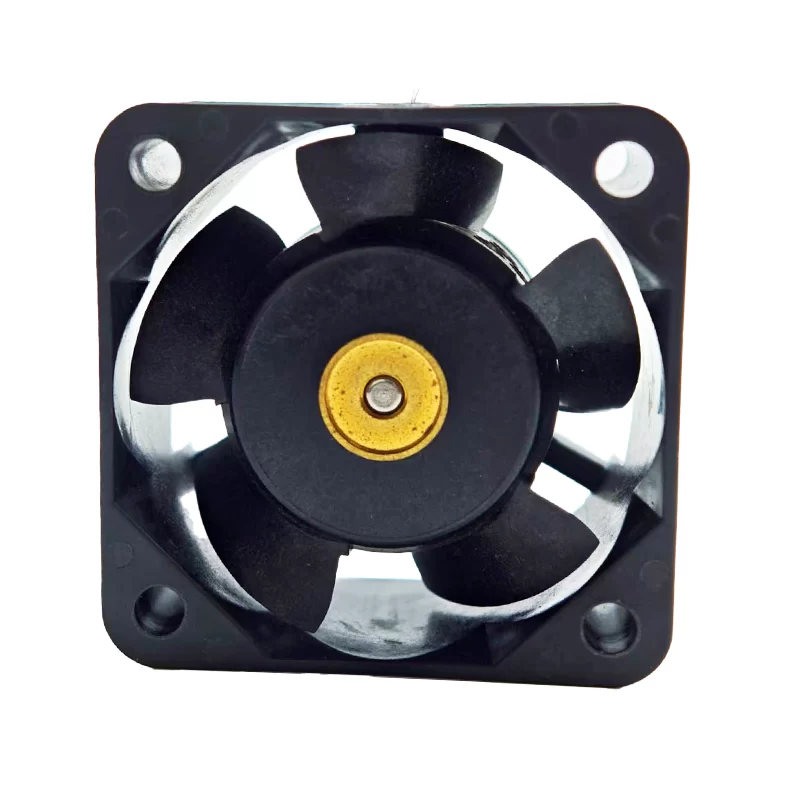

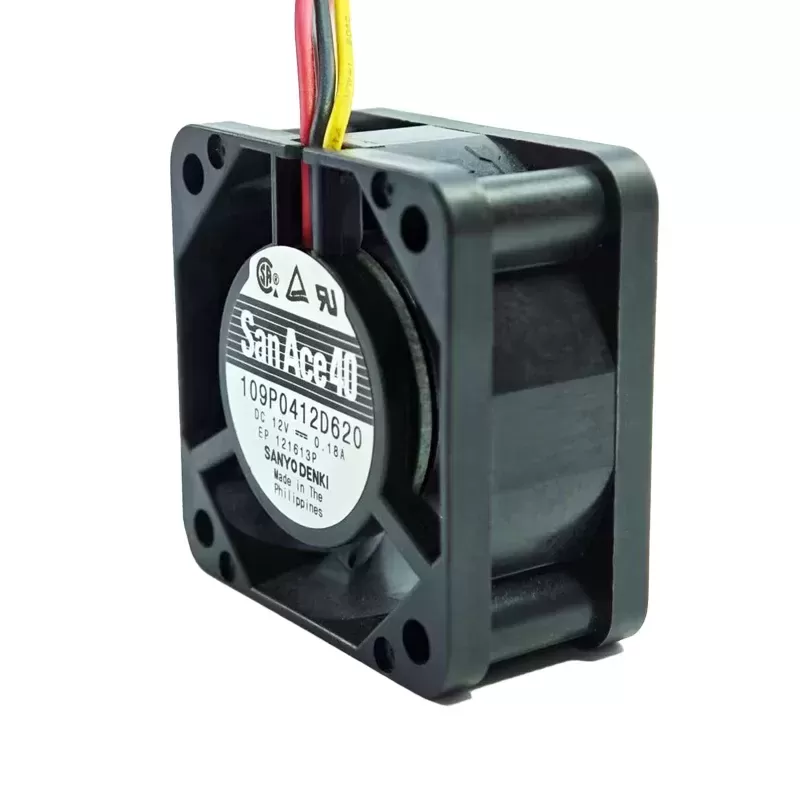

Sanyo’s brand new original authentic 109P0412D620 12V 0.18A 4020 4CM cooling fan
Model Number: 109P0412D620
Manufacturer: Sanyo Denki
Series: San Ace 40
Fan Type: DC Brushless Axial Fan
Dimensions L x H x W: 40 mm x 40 mm x 20 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 7 VDC to 13.8 VDC
Rated Current: 0.18 A
Input Power: 2.16 W
Wiring: 3 Wire Leads
Bearing Type: Ball Bearing
Rotational Speed RPM: 11000 RPM
Maximum Airflow: 10.9 CFM or 0.305 m³/min
Maximum Static Pressure: 0.498 in H2O or 124.0 Pa
Noise Level: 42.0 dB
Frame Material: Plastic
Impeller Blade Material: Plastic
Features: Locked Rotor Sensor
Operating Temperature Range: -20°C to +60°C
Expected Life L10: 60,000 Hours at 60°C
Mass: 45.81 g
The Sanyo Denki 109P0412D620 is a powerful 40x40x20mm DC axial fan from the San Ace 40 series. Operating on 12VDC, it consumes 2.16W of power with a current draw of 0.18A. This fan features durable ball bearings for a long operational life of 60,000 hours at 60°C. It delivers a high airflow of 10.9 CFM at a rapid speed of 11000 RPM, generating substantial static pressure of 0.498 in H2O. With a noise level of 42.0 dB, it’s designed for applications where high performance in a small footprint is critical. The 3-wire termination includes a locked rotor sensor for essential system monitoring, making it a reliable choice for cooling dense electronics, 1U server applications, and other equipment with limited space that demands effective heat dissipation.
