Description

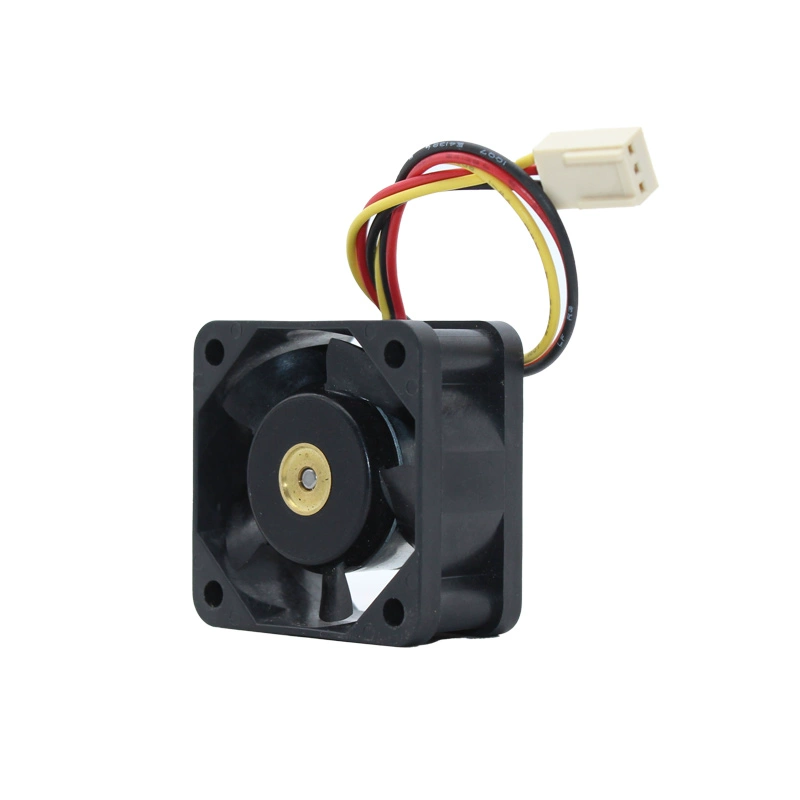

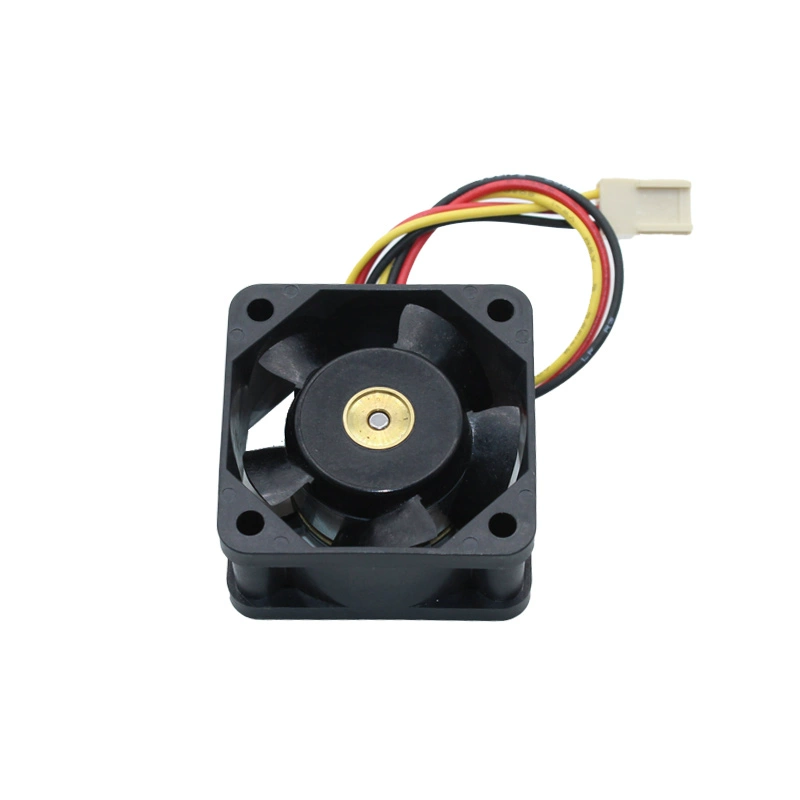

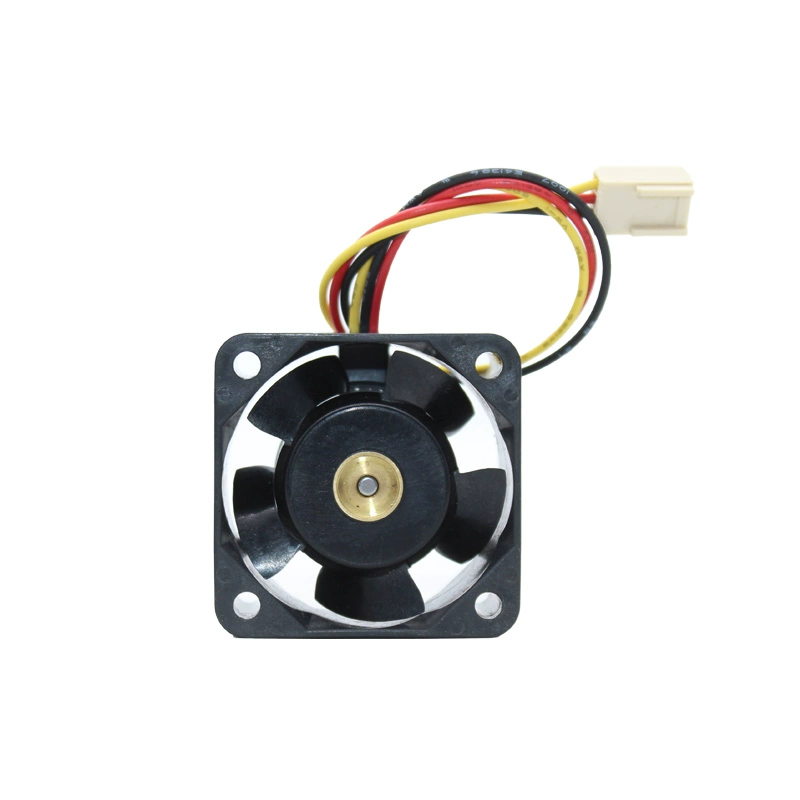

The Sanyo Denki 109P0412F601 is a compact 12V DC axial cooling fan from Sanyo Denki, measuring 40mm x 40mm x 20mm. Operating at a low rated current of 0.09A (1.08W), this fan is designed to provide effective cooling in space-constrained applications. It achieves a speed of 6500 RPM, delivering 6.5 CFM of airflow and a static pressure of 0.181 inch-H2O, while maintaining a low noise level of 28 dBA. Equipped with durable ball bearings, it ensures a long operational life of 60,000 hours at 60°C. The fan utilizes 3-wire leads, providing a pulse sensor for monitoring its operational status, making it a reliable solution for various electronic devices, small enclosures, and other systems where efficient and quiet cooling is required.
Model Number: 109P0412F601
Manufacturer: Sanyo Denki
Type: DC Axial Cooling Fan
Dimensions: 40mm x 40mm x 20mm
Rated Voltage: 12V DC
Rated Current: 0.09A
Rated Power: 1.08W
Speed: 6500 RPM
Airflow: 6.5 CFM / 0.183 m³/min
Static Pressure: 0.181 inch-H2O / 45.1 Pa
Noise Level: 28 dBA
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 60,000 hours at 60°C
Operating Temperature: -20°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Pulse Sensor, Locked Rotor Burnout Protection, Reverse Polarity Protection
