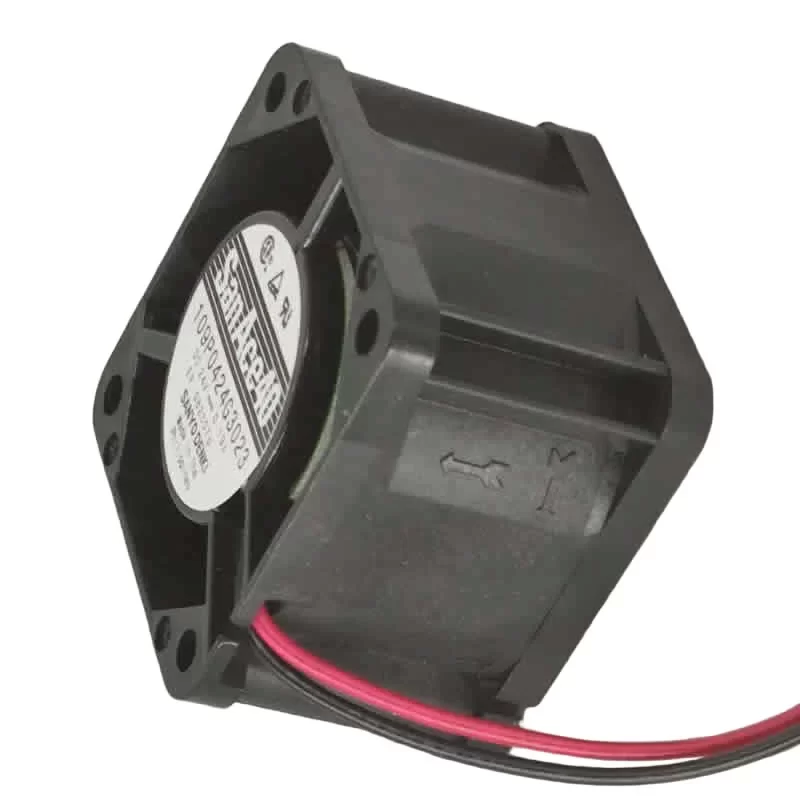

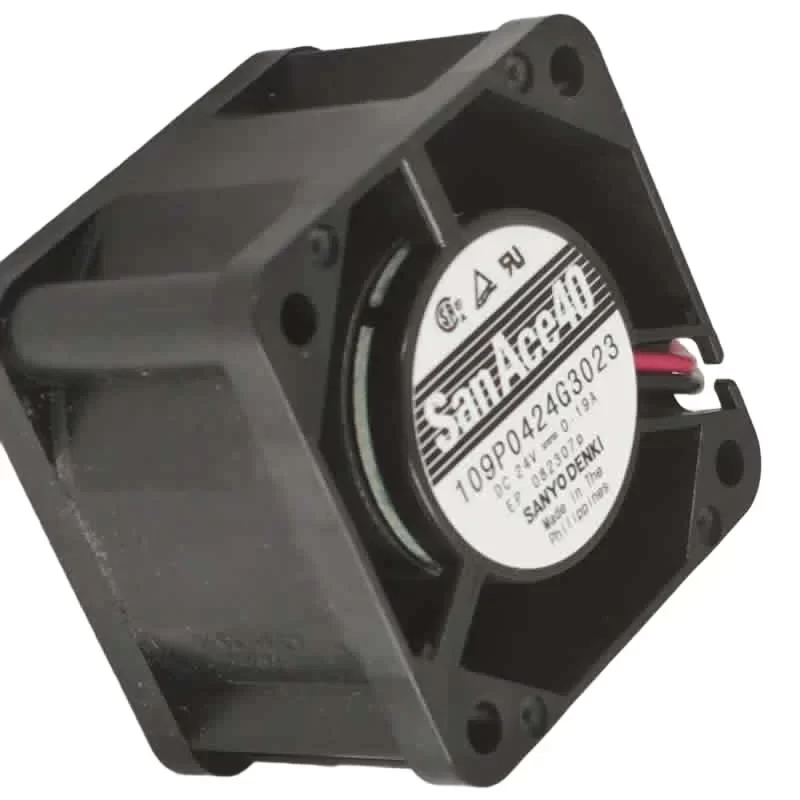

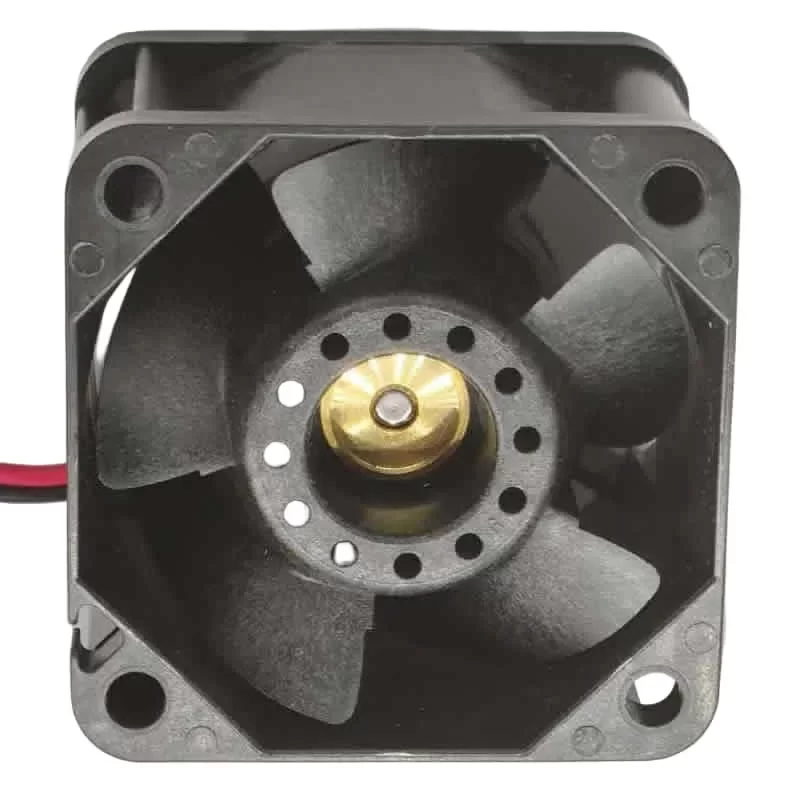

109P0424G3023 Sanyo Denki 24V DC Axial Fan

Description

The Sanyo Denki 109P0424G3023 is a high-performance DC Axial Fan with dimensions of 40×40×28 mm. As part of the San Ace 40 series, this compact fan operates on 24 VDC with a rated current of 0.19 A and a power consumption of 4.56 W. It delivers an impressive maximum airflow of 25.2 m3/h (∼14.8 CFM), a high static pressure of 179 Pa, and achieves a high rotational speed of 11500 RPM with a noise level of 42 dBA. It utilizes a reliable Ball Bearing system. The fan is designed for cooling high-density networking equipment, compact servers, and industrial electronics that require maximum airflow in confined spaces.

109P0424G3023 Fan Parameters
Model: 109P0424G3023
Manufacturer: Sanyo Denki
Fan Type: DC Axial Fan
Dimensions: 40×40×28 mm
Nominal Voltage: 24 VDC
Operating Voltage Range: 12 VDC to 26.4 VDC
Rated Current: 0.19 A
Power Consumption: 4.56 W
Rated Speed: 11500 RPM
Airflow (Maximum): 25.2 m3/h
Static Pressure (Maximum): 179 Pa
Noise Rating: 42 dBA
Bearing System: Ball Bearing
Termination: 2 Wire Leads
Frame Material: Plastic
Blade Material: Plastic
Expected Life (L10): 40000 h at 60 ∘C
Operating Temperature: −20 ∘C to +60 ∘C
Mass: 52.16 g

Application
The 109P0424G3023 is a high-speed, high-static-pressure cooling solution for 24 VDC systems. It is ideally suited for applications that face high airflow resistance, such as tightly packed 1U rack-mount equipment, high-performance computing (HPC) systems, network infrastructure, and other devices where a compact form factor and superior cooling performance are essential.
